Description

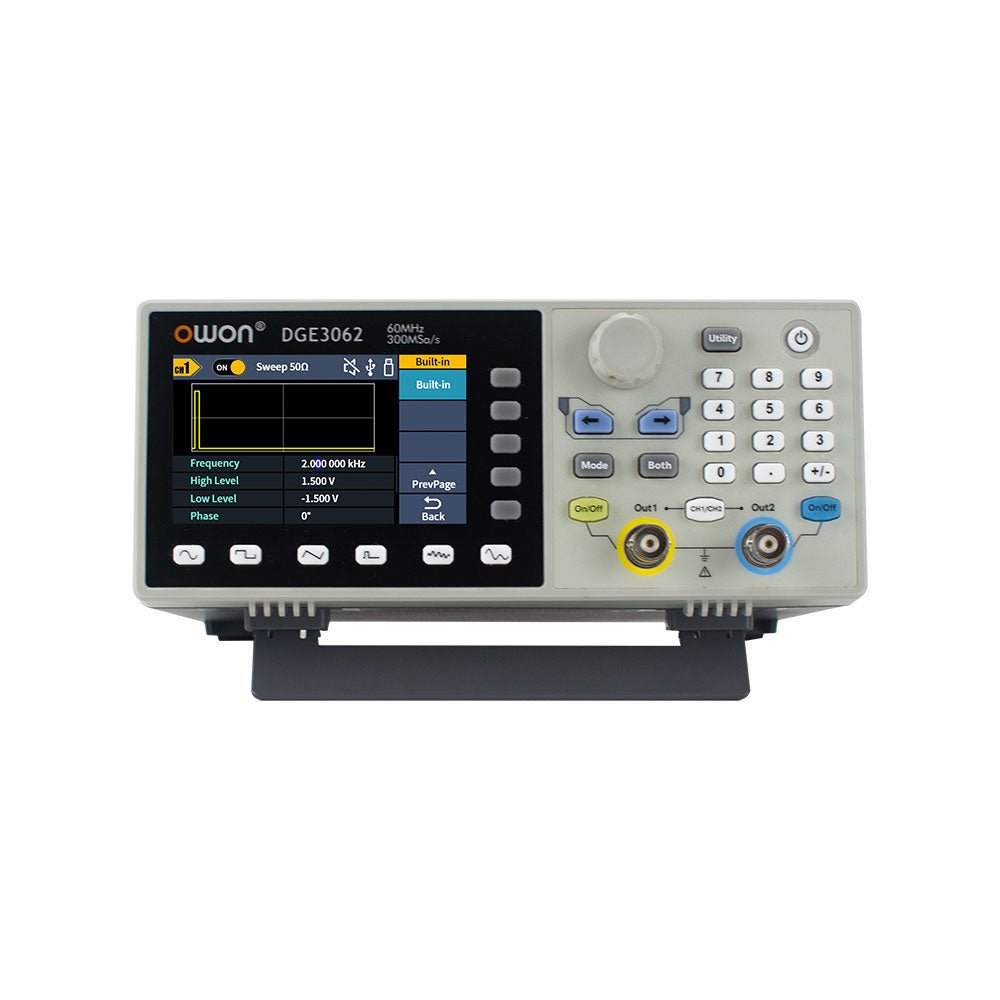

The OWON DGE3062 is a 14-bit function generator with a bandwidth of 60 MHz. It has 5 basic waveforms, 160 built-in arbitrary waveforms and the following comprehensive modulation functions: AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst.
Features
- Max. 60 MHz frequency output, 300 MSa/s Sample rate
- 14 bits Vertical Resolution, 100K Arb waveform length
- Comprehensive waveform output: 5 basic waveforms, and 160 built-in arbitrary waveforms
- Comprehensive modulation functions: AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst
- SCPI and LabVIEW supported
- 3.6 inch LCD (480 x 272 pixels)
Specifications
| Channel |
2 |
| Frequency Output |
60 MHz |
| Sample Rate |
300 MSa/s |
| Vertical Resolution |
14 bits |
| Waveform |
|---|
| Standard Waveform |
Sine, square, pulse, ramp, noise |
| Arbitrary Waveform |
Exponential rise, exponential fall, sin(x)/x, step wave, and others, total 160 built-in waveforms |
| Frequency (resolution 1 μHz) |
|---|
| Sine |
1 μHz-60 MHz |
| Square |
1 μHz ~ 20 MHz |
| Pulse |
1 μHz ~ 20 MHz |
| Ramp |
1 μHz ~ 2 MHz |
| Noise |
20 MHz (-3 dB, typical) |
| Arbitrary Waveform |
1 μHz ~10 MHz |
| Arbitrary |
|---|
| Waveform Length |
2 points – 100K points |
| Sample Rate |
300 MSa/s |
| Amplitude |
|---|
| Into 50Ω load |
1mVpp ~ 10Vpp (≤10Hz), 1mVpp ~ 5Vpp (≤60 MHz) |
| DC Offset Range (AD+DC |
±(10 Vpk – Amplitude Vpp/2) high resistance
±(5 Vpk – Amplitude Vpp/2) 50 Ω |
| DC offset resolution |
1 mV or 4 digits |
| Load Impedance |
50 Ω (typical) |
| DC offset Accuracy |
±(1% of |setting| + 1 mV + amplitude Vpp * 0.5%) |
| Modulation |
|---|
| Type |
AM,FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst |
| Frequency Counter |
|---|
| Function |
Frequency, period |
| Frequency Range |
100 MHz ~ 100 MHz |
| Frequency Resolution |
6 digits |
| Input/Output |
|---|
| Display |
3.6” LCD |
| Input mode |
External modulation input, external trigger input, external reference clock input/output |
| Communication Interface |
USB Host, USB Device |
| Mechanical specifications |
|---|
| Dimensions (W x H x D) |
200 x 92 x 157 mm |
| Weight |
0.8 kg |
Included
- 1x OWÒN DGE3062
- 1x Power Cord
- 1x Quick Guide
- 1x USB Cable
- 1x Q9 Cable
- 1x BNC to Alligator Clip
