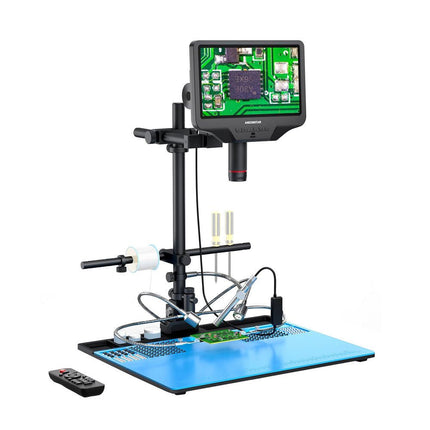

Andonstar AD409 Max-ES 10.1" HDMI Digital Microscope (incl. Endoscope)

  • BrandAndonstar

Description

The Andonstar AD409 Max-ES boosts a high-quality metal lens and a unique UV filter design. Crafted from top-tier industrial-grade materials, it delivers unmatched precision and durability, ensuring a reliable product experience. The UV filter positioned in front of the metal lens blocks soldering heat, smoke, and dust, safeguarding the lens and making it perfect for soldering and maintenance professionals.

The AD409 Max-ES features an oversized Max station (46 x 37 x 47.5 cm) and an advanced tool set, expanding the soldering station area by 370%. This upgrade meets the demands of professional soldering tasks and provides ample workspace for larger projects.

The easy-to-use tool holder keeps tools within reach, ensuring they are always accessible. Additionally, the soldering helping hands with rotatable clamps simplify soldering and repair tasks, enhancing efficiency and convenience.

The endoscope offers an all-around 360° view. This allows for clear observation of components from all sides and inside pipes, eliminating blind spots and ensuring thorough inspections.

Features

  • High-quality Metal Lens and Unique UV Filter Design
  • New Max station
  • Easy-to-use Tool Holder and Soldering Helping Hands
  • Microscope with Endoscope All-around View 360°
  • Professional HDMI Digital Microscope supports Multiple Output Methods
  • 8 Levels adjustable LEDs
  • Convenient Wireless Remote Control

Specifications

Screen size 10.1 inch (1280x800)
Image sensor 4 MP
Video output UHD 2880x2160 (24fps)
FHD 1920x1080 (60fps/30fps)
HD 1280x720 (120fps)
Video format MP4
Magnification Up to 300 times (27 inch HDMI monitor)
Photo resolution Max. 24 MP (5600x4200)
Photo format JPG
Focus range Min. 5 cm
Frame Rate Max. 120fps
Video interface HDMI
Storage microSD card (up to 64 GB)
PC support Windows, PC software with measurement
Mobile phone, tablet terminal support Support WiFi connection and measurement
Power source 5 V DC
Light source 2 LEDs with the stand
Endoscope Yes
Stand size 46 x 37 x 47.5 cm (18.1 x 14.6 x 18.7")

Included

  • 1x Andonstar AD409 Max-ES Digital Microscope
  • 1x Endoscope
  • 1x Stand with 2 LEDs
  • 1x UV filter (already assembled in the lens)
  • 1x Soldering mat
  • 1x Beam
  • 1x Column
  • 1x Tool holder
  • 1x Soldering Helping Hands
  • 1x Power adapter
  • 1x Power cable
  • 1x HDMI cable
  • 1x USB cable
  • 1x IR remote
  • 1x Manual

Downloads


Product form

The Andonstar AD409 Max-ES boosts a high-quality metal lens and a unique UV filter design. Crafted from top-tier industrial-grade materials,... Read more

Out of stock

€ 499,00€ 349,00 incl. VAT
Members identical

    Details

    SKU: 20852
    EAN: 020852

    Description

    The Andonstar AD409 Max-ES boosts a high-quality metal lens and a unique UV filter design. Crafted from top-tier industrial-grade materials, it delivers unmatched precision and durability, ensuring a reliable product experience. The UV filter positioned in front of the metal lens blocks soldering heat, smoke, and dust, safeguarding the lens and making it perfect for soldering and maintenance professionals.

    The AD409 Max-ES features an oversized Max station (46 x 37 x 47.5 cm) and an advanced tool set, expanding the soldering station area by 370%. This upgrade meets the demands of professional soldering tasks and provides ample workspace for larger projects.

    The easy-to-use tool holder keeps tools within reach, ensuring they are always accessible. Additionally, the soldering helping hands with rotatable clamps simplify soldering and repair tasks, enhancing efficiency and convenience.

    The endoscope offers an all-around 360° view. This allows for clear observation of components from all sides and inside pipes, eliminating blind spots and ensuring thorough inspections.

    Features

    • High-quality Metal Lens and Unique UV Filter Design
    • New Max station
    • Easy-to-use Tool Holder and Soldering Helping Hands
    • Microscope with Endoscope All-around View 360°
    • Professional HDMI Digital Microscope supports Multiple Output Methods
    • 8 Levels adjustable LEDs
    • Convenient Wireless Remote Control

    Specifications

    Screen size 10.1 inch (1280x800)
    Image sensor 4 MP
    Video output UHD 2880x2160 (24fps)
    FHD 1920x1080 (60fps/30fps)
    HD 1280x720 (120fps)
    Video format MP4
    Magnification Up to 300 times (27 inch HDMI monitor)
    Photo resolution Max. 24 MP (5600x4200)
    Photo format JPG
    Focus range Min. 5 cm
    Frame Rate Max. 120fps
    Video interface HDMI
    Storage microSD card (up to 64 GB)
    PC support Windows, PC software with measurement
    Mobile phone, tablet terminal support Support WiFi connection and measurement
    Power source 5 V DC
    Light source 2 LEDs with the stand
    Endoscope Yes
    Stand size 46 x 37 x 47.5 cm (18.1 x 14.6 x 18.7")

    Included

    • 1x Andonstar AD409 Max-ES Digital Microscope
    • 1x Endoscope
    • 1x Stand with 2 LEDs
    • 1x UV filter (already assembled in the lens)
    • 1x Soldering mat
    • 1x Beam
    • 1x Column
    • 1x Tool holder
    • 1x Soldering Helping Hands
    • 1x Power adapter
    • 1x Power cable
    • 1x HDMI cable
    • 1x USB cable
    • 1x IR remote
    • 1x Manual

    Downloads


    Customer Reviews

    Based on 2 reviews
    0%
    (0)
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    M
    Michel M.
    Bon outil

    Très pratique et rend bien service. Une étoile en moins because il n'y a que Windows comme logiciel utilisable. Vive Linux !

    V
    V.I.
    Brauchbarer Arbeitsplatz

    An sich wären auch fünf Sterne gerechtfertigt, doch und was aber schade ist, dass die "soldering helping hands" leider zu schwach ausgefallen sind, um brauchbar zu sein. Hier kann man aber andere verwenden, wenn man statt der Gummiplatte eine magnetische Platte vorsieht, auf der man dann stärker wirkende Halter verwendet. Die Gummimatte kann dann dennoch, verkleinert, zur Unterstützung der Bestückung Verwendung finden. Klasse ist die Einbindung des Endoskops an Display. Die Magnetplatte ermöglicht auch die Benutzung von magn. Leiterplattenhaltern und zum Messen mit PCBite SP10-Sonden und Oszilloskop-Sonde. Die Schnittstellen (USB, WiFi) ergänzen den gelungenen Arbeitsplatz.
