Spectrum Analyzers

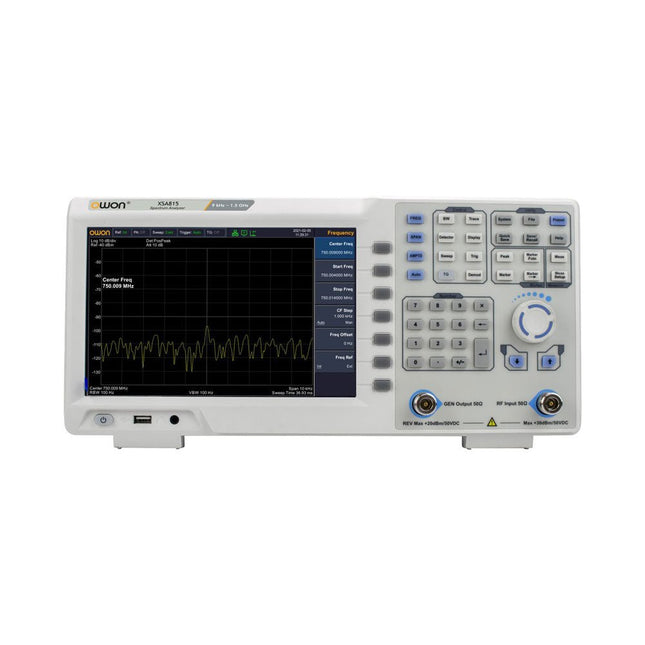

The OWON XSA815-TG 9 kHz-1.5 GHz is a cost effective spectrum analyzer with tracking generator included and a frequency resolutions of 1 Hz. Features Frequency Range from 9 kHz to 1.500009 GHz 9-inch display 9 kHz to 1 MHz -95 dBm Displayed Average Noise Level, 1 MHz to 500 MHz 140 dBm (Typical), <-130 dBm Phase Noise -10 kHz < -80 dBc/Hz 100 kHz < -100 dBc/Hz 1 MHz < -115 dBc/Hz Resolution Bandwidth (-3 dB): 1 Hz to 1 MHz, in 1-3-5-10 sequence Tracking Generator Kit: 100 kHz to 1.500009 GHz Specifications Frequency Range 9 kHz to 500.009 MHz Frequency Resolution 1 Hz Frequency Span 9 kHz to 1.500009 GHz Span Range 0 Hz, 100 Hz to max frequency of instrument Span Uncertainty ± span / (sweep points-1) SSB Phase Noise (20°C to 30°C, fc=1 GHz) Carrier Offset 10 kHz < -80 dBc/Hz | 100 kHz < -100 dBc/Hz | 1 MHz < -115 dBc/Hz Resolution Bandwidth (-3 dB) 1 Hz to 1 MHz, in 1-3-5-10 sequence RBW Accuracy < 5% typical Resolution Filter Shape Factor (60 dB: 3 dB) <5 typical Video Bandwidth (-3 dB) 10 Hz to 1 MHz, in 1-3-5-10 sequence Amplitude measurement range DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off DANL to +20 dBm, 10 MHz to 1.5 GHz, Preamp Off Reference Level -80 dBm to +30 dBm, 0.01dB by step Preamp 20 dB, nominal, 100 kHz to 1.5 GHz Input Attenuator 0 to 40 dB, 1 dB by step Display Average Noise Level Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20°C to 30°C, input impedance = 50 Ω) Preamp Off 9 kHz to 1 MHz -95 dBm (Typical), <-88 dBm Preamp Off 1 MHz to 500 MHz -140 dBm (Typical), <-130 dBm Preamp On 100 kHz to 1 MHz -135 dBm (Typical), <-128 dBm Preamp On 1 MHz to 500 MHz -160 dBm (Typical),<-150 dBm Tracking Generator (optional) Frequency Range 100 kHz to 1.500009 GHz Output power level range -40 dBm to 0 dBm Output level resolution 1 dB Output flatness Relative to 50 MHz | ±3 dB Tracking generator spurious Harmonic spurious -30 dBc (Tracking generator output power -10 dBm) Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm) Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm) Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm) Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm) Dimensions 375 x 185 x 120 mm Weight 3.7 kg Included 1x XSA815-TG 1x 220 V AC power cord 1x USB Cable 1x Quickstart guide Downloads Quick Guide Specifications

Read more less

The OWON XSA1015-TG Spectrum Analyzer offers a variety of features that will make it an indispensable part of your lab. Features Frequency Range from 9 kHz up to 1.5 GHz 150 dBm Displayed Average Noise Level Phase Noise -82dBc/Hz @1 Gz and offset at 10 KHz Total Amplitude Accuracy <1.5dB 10 Hz Minimum Resolution Bandwidth (RBW) EMI Pre-compliance Test Kit 1.5 GHz Tracking Generator Kit 10.4 inches display Specifications Frequency Specification Frequency Range 9kHz - 1.5 GHz Resolution 1Hz Frequency span Range 0 Hz, 100 Hz to maximum frequency of device Accuracy ± span /（swept points -1） Internal reference Reference frequency 10.000000 MHz Temperature stability < 2.5 ppm (15 ℃ to 35 ℃） Aging rate < 1 ppm / year Bandwidth Resolution bandwidth (-3 dB) 10 Hz to 500 kHz (in 1 to 10 sequence), 1 MHz, 3 MHz Video bandwidth (-3 dB) 10 Hz to 3 MHz Amplitude Specification Displayed average noise level（DANL） Input attenuation 0 dB，1Hz resolution bandwidth Preamp off 1 MHz ~ 10 MHz - 140 dBm（nominated）10 MHz ~ 1GHz - 140 dBm（nominated）1 GHz ~ 1.5 GHz - 138 dBm (nominated) Preamp on <-82 dBc / Hz @ 10 kHz offset<-100 dBc / Hz @ 100 kHz offset<-110 dBc / Hz @ 1 MHz offset Level display range Log scale coordinate 1 dB ~ 255 dB Linear scale coordinate 0 to reference level level unit dBm, dBuW, dBpW, dBmV, dBuV, W, V Points 201 ~ 1001 Number of traces 5 Detectors Positive-peak, negative-peak, sample, normal, RMS Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average Accuracy Input Attenuation Switching Uncertainty 20℃ ~ 30℃, fc=50 MHz, Preamplifier Off, 20dB RF attenuation, input signal 0~39 dB±0.5 dB Absolute Amplitude Uncertainty 20℃ ~ 30℃, fc=50 MHz, RBW=1 kHz, VBW=1 kHz, peak detector, 20 dB RF attenuationPreamplifier Off ±0.4 dB, input signal= -20 dBmPreamplifier On ±0.5 dB, input signal= -40 dBm Uncertainty input signal range 0 dbm ~ -50 dbm±1.5 dB VSWR input 10 dB RF attenuation，1 MHz ~ 1.5GHz<1.5, nominal Tracking generator Output frequency range 100 kHz ~ 1.5 GHz Output power level range -30 dBm ~ 0 dBm Output power level resolution 1dB Output flatness +/-3 dB Maximum safe reverse level Average total power: 30 dBm, DC: ±50 VDC Inputs and Outputs Front panel RF input connector 50 Ω，N-type female Front panel track generator output 50 Ω，N-type female 10 M reference input 50 Ω，N-type female Communication port USB Host, USB Device, LAN, earphone port, and VGA General technical specification Display TFT LCD, 10.4 inches Weight 5.0 kg Dimension (W x H x D) 421 x 221 x 115 mm Downloads User manual Quick guide Datasheet PC software

Read more less

The OWON XSA810-TG 9 kHz-1 GHz is a cost-effective spectrum analyzer with a tracking generator included and a frequency resolution of 1 Hz. Specifications Frequency Frequency Range 9 kHz to 1 GHz Frequency Resolution 1 Hz Frequency Span Range 0 Hz, 100 Hz to the max. frequency range Aging Rate <1 ppm/year Frequency Counter Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz Resolution Bandwidth (-3 dB) 1 Hz to 1 MHz @ 1 - 10 step, 1 MHz, 3 MHz Video Bandwidth (-3 dB) 1 Hz to 1 MHz Phase Noise (20 ℃ to 30 ℃, c = 1 GHz) Phase noise <-80 dBc/Hz @ 10 kHz offset <-100dBc/Hz@ 100 kHz offset <-115dBc/Hz@ 1 MHz-500MHz offset Level Unit dBm, dBuW, dBpW, dBmV, dBuV, W, V Trace Detectors positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak Trace Functions clear write, max hold, min hold, view, blank, average, trace math VSWR 300 kHz to 1.5 GHz when input > 10 dB nominal when input < 1.5dB Display 9' 1280x800 pixels TFT LCD Communication Interface USB host, USB device, LAN, earphone port, HDMI

Read more less

The Siglent SSA3032X Plus spectrum analyzer is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance. Features Spectrum Analyzer Frequency Range from 9 kHz to 3.2 GHz –161 dBm/Hz Displayed Average Noise Level (Typ.) –98 dBc/Hz. @ 10 kHz Offset Phase Noise (1 GHz, Typ.) Level Measurement Uncertainty <0.7 dB (Typ.) 1 Hz Minimum Resolution Bandwidth (RBW) Preamplifier (Std.) Tracking Generator (incl. free of charge) Analog and Digital Signal Modulation Analysis Mode (opt.) Reflection Measurement Kit (opt.) EMI Filter and Quasi-Peak Detector Kit (opt.) Advanced Measurement Kit (opt.) 10.1-inch Multi-Touch Screen , Mouse and Keyboard supported Web Browser Remote Control on PC and Mobile Terminals and File Operation Specifications SSA3015X Plus SSA3021X Plus SSA3032X Plus SSA3075X Plus Frequency Range 9 kHz ~ 1.5 GHz 9 kHz ~ 2.1 GHz 9 kHz ~ 3.2 GHz 9 kHz ~ 7.5 GHz Resolution Bandwidth 1 Hz ~ 1 MHz 1 Hz ~ 1 MHz 1 Hz ~ 1 MHz 1 Hz ~ 3 MHz Phase Noise <–99 dBc/Hz <–98 dBc/Hz <–98 dBc/Hz <–98 dBc/Hz Total Amplitude Accuracy <1.2 dB <0.7 dB <0.7 dB <0.7 dB Display Average Noise Level –156 dBm/Hz –161 dBm/Hz –161 dBm/Hz –165 dBm/Hz Included Siglent SSA3032X Plus spectrum analyzer USB cable Power cord Quick start guide Downloads Datasheet Manual Documentation Firmware

Read more less

The Siglent SSA3015X Plus spectrum analyzer is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 1.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance. Features Spectrum Analyzer Frequency Range from 9 kHz to 1.5 GHz –156 dBm/Hz Displayed Average Noise Level (Typ.) –99 dBc/Hz. @ 10 kHz Offset Phase Noise (1 GHz, Typ.) Level Measurement Uncertainty <1.2 dB (Typ.) 1 Hz Minimum Resolution Bandwidth (RBW) Preamplifier (Std.) Tracking Generator (incl. free of charge) Analog and Digital Signal Modulation Analysis Mode (opt.) Reflection Measurement Kit (opt.) EMI Filter and Quasi-Peak Detector Kit (opt.) Advanced Measurement Kit (opt.) 10.1-inch Multi-Touch Screen , Mouse and Keyboard supported Web Browser Remote Control on PC and Mobile Terminals and File Operation Specifications SSA3015X Plus SSA3021X Plus SSA3032X Plus SSA3075X Plus Frequency Range 9 kHz ~ 1.5 GHz 9 kHz ~ 2.1 GHz 9 kHz ~ 3.2 GHz 9 kHz ~ 7.5 GHz Resolution Bandwidth 1 Hz ~ 1 MHz 1 Hz ~ 1 MHz 1 Hz ~ 1 MHz 1 Hz ~ 3 MHz Phase Noise <–99 dBc/Hz <–98 dBc/Hz <–98 dBc/Hz <–98 dBc/Hz Total Amplitude Accuracy <1.2 dB <0.7 dB <0.7 dB <0.7 dB Display Average Noise Level –156 dBm/Hz –161 dBm/Hz –161 dBm/Hz –165 dBm/Hz Included Siglent SSA3015X Plus spectrum analyzer USB cable Power cord Quick start guide Downloads Datasheet Manual Documentation Firmware
