With these jumper wires (length: 20 cm) you can connect a Raspberry Pi or an Arduino with breadboards. Each cable consists of 40 individual wires/pins which can also be separated. Included 1x 40-pins female to female 1x 40-pins male to male 1x 40-pins male to female

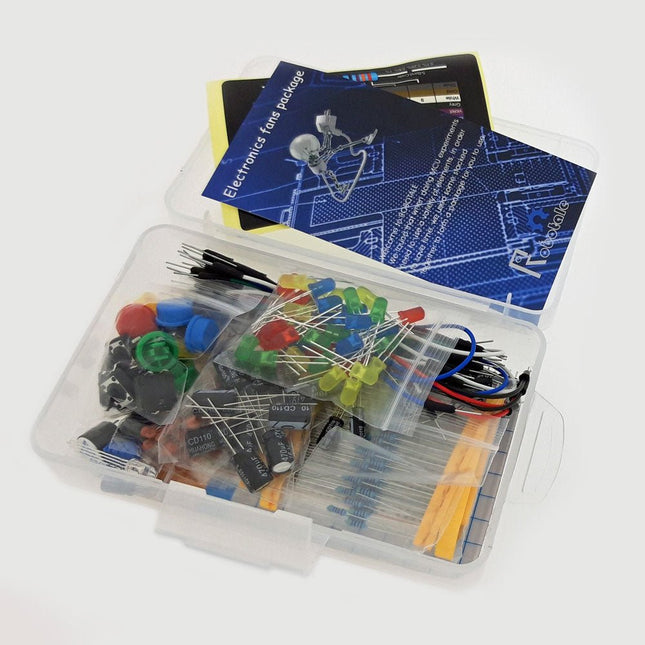

This comprehensive starter kit contains a wide range of important electronic components. From resistors and capacitors to LEDs, switches, buzzers and a breadboard with jumper wires – this kit contains everything you need to get started with your electronics projects.
Contents
1x High Quality Retail Box
10x 1/4W 1% 100R Resistor
10x 1/4W 1% 220R Resistor
10x 1/4W 1% 330R Resistor
10x 1/4W 1% 1K Resistor
10x 1/4W 1% 10K Resistor
10x 1/4W 1% 100K Resistor
10x 1/4W 1% 4.7K Resistor
10x 1/4W 1% 47K Resistor
10x 100PF Ceramic Capacitor
10x 10NF Ceramic Capacitor
10x 100NF Ceramic Capacitor
10x 22PF Ceramic Capacitor
10x 10UF aluminum electrolytic capacitor
10x 470UF aluminum electrolytic capacitor
10x Red LED
10x Green LED
10x Yellow LED
10x Blue LED
8x 12x12x7.3 Switch
2x Red Cap
2x Yellow Cap
2x Green Cap
2x Blue Cap
1x 10K Precision Potentiometer
2x RGB LED
1x Active Buzzer
1x Passive Buzzer
1x Pin Header 1x40
1x Resistor Card
1x 400pts Breadboard
1x 30pcs/pack Breadboard Jumper Wires Set

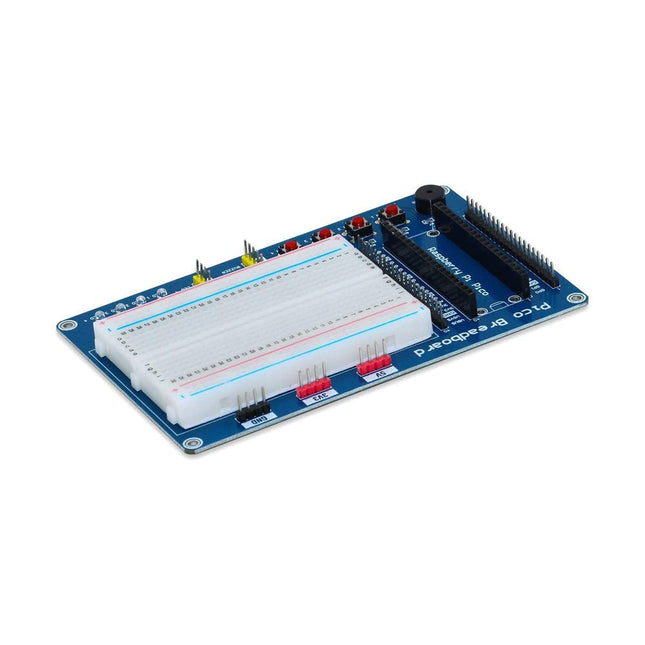

Raspberry Pi Pico Breadboard Kit helps the user to configure GPIO of Raspberry Pi Pico for use with external devices.Raspberry Pi Pico Breadboard Kit is a multi-purpose Kit that consists of a “400 points half-size breadboard” on top, a Programmable Buzzer, 4 programmable LEDs, 4 push buttons, and dedicated 5 V, 3V3, and GND pins at a single place. SB Components developed Raspberry Pi Pico Breadboard Kit with advanced features like independently controllable LEDs, Switches, a 400 points half-size breadboard that helps the user to prototype their projects with Raspberry Pi Pico in an efficient way.Raspberry Pi Pico Breadboard Kit can be interfaced with Raspberry Pi Pico from which a user can run electronics experiments, prototypes, mini robots, games, interact with Linux-ready Raspberry Pi, Exploration of circuits, etc. One can also connect external components with the breadboard provided on the top of the Raspberry Pi Pico Breadboard Kit.Features
Four independent controlled LEDs
Four independent controlled push buttons
Compatible with Pico
A 400 points half size breadboard
Programmable buzzer
Dedicated 5 V, 3V3 and Gnd pins for easy use
Specifications
Operating voltage
3.3 VDC
Communication interface
GPIO
Dimensions
85 x 133 mm
Applications
Electrical experiments
Prototypes
Mini robots
Games
Exploration of circuits
Downloads
Manual
Example codes
Circuit diagram
GitHub
Included
1x Pico Breadboard Kit
5x Male to Male Jumper Wires
5x Female to Female Jumper Wires
5x Male to female Jumper Wires
Note: Raspberry Pi Pico is not included.

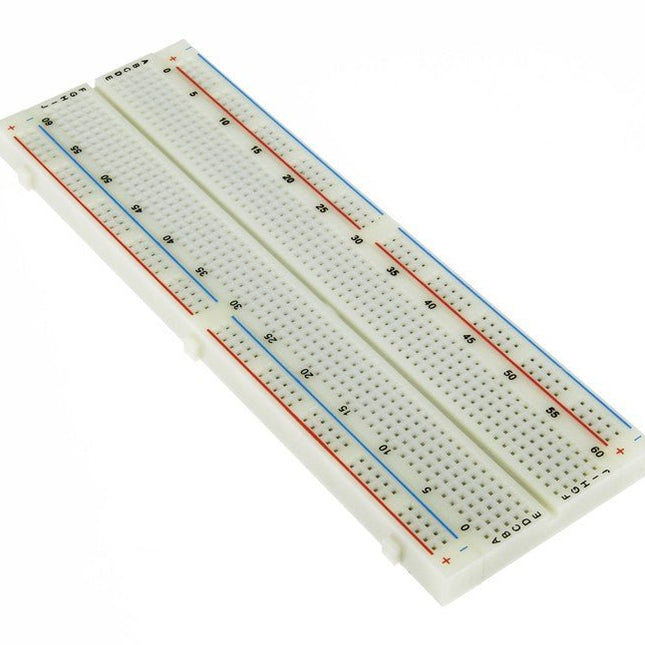

This 830 tie-point breadboard is a must-have for prototyping and electronics experiments. It offers a solderless solution for building and testing circuits quickly and easily. With a standard layout, it includes two power rails on each side and 630 tie points in the main grid area.
Specifications
Terminal strip, tie-point 630
Distribution strips, tie-point 200
Solderless breadboard (MB-102)
Wire size: Suitable for 20-29 AWG wires, jumper wire of 0.8 mm diameter
Material: ABS. Transparent material
Brand new and high quality
They allow electronic components to be interconnected in an almost endless number of ways to produce working circuits
Because no soldering is required, modifying or revising the circuits can be done quite easily
The breadboard consists of a set of formed metal sockets inserted into a durable plastic housing
Phosphor bronze nickel plated spring clips
Adhesive sheet on the bottom of the board
Dimensions: 165 x 53 x 8.5 mm

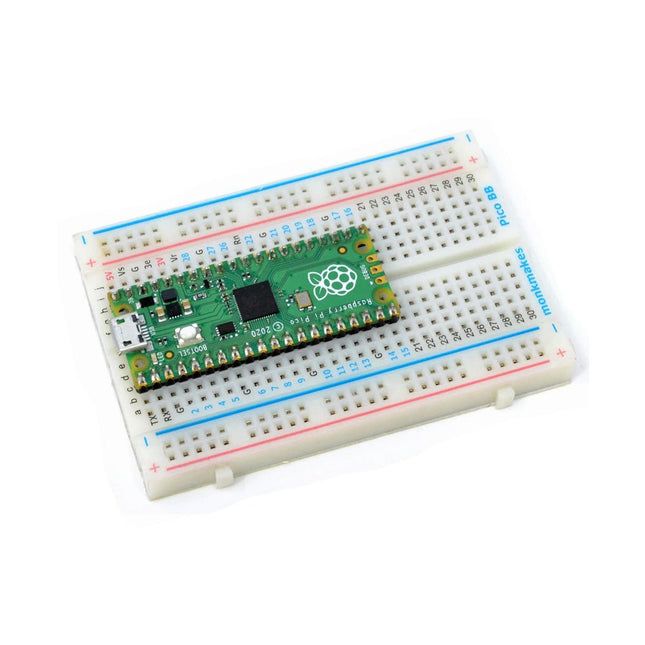

Solderless breadboard labelled for the Raspberry Pi Pico It can be tricky to work out which pin is which when the Raspberry Pi Pico is attached to solderless breadboard. The MonkMakes Breadboard for Pico solves this problem by labelling the Pico pins on the 400 point solderless breadboard. Features 400 tie point 2 power busses Size: 8.2 x 5.5 x 0.85 cm Self-adhesive back

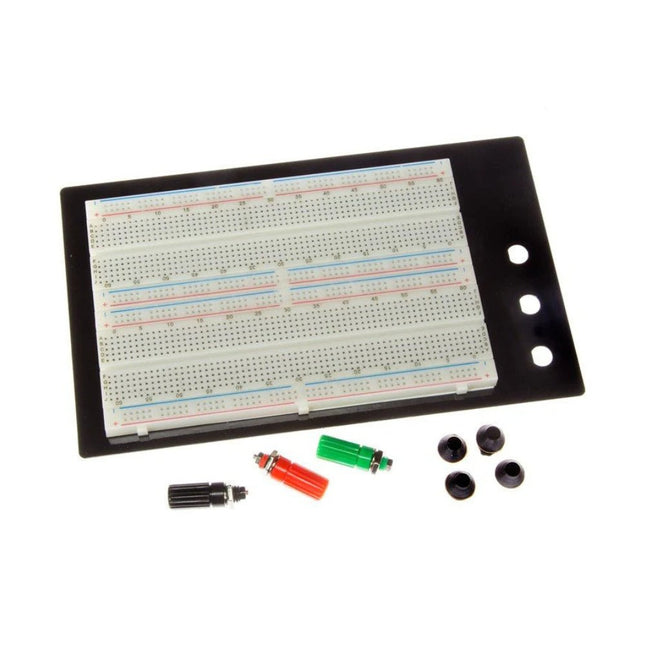

The ZY-204 is a versatile solderless breadboard with a total of 1660 tie points, perfect for building and testing electronic circuits without soldering.
It includes 2 terminal strips with 1260 tie-points and 4 distribution strips with 400 tie-points, providing ample space for complex circuit designs. 3 binding posts allow for easy connection to external power supplies.
Features
2 Terminal Strips 1260 Tie-points
4 Distribution Strips 400 Tie-points
3 Binding Posts
Black aluminum plate
Colored coordinates for easy component placement
Dimensions: 215 x 130 mm

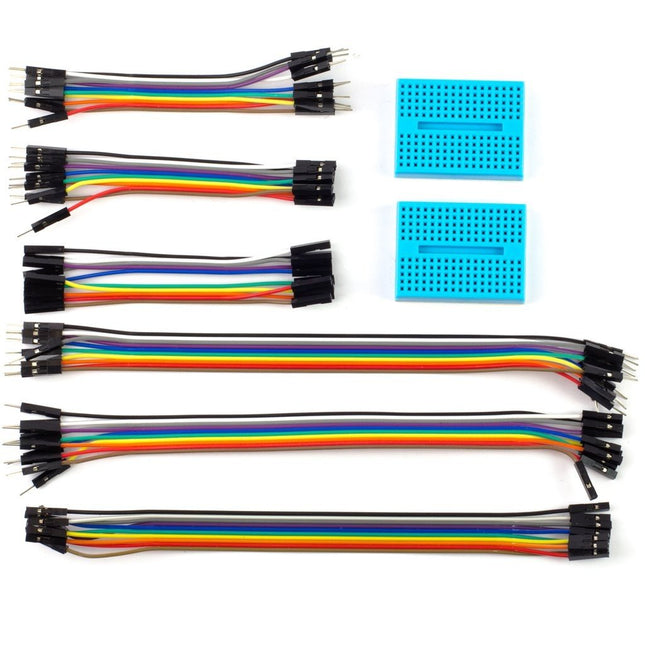

The breadboards can hold your components and circuits and connect them with your circuit board. Includes: 2x mini breadboards 10x short female to female jumper jerky 10x short female to male jumper jerky 10x short male to male jumper jerky 10x long female to female jumper jerky 10x long female to male jumper jerky 10x long male to male jumper jerky
STEMTera is a programmable breadboard module, compatible with Arduino Uno. It has two microcontrollers built in: ATmega328P and ATmega32U2 and the I/O (40 mA per pin) are accessible without cabling.
The underside of the board (112 x 80 x 17 mm) is compatible with LEGO.
Specifications
Pin-to-pin compatible with Arduino Uno
Mechanically compatible with LEGO blocks
Two microcontrollers (41 I/O of which 9 as PWM)
USB interface with ATmega32U2 using LUFA (Lightweight USB Framework for AVRs) for keyboard, joystick, MIDI, etc...
Programming with the Arduino IDE (micro-USB)
Reset button, 4 LEDs (including TX, RX, Power), power connector
Power via micro-USB or 7...20 V DC on socket 5,5 x 2,1 mm (+ center)
Multiple programming environments:
Atmel Studio
Arduino IDE
AVR-GCC
AVR-GCC with LUFA library
Scratch
etc.
Microcontrollers
ATmega328P:
14 pins of I/O including 6 PWM
6 analog inputs (10 bit ADC)
I²C, SPI and serial
Interrupt controller
ATmega32U2:
21 pins of I/O
Flash Memory: 32 KB
SRAM: 2 KB
EEPROM: 1 KB
Clock: 16 MHz
Downloads
Beginner's Guide

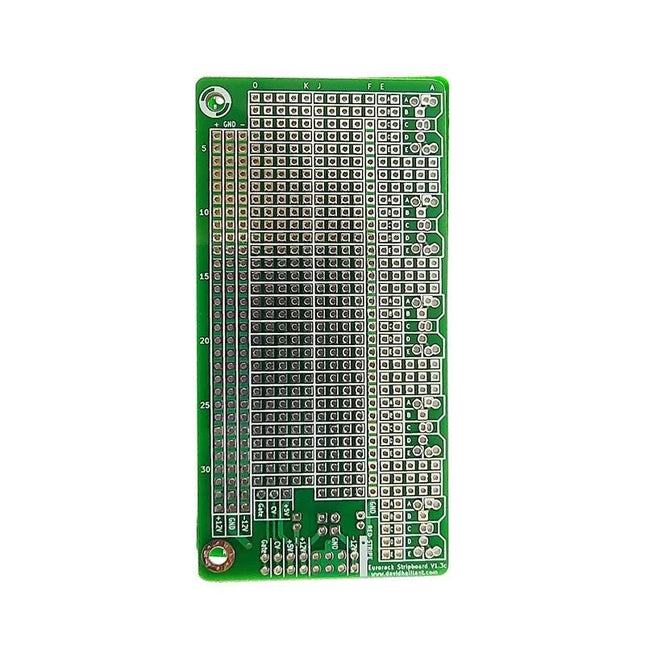

The Eurorack Stripboard is the most convenient way to build a simple DIY Eurorack synthesizer module. It works like a standard protoboard, but with specific additions for the Eurorack format. You can also use the Stripboard with the 4HP Front Panel.
You can place up to 5 potentiometers or 5 jack connectors on the dedicated locations. The potentiometers can be any of 9 or 16 mm types, Alpha PKN160 for example. The Jack connectors are Cliff S6/BB mono style.
With the Eurorack power supply interface, it's extremely easy to connect either a 16-pin or a 10-pin Eurorack power connector.
The clear and detailed silkscreen labels indicate where the different voltages are located on the PCB. You can also add 2 filtering capacitors and 2 protection diodes.
How to connect jacks and potentiometers
The jack connectors are Cliff CL1384. They use the strips A, B, D and E.
A and B are switched open when the male jack connector is inserted. D and E are the contacts to the male connector.
E is Tip (the signal)
and D is Ring (usually the 0V reference, often designated as “ground”).
Note that Cliff jacks are insulated from the panel.
The potentiometers are 9 mm (2.5 mm pin pitch) or 16 mm (5 mm pin pitch). Alpha 9 mm are a good choice. They align pretty nicely with Cliff jacks on the front panel. They connect to strips B, C and D.
B is Counter Clock Wise pole.
D is Clock Wise pole.
and C is Wiper pole.
Dimensions
The PCB is 100 mm high and 50 mm wide. Thus, the depth for the Eurorack module will be 50 mm behind the panel.
Downloads
Documentation
DIY Layout Creator
