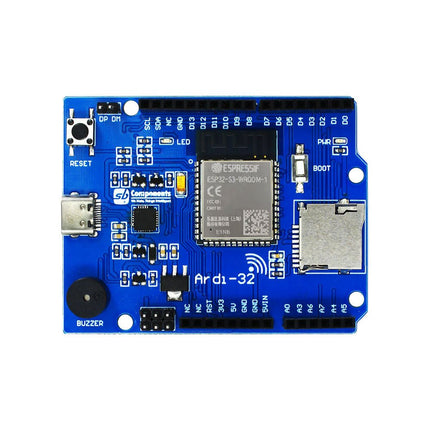

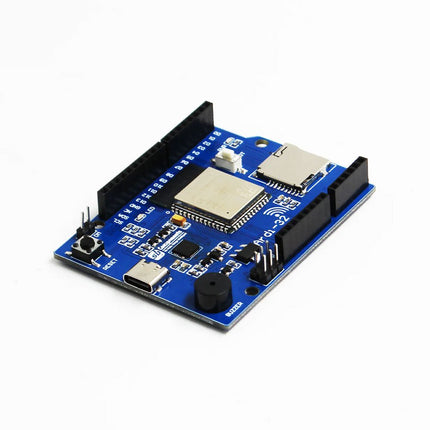

Ardi32 - Uno R3 Board based on ESP32-S3-WROOM-1

  • BrandSB Components

Description

Ardi32 is the ultimate Arduino Uno alternative packed with powerful specs and exciting features in the Arduino Uno form factor. Ardi32 is powered by the latest ESP32-S3-WROOM-1. The built-in Wi-Fi and Bluetooth connectivity makes the board ideal for IoT projects or projects requiring wireless communication.

Features

  • Powered by powerful ESP32-S3-WROOM-1 module with inbuild WiFi and BLE support.
  • Arduino Uno form factor, so you can connect 3.3 V compatible Arduino shields
  • SD card slot for storage and data transfer
  • The facility of USB-C interface for programming and to the power board
  • Boot and Reset buttons are available to operate in various modes.
  • Multifunction GPIO breakout supporting general I/O, UART, I²C, SPI, ADC & PWM functions.
  • Multi-tune Buzzer to add audio alert into the project
  • Multi-platform support like Arduino IDE, Espressif IDF, and MicroPython/CircuitPython
  • Comes with HID support, so the device can simulate a mouse or keyboard

Specifications

  • ESP32-S3 series of SoCs having Xtensa dual-core 32-bit LX7 microprocessor
  • 4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • Flash up to 16 MB, PSRAM up to 8 MB
  • Board supply 5 V and GPIO pins operating voltage 3.3 V
  • 22 multipurpose GPIOs breakout in Arduino style for easy peripheral and shield interfacing
  • I²C, SPI, and UART communications protocol support
  • Cross-platform development and multiple programming language support

Product form

Ardi32 is the ultimate Arduino Uno alternative packed with powerful specs and exciting features in the Arduino Uno form factor.... Read more

€ 32,95 incl. VAT
Members € 29,66

      Details

      SKU: 20691
      EAN: 5055652926647

      Description

      Ardi32 is the ultimate Arduino Uno alternative packed with powerful specs and exciting features in the Arduino Uno form factor. Ardi32 is powered by the latest ESP32-S3-WROOM-1. The built-in Wi-Fi and Bluetooth connectivity makes the board ideal for IoT projects or projects requiring wireless communication.

      Features

      • Powered by powerful ESP32-S3-WROOM-1 module with inbuild WiFi and BLE support.
      • Arduino Uno form factor, so you can connect 3.3 V compatible Arduino shields
      • SD card slot for storage and data transfer
      • The facility of USB-C interface for programming and to the power board
      • Boot and Reset buttons are available to operate in various modes.
      • Multifunction GPIO breakout supporting general I/O, UART, I²C, SPI, ADC & PWM functions.
      • Multi-tune Buzzer to add audio alert into the project
      • Multi-platform support like Arduino IDE, Espressif IDF, and MicroPython/CircuitPython
      • Comes with HID support, so the device can simulate a mouse or keyboard

      Specifications

      • ESP32-S3 series of SoCs having Xtensa dual-core 32-bit LX7 microprocessor
      • 4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
      • Flash up to 16 MB, PSRAM up to 8 MB
      • Board supply 5 V and GPIO pins operating voltage 3.3 V
      • 22 multipurpose GPIOs breakout in Arduino style for easy peripheral and shield interfacing
      • I²C, SPI, and UART communications protocol support
      • Cross-platform development and multiple programming language support
