FNIRSI DSO152 Oscilloscope (200 kHz)

Description

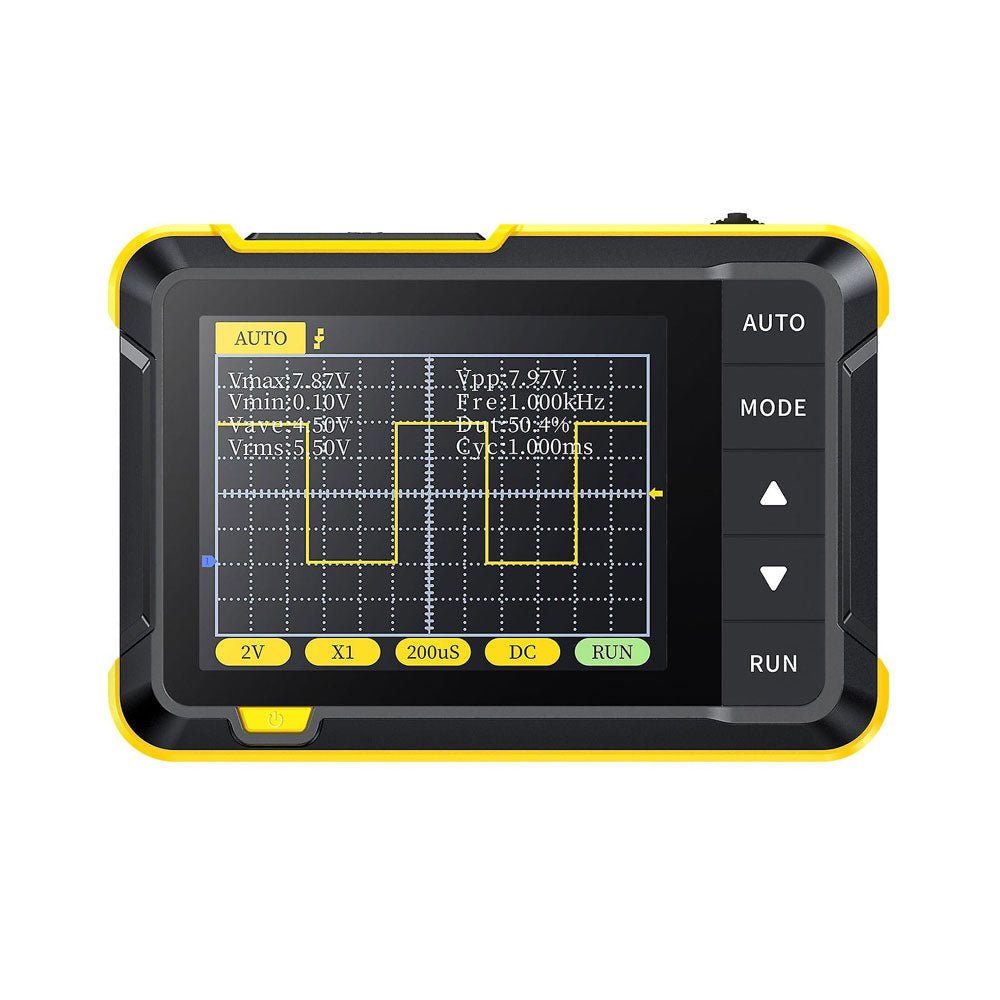

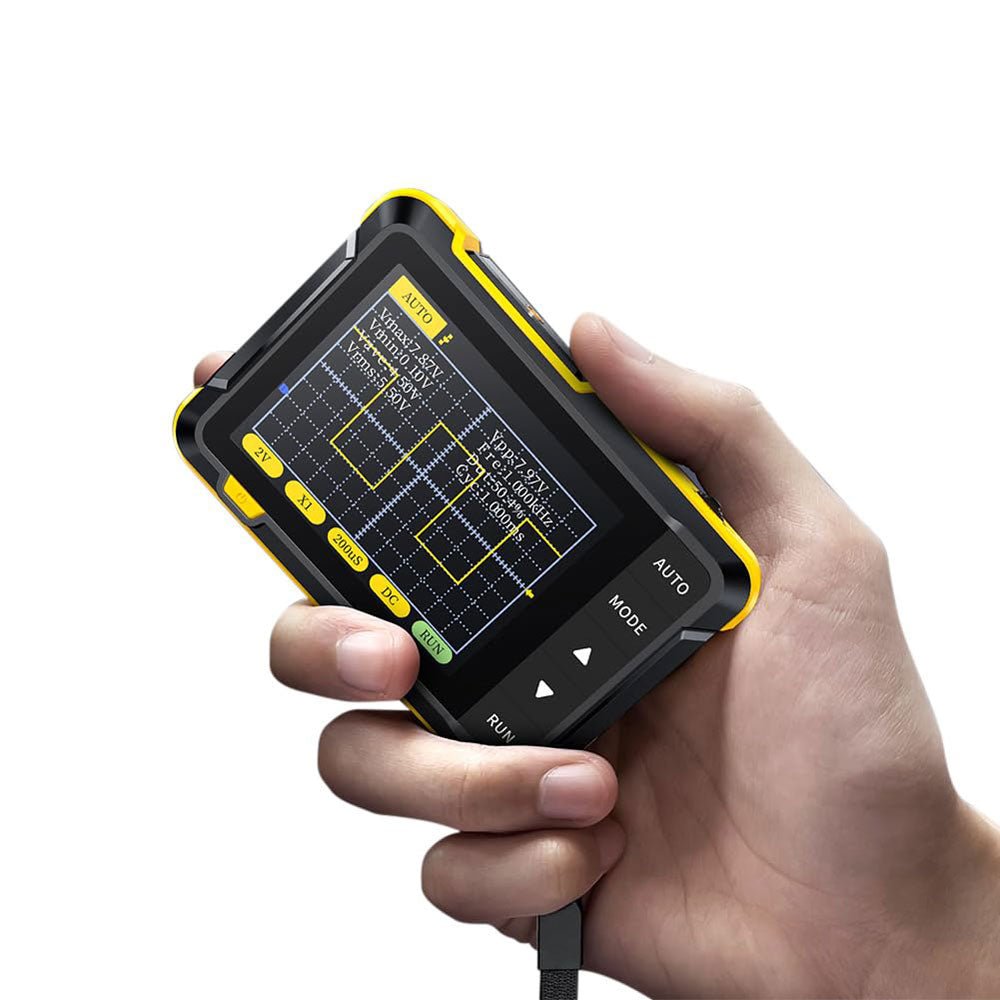

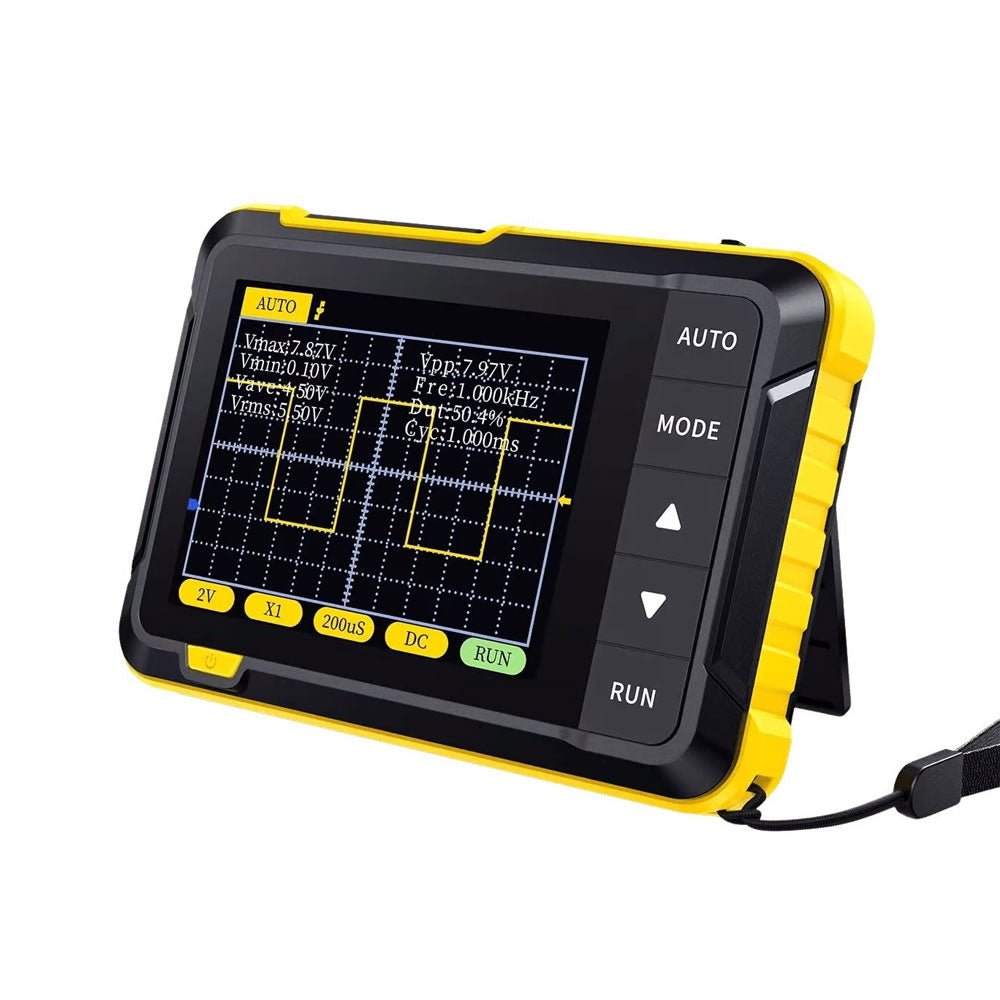

The FNIRSI DSO152 is an extremely practical and cost-effective handheld oscilloscope with a real-time sampling rate of 2.5 MSa/s, a bandwidth of 200 kHz and complete trigger functions (single, normal and automatic).

It can be used for both periodic analog signals and non-periodic digital signals and can measure voltages up to ±400 V. Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments. It is equipped with a high-resolution 2.8-inch LCD screen with a resolution of 320x240 pixels and a built-in 1000 mAh high-quality lithium battery for up to 4 hours of operation.

Specifications

Sampling rate 2.5 MSa/s
Bandwidth 200 kHz
Vertical sensitivity 10 mV/DIV - 20 V/DIV (Progress according to the 1-2-5 way)
Time base range 10µS/DIV - 50s/DIV (Progress according to the 1-2-5 way)
Voltage range X1: ±40 V (Vpp: 80 V)
X10: ±400 V (Vpp: 800 V)
Trigger method Auto/Normal/Single
Coupling method AC/DC
Display 2.8' (320x240 pixels)
USB charging 5 V/1 A
Lithium battery capacity 1000 mAh
Square wave calibration Frequency: 1K, Duty cycle: 50%
Dimensions 99 x 68.3 x 19.5 mm
Weight 100 g

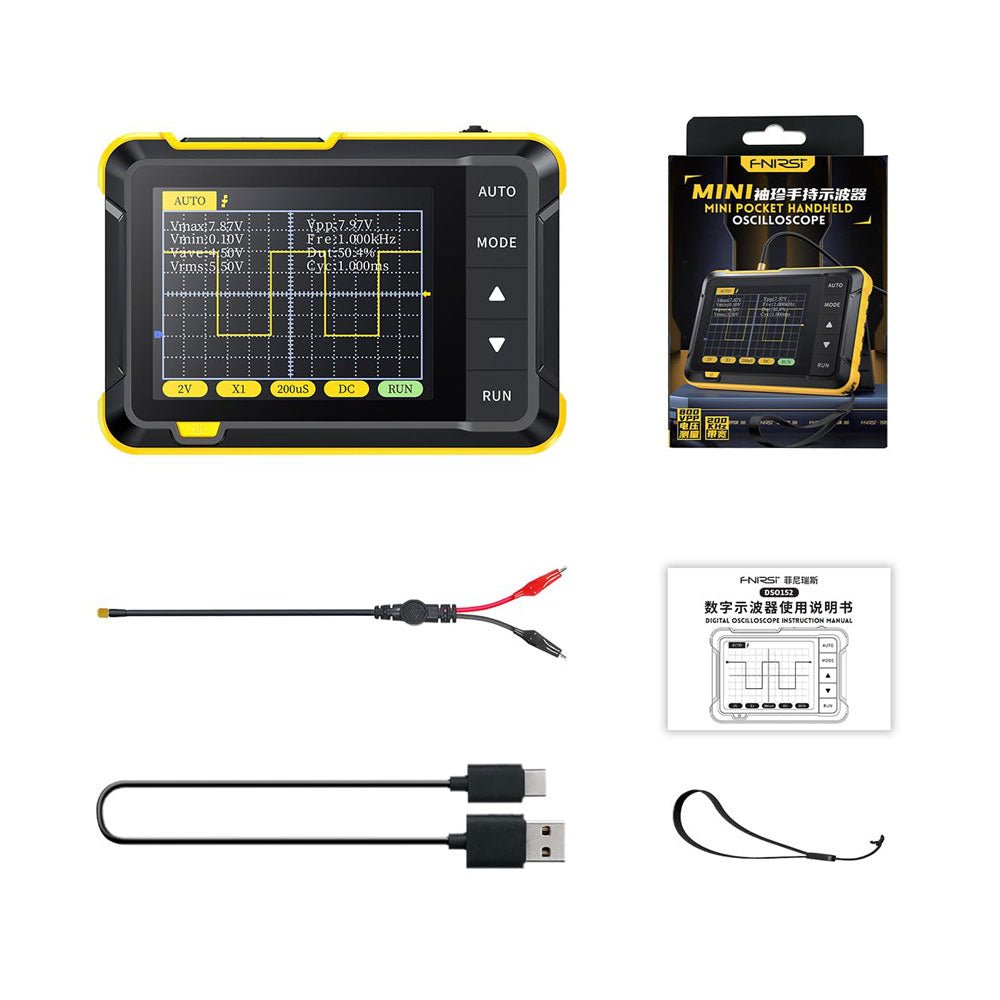

Included

  • FNIRSI DSO152 oscilloscope
  • Alligator clip probe
  • USB cable
  • Lanyard
  • Manual

Downloads

Product form

The FNIRSI DSO152 is an extremely practical and cost-effective handheld oscilloscope with a real-time sampling rate of 2.5 MSa/s, a bandwidth... Read more

€ 39,95€ 32,95 incl. VAT
Members identical

      Details

      SKU: 20642
      EAN: 020642

      Description

      The FNIRSI DSO152 is an extremely practical and cost-effective handheld oscilloscope with a real-time sampling rate of 2.5 MSa/s, a bandwidth of 200 kHz and complete trigger functions (single, normal and automatic).

      It can be used for both periodic analog signals and non-periodic digital signals and can measure voltages up to ±400 V. Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments. It is equipped with a high-resolution 2.8-inch LCD screen with a resolution of 320x240 pixels and a built-in 1000 mAh high-quality lithium battery for up to 4 hours of operation.

      Specifications

      Sampling rate 2.5 MSa/s
      Bandwidth 200 kHz
      Vertical sensitivity 10 mV/DIV - 20 V/DIV (Progress according to the 1-2-5 way)
      Time base range 10µS/DIV - 50s/DIV (Progress according to the 1-2-5 way)
      Voltage range X1: ±40 V (Vpp: 80 V)
      X10: ±400 V (Vpp: 800 V)
      Trigger method Auto/Normal/Single
      Coupling method AC/DC
      Display 2.8' (320x240 pixels)
      USB charging 5 V/1 A
      Lithium battery capacity 1000 mAh
      Square wave calibration Frequency: 1K, Duty cycle: 50%
      Dimensions 99 x 68.3 x 19.5 mm
      Weight 100 g

      Included

      • FNIRSI DSO152 oscilloscope
      • Alligator clip probe
      • USB cable
      • Lanyard
      • Manual

      Downloads

      Customer Reviews

      Based on 1 review
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      P
      Pit
      Senior VIce President of Switchboard

      Handy product.
      I could not find a cheap multimeter for my grandson and bought this FNIRSI oscilloscope instead.
      For some basic electronic circuits, all you need to troubleshoot.
      The bandwidth is limited, but I was impressed by it's voltage range with the 1 x 10 probe.

      Initially sceptic, but right now I like to use this simple tool and hope it helps my grandson understanding URI.

      Happy soldering!
