LILYGO T-Journal ESP32 Camera Module Development Board (Normal Lens)

  • BrandLILYGO

Description

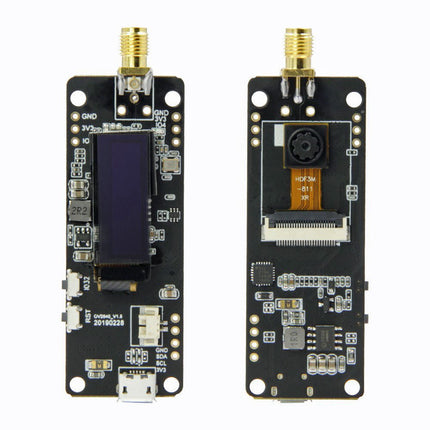

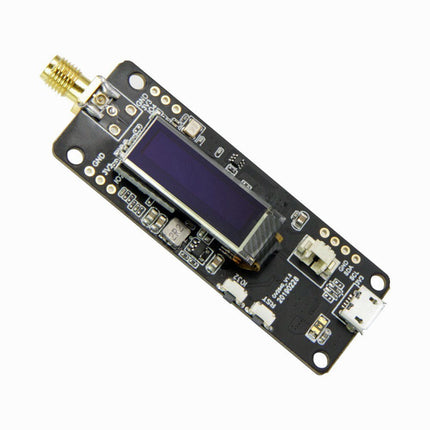

The T-Journal is a cheap ESP32 Camera Development Board that features an OV2640 camera, an antenna, a 0.91-inch OLED display, some exposed GPIOs, and a micro-USB interface. It makes it easy and quick to upload code to the board.

Specifications

  • Chipset Expressif-ESP32-PCIO-D4 240 MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
  • FLASH QSPI flash/SRAM, up to 4x 16 MB
  • SRAM 520 kB SRAM
  • KEY reset, IO32
  • Display 0.91' SSD1306
  • Power indicator lamp red
  • USB to TTL CP2104
  • Camera OV2640, 2 Megapixel
  • Steering engine analog servo
  • On-board clock 40 MHz crystal oscillator
  • Working voltage 2.3-3.6 V
  • Working current about 160 mA
  • Working temperature range -40℃ ~ +85℃
  • Size 64.57 x 23.98 mm
  • Power Supply USB 5 V/1 A
  • Charging current 1 A
  • Battery 3.7 V lithium battery

WiFi

  • Standard FCC/CE/TELEC/KCC/SRRC/NCC (ESP32-chip)
  • Protocol 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps) A-MPDU and A-MSDU polymerization, support 0.4 μS Protection interval
  • Frequency range 2.4 GHz~2.5 GHz (2400 M ~ 2483.5 M)
  • Transmit Power 22 dBm
  • Communication distance 300m

Bluetooth

  • Protocol meet bluetooth v4.2BR/EDR and BLE standard
  • Radio frequency with -98 dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
  • Audio frequency CVSD & SBC audio frequency

Software

  • Wifi Mode Station/SoftAP/SoftAP+Station/P2P
  • Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
  • Encryption Type AES/RSA/ECC/SHA
  • Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
  • Software Development Support cloud server development /SDK for user firmware development
  • Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
  • User Configuration AT + Instruction set, cloud server, Android/iOS app
  • OS FreeRTOS

Included

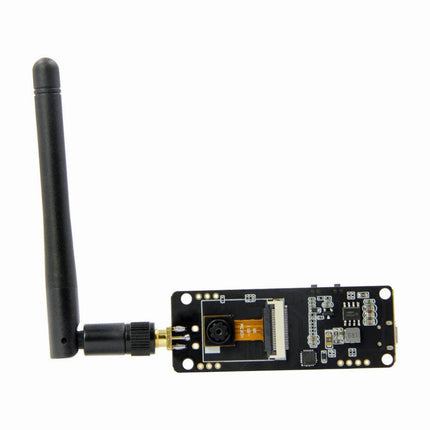

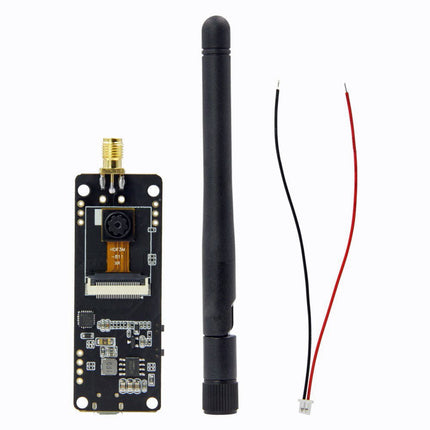

  • 1x ESP32 Camera Module (Normal Lens)
  • 1x Wi-Fi Antenna
  • 1x Power Line

Downloads

Product form

The T-Journal is a cheap ESP32 Camera Development Board that features an OV2640 camera, an antenna, a 0.91-inch OLED display,... Read more

€ 29,95 incl. VAT
Members € 26,96

      Details

      SKU: 19775
      EAN: 019775

      Description

      The T-Journal is a cheap ESP32 Camera Development Board that features an OV2640 camera, an antenna, a 0.91-inch OLED display, some exposed GPIOs, and a micro-USB interface. It makes it easy and quick to upload code to the board.

      Specifications

      • Chipset Expressif-ESP32-PCIO-D4 240 MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
      • FLASH QSPI flash/SRAM, up to 4x 16 MB
      • SRAM 520 kB SRAM
      • KEY reset, IO32
      • Display 0.91' SSD1306
      • Power indicator lamp red
      • USB to TTL CP2104
      • Camera OV2640, 2 Megapixel
      • Steering engine analog servo
      • On-board clock 40 MHz crystal oscillator
      • Working voltage 2.3-3.6 V
      • Working current about 160 mA
      • Working temperature range -40℃ ~ +85℃
      • Size 64.57 x 23.98 mm
      • Power Supply USB 5 V/1 A
      • Charging current 1 A
      • Battery 3.7 V lithium battery

      WiFi

      • Standard FCC/CE/TELEC/KCC/SRRC/NCC (ESP32-chip)
      • Protocol 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps) A-MPDU and A-MSDU polymerization, support 0.4 μS Protection interval
      • Frequency range 2.4 GHz~2.5 GHz (2400 M ~ 2483.5 M)
      • Transmit Power 22 dBm
      • Communication distance 300m

      Bluetooth

      • Protocol meet bluetooth v4.2BR/EDR and BLE standard
      • Radio frequency with -98 dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
      • Audio frequency CVSD & SBC audio frequency

      Software

      • Wifi Mode Station/SoftAP/SoftAP+Station/P2P
      • Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
      • Encryption Type AES/RSA/ECC/SHA
      • Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
      • Software Development Support cloud server development /SDK for user firmware development
      • Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
      • User Configuration AT + Instruction set, cloud server, Android/iOS app
      • OS FreeRTOS

      Included

      • 1x ESP32 Camera Module (Normal Lens)
      • 1x Wi-Fi Antenna
      • 1x Power Line

      Downloads
