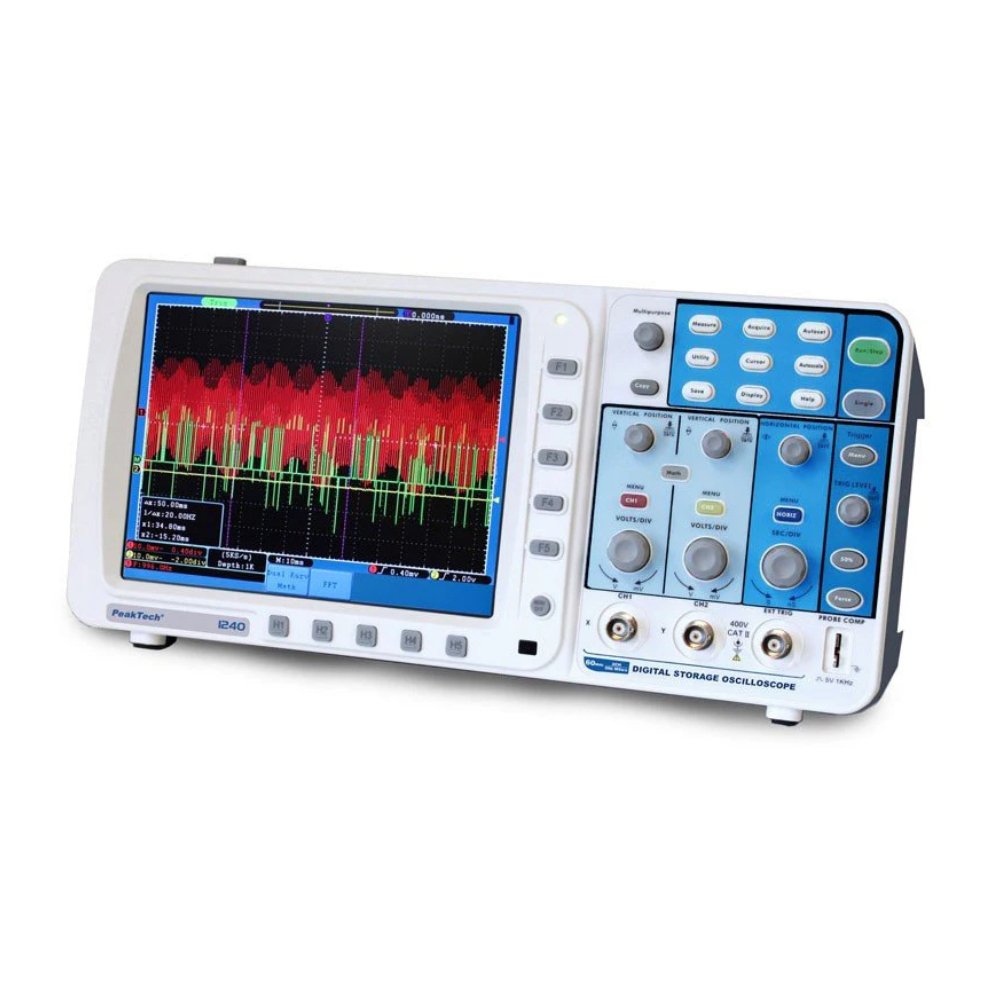

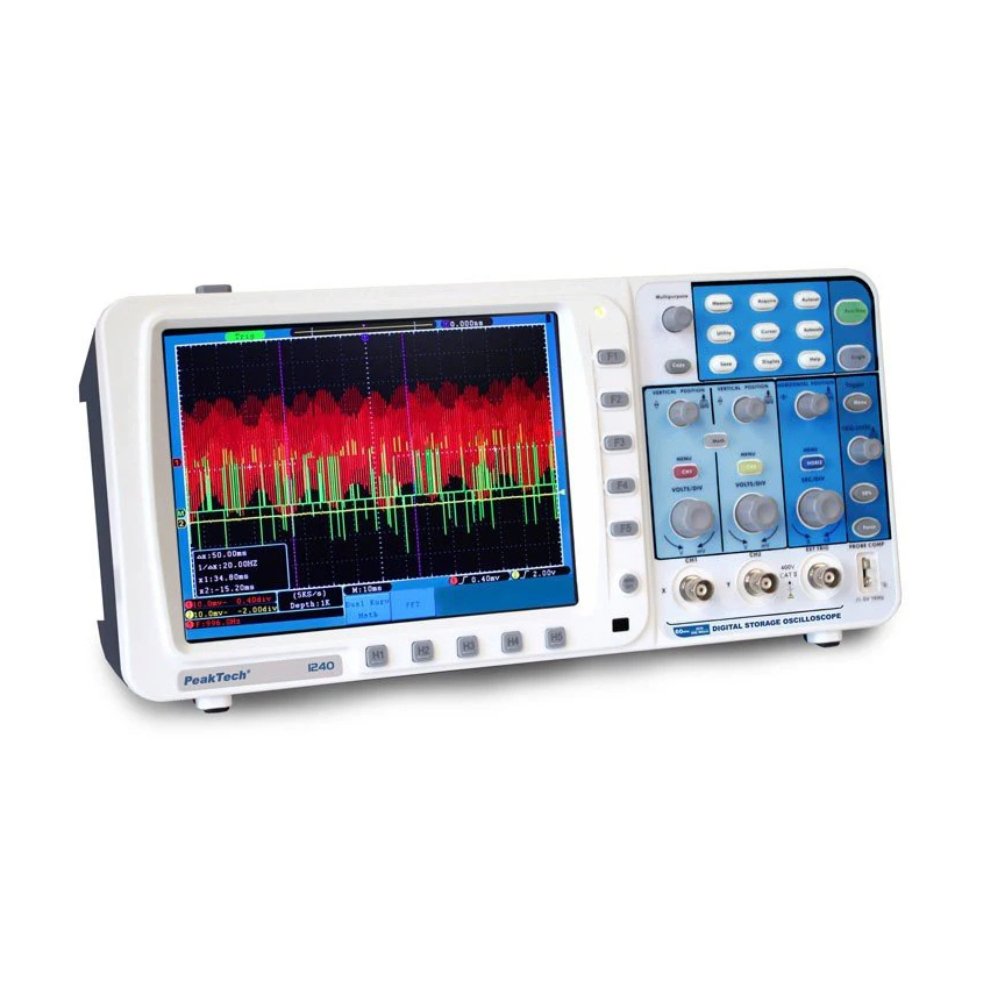

PeakTech 1240 2-ch Oscilloscope (60 MHz)

  • BrandPeakTech

Description

Digital storage osczilloscope of the latest generation with high-resolution color display, backlight, high bandwidth and high sampling rate, VGA-output, large internal memory, USB port and LAN connection for integration into networks. The amazing value for money and modern technology allows a wide range of applications in education, service and quality assurance area.

  • High-resolution TFT color display with 800 x 600 pixels and 65536 colors
  • USB port for real-time data transmission or reading of internal memory
  • Saving of measured values and graphics directly onto the USB-stick
  • VGA-output port for external monitor
  • Autoset and autoscale function for easy operation
  • LAN connection for remote access via network
  • Internal memory of 10 million points per channel or 15 waveforms
  • 20 automatic measurement modes and FFT function
  • PASS/FAIL function
  • Safety: EN 61010-1; CAT II
  • Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/Vista/7/8/10, power cable, 2 probes, carrying case and manual
Bandwidth 60 MHz
Display 20 cm (8”) TFT with 65536 colors
Resolution 800 x 600 Pixel
Channel 2 CH
Sampling mode normal/peak detect/average
Sampling rate each Channel 250 MSa/s
Input coupling AC, DC, GND
Input impedance 1 MΩ +/- 2 % in parallel with 10 pF +/- 5 pF
Input voltage 400 V DC or ACpp
Sensitivity 2 mV - 10 V/Skt/div.
Rise time < 5,8 ns
Accuracy +/- 3 %
Vertical resolutions 8 Bits (2 CH simultaneously)
Horizontal scale 5ns-100s/Skt./div
Sampling range 0,5 - 250 S/s
Trigger type Edge/Video/Pulse/Slope
Trigger mode Auto, Normal, Single
Trigger coupling DC, AC, LF, HF
20 automat. measurements peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B(falling), frequency, period, min, max
Phase difference +/- 3°
Record length 10.000.000 points/CH

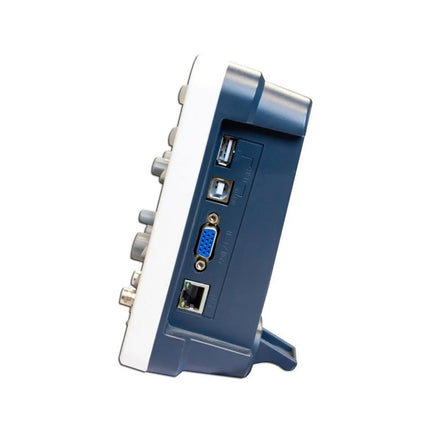

Interfaces USB Device 2.0, USB Host 2.0, VGA, LAN
Operation voltage 100 ~ 240 V ACrms / 50/60 Hz
Dimensions (WxHxD) 340 x 155 x 70 mm
Weight 1.8 kg
Product form

Digital storage osczilloscope of the latest generation with high-resolution color display, backlight, high bandwidth and high sampling rate, VGA-output, large... Read more

1 in stock

€ 499,00 incl. VAT
Members € 449,10

      Details

      SKU: 18154
      EAN: 4250569402111

      Description

      Digital storage osczilloscope of the latest generation with high-resolution color display, backlight, high bandwidth and high sampling rate, VGA-output, large internal memory, USB port and LAN connection for integration into networks. The amazing value for money and modern technology allows a wide range of applications in education, service and quality assurance area.

      • High-resolution TFT color display with 800 x 600 pixels and 65536 colors
      • USB port for real-time data transmission or reading of internal memory
      • Saving of measured values and graphics directly onto the USB-stick
      • VGA-output port for external monitor
      • Autoset and autoscale function for easy operation
      • LAN connection for remote access via network
      • Internal memory of 10 million points per channel or 15 waveforms
      • 20 automatic measurement modes and FFT function
      • PASS/FAIL function
      • Safety: EN 61010-1; CAT II
      • Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/Vista/7/8/10, power cable, 2 probes, carrying case and manual
      Bandwidth 60 MHz
      Display 20 cm (8”) TFT with 65536 colors
      Resolution 800 x 600 Pixel
      Channel 2 CH
      Sampling mode normal/peak detect/average
      Sampling rate each Channel 250 MSa/s
      Input coupling AC, DC, GND
      Input impedance 1 MΩ +/- 2 % in parallel with 10 pF +/- 5 pF
      Input voltage 400 V DC or ACpp
      Sensitivity 2 mV - 10 V/Skt/div.
      Rise time < 5,8 ns
      Accuracy +/- 3 %
      Vertical resolutions 8 Bits (2 CH simultaneously)
      Horizontal scale 5ns-100s/Skt./div
      Sampling range 0,5 - 250 S/s
      Trigger type Edge/Video/Pulse/Slope
      Trigger mode Auto, Normal, Single
      Trigger coupling DC, AC, LF, HF
      20 automat. measurements peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B(falling), frequency, period, min, max
      Phase difference +/- 3°
      Record length 10.000.000 points/CH
      Interfaces USB Device 2.0, USB Host 2.0, VGA, LAN
      Operation voltage 100 ~ 240 V ACrms / 50/60 Hz
      Dimensions (WxHxD) 340 x 155 x 70 mm
      Weight 1.8 kg
