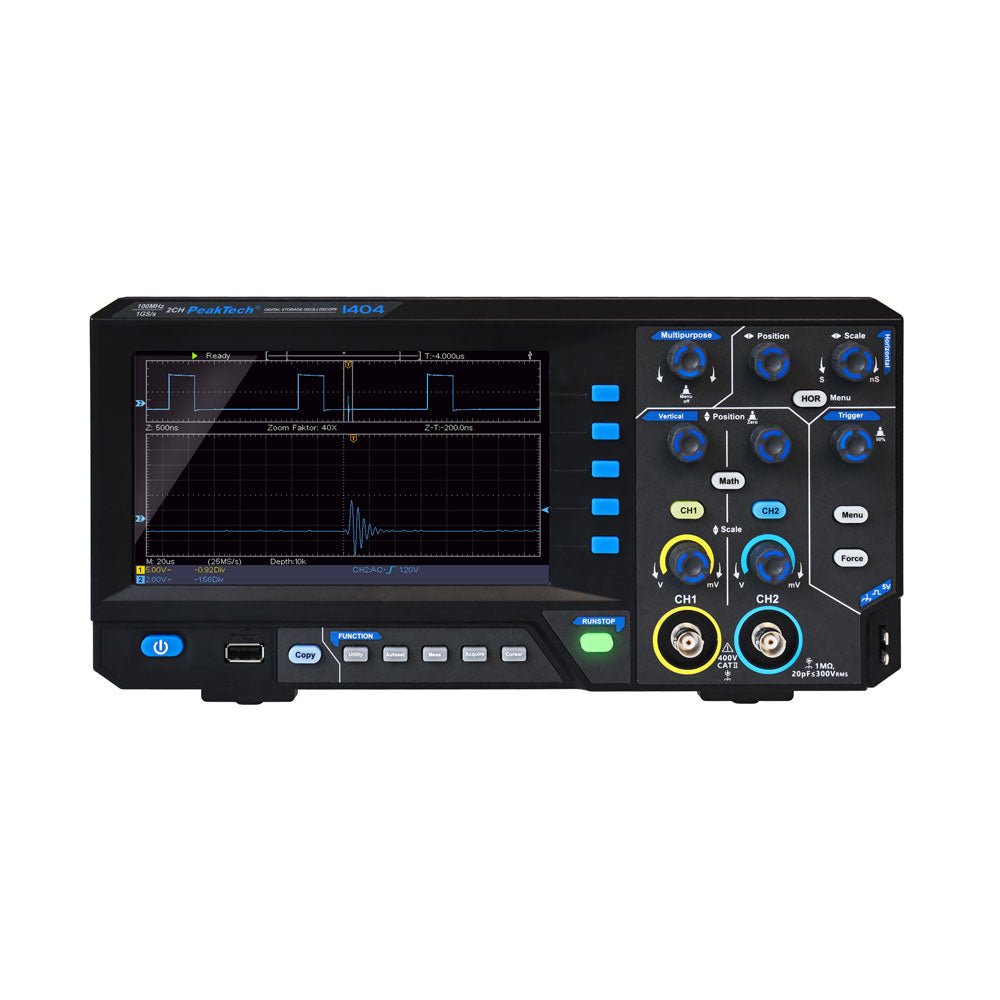

PeakTech 1404 2-ch Oscilloscope (100 MHz)

  • BrandPeakTech

Description

Specially developed for the education and hobby sector, this fully-fledged digital storage oscilloscope offers the best possible price/performance ratio without having to compromise on functionality or technical features. Whether Autoset and Autoscale, mathematical measurement functions, FFT, Cursor or XY mode and even a zoom function, all standard market functions are already integrated in this series.

The data storage of the waveforms is either internal with memory for 16 waveforms or external on a USB memory in TXT, CSV or BIN format, which can be read out with the included software. Configurations can also be saved internally or screenshots of the display can be saved externally.

The display of the waveforms can be achieved quickly and user-friendly through the Autoset function, via AutoScale the measured waveforms can be displayed even more precisely as required, whereby these settings can of course also be carried out completely manually via the key control.

Features

  • 2-channel oscilloscope with 100 MHz analogue bandwidth at max. 1 GS/s sampling rate
  • 17.5 cm (7') TFT colour display with 800 x 480 pixels
  • USB device connection for real-time data transmission
  • USB host connection for external USB data carriers
  • Handy and flat housing design with carrying handle
  • Autoset function for user-friendly operation
  • Recording length of max. 10,000 points
  • Automatic measuring modes, XY mode and FFT function

Specifications

Bandwidth 100 MHz
Channels 2
Sampling 1 CH 1 GS/s
Sampling 2 CH 500 MS/s
Rise Time < 3.5 ns
Display Type Color TFT
Resolution 800 x 480 Pixels
Screen size (TFT) 17.5 cm (7')
Hor. scale max. 1000 s/div
Hor. scale min. 2 ns/div
Memory depth 10,000 Points
Vert. resolution 8 Bit
Vert. scale max. 5 V/div
Vert. scale min. 2 mV/div
Mains voltage 110/240 V AC; 50/60 Hz

Downloads

Product form

Specially developed for the education and hobby sector, this fully-fledged digital storage oscilloscope offers the best possible price/performance ratio without... Read more

€ 299,00 incl. VAT
Members € 269,10

      Details

      SKU: 20229
      EAN: 4250569406355

      Description

      Specially developed for the education and hobby sector, this fully-fledged digital storage oscilloscope offers the best possible price/performance ratio without having to compromise on functionality or technical features. Whether Autoset and Autoscale, mathematical measurement functions, FFT, Cursor or XY mode and even a zoom function, all standard market functions are already integrated in this series.

      The data storage of the waveforms is either internal with memory for 16 waveforms or external on a USB memory in TXT, CSV or BIN format, which can be read out with the included software. Configurations can also be saved internally or screenshots of the display can be saved externally.

      The display of the waveforms can be achieved quickly and user-friendly through the Autoset function, via AutoScale the measured waveforms can be displayed even more precisely as required, whereby these settings can of course also be carried out completely manually via the key control.

      Features

      • 2-channel oscilloscope with 100 MHz analogue bandwidth at max. 1 GS/s sampling rate
      • 17.5 cm (7') TFT colour display with 800 x 480 pixels
      • USB device connection for real-time data transmission
      • USB host connection for external USB data carriers
      • Handy and flat housing design with carrying handle
      • Autoset function for user-friendly operation
      • Recording length of max. 10,000 points
      • Automatic measuring modes, XY mode and FFT function

      Specifications

      Bandwidth 100 MHz
      Channels 2
      Sampling 1 CH 1 GS/s
      Sampling 2 CH 500 MS/s
      Rise Time < 3.5 ns
      Display Type Color TFT
      Resolution 800 x 480 Pixels
      Screen size (TFT) 17.5 cm (7')
      Hor. scale max. 1000 s/div
      Hor. scale min. 2 ns/div
      Memory depth 10,000 Points
      Vert. resolution 8 Bit
      Vert. scale max. 5 V/div
      Vert. scale min. 2 mV/div
      Mains voltage 110/240 V AC; 50/60 Hz
