UNI-T UPO1102CS 2-ch Oscilloscope (100 MHz)

  • BrandUni-Trend

Description

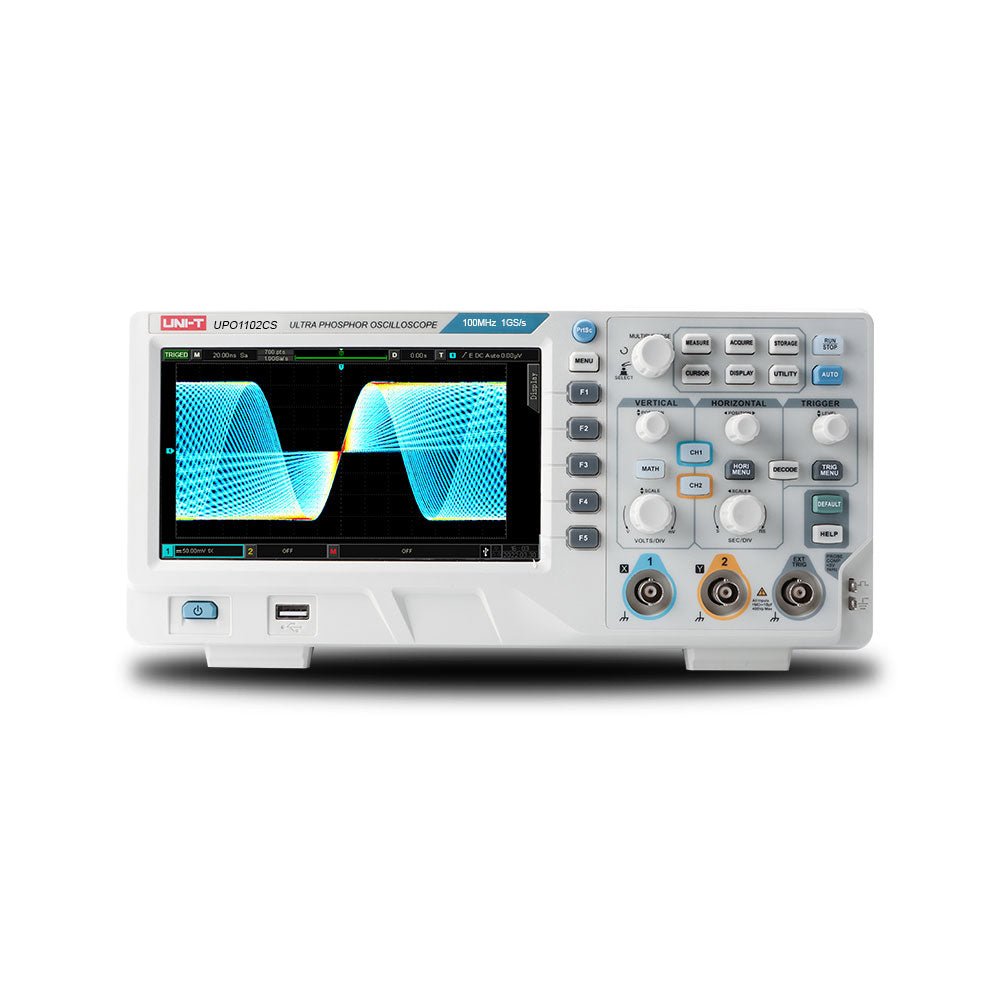

UNI-T UPO1102CS is a multifunctional, low-cost 2-channel digital phosphor oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design.

UPO1000CS series adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered afterglow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and runt signals.

Specifications

UPO1102CS UPO1202CS
Bandwidth 100 MHz 200 MHz
Analog channels 2 2
Sampling rate 1 GSa/s 1 GSa/s
Storage depth 56 Mpts per channel 56 Mpts per channel
Rise time ≤3.5ns ≤1.8ns
Capture rate 500,000 wfms/s 500,000 wfms/s
Waveform record 100,000 frames 100,000 frames

Features

  • 7' WVGA (800 x 480) TFT LCD
  • Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display
  • Support RS232, I²C, SPI, CAN and LIN trigger
  • Innovative RS232, I²C, SPI, CAN and LIN hardware decoding
  • Vertical scale: 1 mV/div-20 V/div
  • Low background noise: <100 μVrms
  • 1M points enhanced FFT function. Support frequency setting, waterfall diagram, detection setting
    and marker measurement etc
  • 36 kinds of waveform parameters can be automatically measured
  • Rich trigger functions (edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration,
    setup and hold, Nth edge and pattern trigger)
  • Multi-Scopes support dual-channel independent trigger fluorescence display
  • Multi-channel independent 7-bit hardware frequency counter
  • DVM supports dual-channel independent AC and DC true RMS measurement
  • Waveform arithmetic functions (FFT, +, -, ×, ÷, digital filtering, logic operations, and advanced
    operations)
  • Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail)
  • Support SCPI programmable instrument standard command
  • Support WEB access and control

Downloads

Product form

UNI-T UPO1102CS is a multifunctional, low-cost 2-channel digital phosphor oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate. It... Read more

2 in stock

€ 359,00 incl. VAT
Members € 323,10

      Details

      SKU: 20495
      EAN: 6935750591451

      Description

      UNI-T UPO1102CS is a multifunctional, low-cost 2-channel digital phosphor oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design.

      UPO1000CS series adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered afterglow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and runt signals.

      Specifications

      UPO1102CS UPO1202CS
      Bandwidth 100 MHz 200 MHz
      Analog channels 2 2
      Sampling rate 1 GSa/s 1 GSa/s
      Storage depth 56 Mpts per channel 56 Mpts per channel
      Rise time ≤3.5ns ≤1.8ns
      Capture rate 500,000 wfms/s 500,000 wfms/s
      Waveform record 100,000 frames 100,000 frames

      Features

      • 7' WVGA (800 x 480) TFT LCD
      • Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display
      • Support RS232, I²C, SPI, CAN and LIN trigger
      • Innovative RS232, I²C, SPI, CAN and LIN hardware decoding
      • Vertical scale: 1 mV/div-20 V/div
      • Low background noise: <100 μVrms
      • 1M points enhanced FFT function. Support frequency setting, waterfall diagram, detection setting
        and marker measurement etc
      • 36 kinds of waveform parameters can be automatically measured
      • Rich trigger functions (edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration,
        setup and hold, Nth edge and pattern trigger)
      • Multi-Scopes support dual-channel independent trigger fluorescence display
      • Multi-channel independent 7-bit hardware frequency counter
      • DVM supports dual-channel independent AC and DC true RMS measurement
      • Waveform arithmetic functions (FFT, +, -, ×, ÷, digital filtering, logic operations, and advanced
        operations)
      • Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail)
      • Support SCPI programmable instrument standard command
      • Support WEB access and control
