Waveshare L76B GNSS Module for Raspberry Pi Pico

  • BrandWaveshare

Description

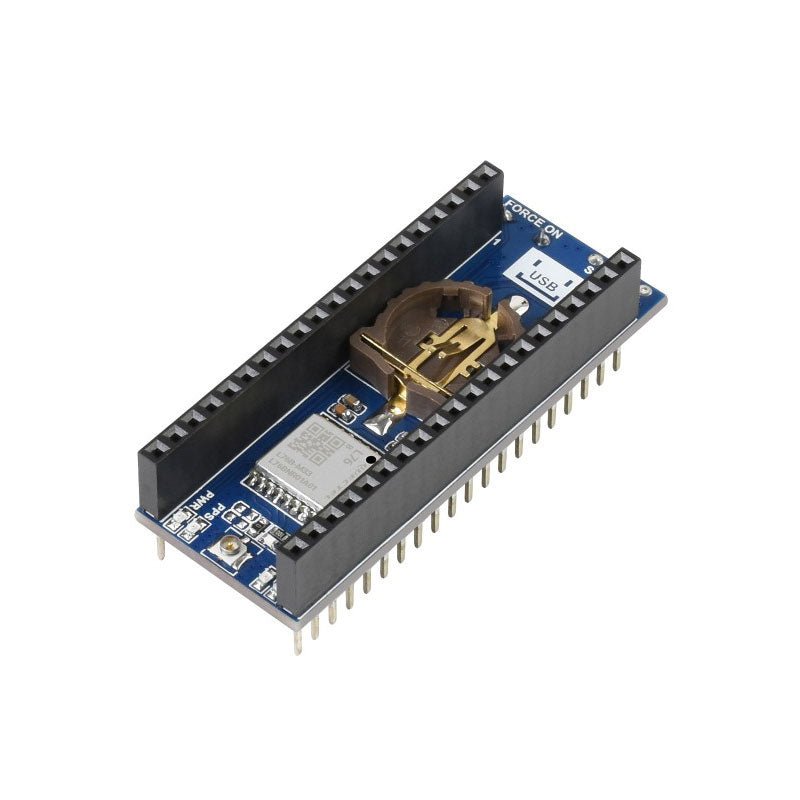

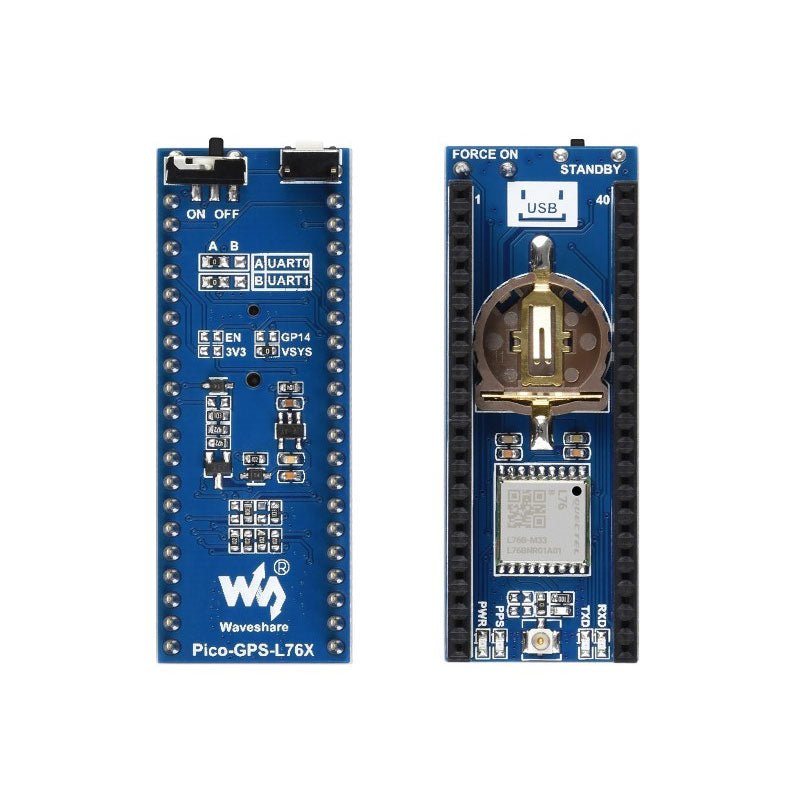

The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and QZSS. It has advantages such as fast positioning, high accuracy, and low power consumption, etc. Combined with the Raspberry Pi Pico, it's easy to use global navigating function.

Features

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Multi satellite systems support: GPS, BDS, and QZSS
  • EASY, self track prediction technology, help quick positioning
  • AlwaysLocate, intelligent controller of periodic mode for power saving
  • Supports D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
  • UART communication baudrate: 4800~115200bps (9600bps by default)
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • 4x LEDs for indicating the module operating status
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

GNSS
Frequency band:
GPS L1 (1575.42 Mhz)
BD2 B1 (1561.098 MHz)
Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch
C/A code
SBAS: WAAS, EGNOS, MSAS, GAGAN
Horizontal position accuracy
(autonomous positioning)
<2.5 m CEP
Time-To-First-Fix @ -130 dBm
(EASY enabled)
Cold starts: <15s
Warm starts: <5s
Hot starts: <1s
Sensitivity Acquisition: -148 dBm
Tracking: -163 dBm
Re-acquisition: -160 dBm
Dynamic performance Altitude (max): 18000 m
Velocity (max): 515 m/s
Acceleration (max): 4 g
Others
Communication interface UART
Baudrate 4800~115200bps (9600bps by default)
Update rate 1 Hz (default), 10 Hz (max)
Protocols NMEA 0183, PMTK
Power supply voltage 5 V
Operating current 13 mA
Overall current consumption < 40 mA@5 V (Continue mode)
Operating temperature -40℃ ~ 85℃
Dimensions 52 × 21 mm

Included

  • 1x Pico-GPS-L76B

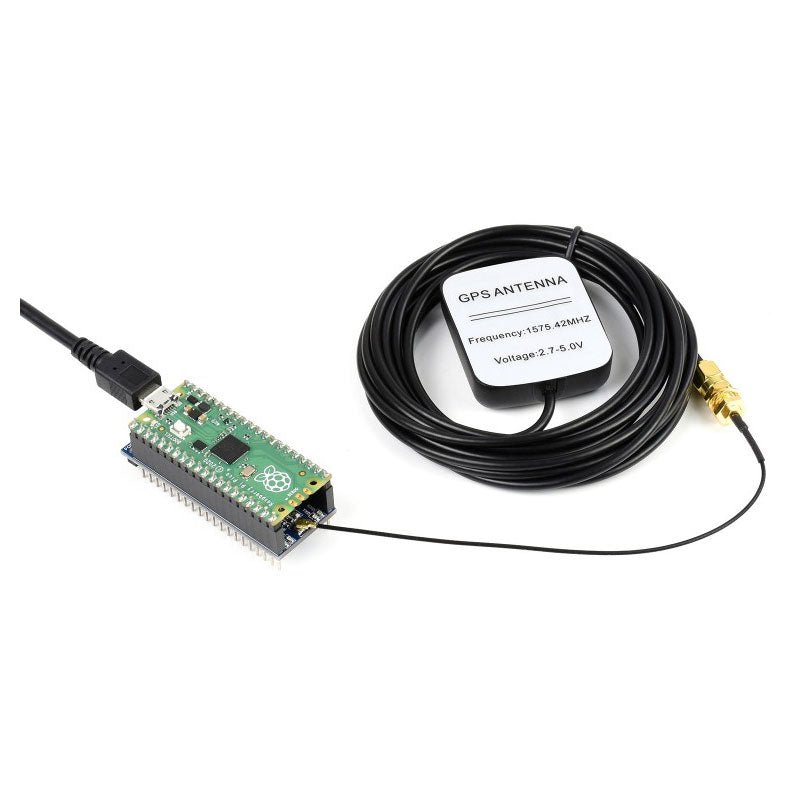

  • 1x GPS Antenna
Product form

The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and... Read more

€ 21,95 incl. VAT
Members € 19,76

      Details

      SKU: 19843
      EAN: 019843

      Description

      The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and QZSS. It has advantages such as fast positioning, high accuracy, and low power consumption, etc. Combined with the Raspberry Pi Pico, it's easy to use global navigating function.

      Features

      • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
      • Multi satellite systems support: GPS, BDS, and QZSS
      • EASY, self track prediction technology, help quick positioning
      • AlwaysLocate, intelligent controller of periodic mode for power saving
      • Supports D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
      • UART communication baudrate: 4800~115200bps (9600bps by default)
      • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
      • 4x LEDs for indicating the module operating status
      • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

      Specifications

      GNSS
      Frequency band:
      GPS L1 (1575.42 Mhz)
      BD2 B1 (1561.098 MHz)
      Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch
      C/A code
      SBAS: WAAS, EGNOS, MSAS, GAGAN
      Horizontal position accuracy
      (autonomous positioning)
      <2.5 m CEP
      Time-To-First-Fix @ -130 dBm
      (EASY enabled)
      Cold starts: <15s
      Warm starts: <5s
      Hot starts: <1s
      Sensitivity Acquisition: -148 dBm
      Tracking: -163 dBm
      Re-acquisition: -160 dBm
      Dynamic performance Altitude (max): 18000 m
      Velocity (max): 515 m/s
      Acceleration (max): 4 g
      Others
      Communication interface UART
      Baudrate 4800~115200bps (9600bps by default)
      Update rate 1 Hz (default), 10 Hz (max)
      Protocols NMEA 0183, PMTK
      Power supply voltage 5 V
      Operating current 13 mA
      Overall current consumption < 40 mA@5 V (Continue mode)
      Operating temperature -40℃ ~ 85℃
      Dimensions 52 × 21 mm

      Included

      • 1x Pico-GPS-L76B
      • 1x GPS Antenna
