The small Raspberry Pi puts in the quad-core turbo! Features 64-bit quad-core processor VideoCore IV GPU 512 MB LPDDR2 DRAM 802.11b/g/n wireless LAN Bluetooth 4.2 / Bluetooth Low Energy (BLE) MicroSD card slot Mini HDMI and USB 2.0 OTG ports Micro USB power HAT-compatible 40-pin header Composite video and reset pins via solder test points CSI camera connector Specifications SoC Broadcom BCM2710A1 CPU 64-bit ARM Cortex-A53 (4x 1 GHz) GPU Broadcom VideoCore VI RAM 512 MB LPDDR2 Wireless LAN 2.4 GHz IEEE 802.11b/g/n Bluetooth Bluetooth 4.2, BLE USB 1x micro USB (for data)1x micro USB (for power supply) GPIO HAT-compatible 40-pin GPIO header Video & Audio 1080P HD video & stereo audio via mini-HDMI connector SD card microSD (for operating system and storage) Power 5 VDC / 2.5 A (supplied via micro USB connector) Dimensions 65 x 30 x 5 mm Raspberry Pi Zero 2 W is footprint-compatible with earlier Zero models.

Read more less

The Raspberry Pi Zero W extends the Raspberry Pi Zero family. The Raspberry Pi Zero W has all the functionality of the original Raspberry Pi Zero, but comes with added connectivity consisting of: 802.11 b/g/n wireless LAN Bluetooth 4.1 Bluetooth Low Energy (BLE) Other Features 1 GHz, single-core CPU 512 MB RAM Mini HDMI and USB On-The-Go ports Micro-USB power HAT-compatible 40-pin header Composite video and reset headers CSI camera connector Downloads Mechanical Drawing Schematics

Read more less

With this bundle you can straight away built the over 30 tested and working projects described in the book. This bundle contains: The Raspberry Pi Zero 2 W GO! Book (normal price: €34.95) Raspberry Pi Zero 2 W (normal price: €22.95) The Raspberry Pi Zero 2 W GO! Book A Fast-Lane Ride From Concept to Project The core of the book explains the use of the Raspberry Pi Zero 2 W running the Python programming language, always in simple terms and backed by many tested and working example projects. On part of the reader, familiarity with the Python programming language and some experience with one of the Raspberry Pi computers will prove helpful. Although previous electronics experience is not required, some knowledge of basic electronics is beneficial, especially when venturing out to modify the projects for your own applications. Over 30 tested and working hardware-based projects are given in the book, covering the use of Wi-Fi, communication with smartphones and with a Raspberry Pi Pico W computer. Additionally, there are Bluetooth projects including elementary communication with smartphones and with the popular Arduino Uno. Both Wi-Fi and Bluetooth are key features of the Raspberry Pi Zero 2 W. Some of the topics covered in the book are: Raspberry Pi OS installation on an SD card Python program creation and execution on the Raspberry Pi Zero 2 W Software-only examples of Python running on the Raspberry Pi Zero 2 W Hardware-based projects including LCD and Sense HAT interfacing UDP and TCP Wi-Fi based projects for smartphone communication UDP-based project for Raspberry Pi Pico W communication Flask-based webserver project Cloud storage of captured temperature, humidity, and pressure data TFT projects Node-RED projects Interfacing to Alexa MQTT projects Bluetooth-based projects for smartphone and Arduino Uno communications Raspberry Pi Zero 2 W The small Raspberry Pi puts in the quad-core turbo! Features 64-bit quad-core processor VideoCore IV GPU 512 MB LPDDR2 DRAM 802.11b/g/n wireless LAN Bluetooth 4.2 / Bluetooth Low Energy (BLE) MicroSD card slot Mini HDMI and USB 2.0 OTG ports Micro USB power HAT-compatible 40-pin header Composite video and reset pins via solder test points CSI camera connector Specifications SoC Broadcom BCM2710A1 CPU 64-bit ARM Cortex-A53 (4x 1 GHz) GPU Broadcom VideoCore VI RAM 512 MB LPDDR2 Wireless LAN 2.4 GHz IEEE 802.11b/g/n Bluetooth Bluetooth 4.2, BLE USB 1x micro USB (for data)1x micro USB (for power supply) GPIO HAT-compatible 40-pin GPIO header Video & Audio 1080P HD video & stereo audio via mini-HDMI connector SD card microSD (for operating system and storage) Power 5 VDC / 2.5 A (supplied via micro USB connector) Dimensions 65 x 30 x 5 mm Raspberry Pi Zero 2 W is footprint-compatible with earlier Zero models.

Read more less

The case consists of two parts. It has a standard base featuring a cut-out to allow access to the GPIO, and a choice of three lids: a plain lid, a GPIO lid (allowing access to the GPIO from above), and a camera lid (which, when used with the short camera cable supplied, allows the Raspberry Pi Camera or Camera Noir to be fitted neatly inside it). Included 1x base 3x lids (plain, GPIO, camera) 1x short camera cable 4x rubber feet

Read more less

The official Raspberry Pi mini-HDMI to HDMI (A/M) cable designed for all Raspberry Pi Zero models. 19-pin HDMI Type D(M) to 19-pin HDMI Type A(M) 1 m cable (white) Nickel-plated plugs 4Kp60 compliant RoHS compliant 3 Mohm 300 VDC insulation, withstands 300 VDC for 0.1s

Read more less

The default configuration holds a mini breadboard (included), an SD card adapter, 2x micro SD cards, 2x USB devices, a micro-USB shim and of course the Raspberry Pi Zero itself.Users can decide to use the micro-USB shim slot to hold a micro-HDMI adapter, or you may want to hold a Portsplus or similar GPIO reference card in the SD adapter slot. You can choose to store your USB micro-SD card reader or even other larger USB devices such as the USBDoctor. Use it in whatever way works best for you.All of the Raspberry Pi Zero ports are accessible from the ZeroDock, including the camera port and reset/composite pin header. pHATs are also not obstructed, so you’re free to prototype with your favourite add-on boards.The case is a stylish mix of clear and black acrylic layers, black fixings and a clear breadboard, fitting in well alongside most desktop PCs/monitors.Assembly guide available here.Kit includes 4 layer laser-cut acrylic case Case and Raspberry Pi fixings Mini breadboard

Read more less

The ETH-USB-Hub-Box is a Hub kit with ETH/USB Hub HAT (B) inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. This Hub Box will provide RJ45 Ethernet port and more USB capability for your Zero, make it easy to connect the Internet and sorts of USB devices. Features Designed for Raspberry Pi Zero, compatible with Zero series boards 3x extended USB ports, compatible with USB 2.0 / 1.1 Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH Angle rounded design, smooth hand feeling, 'simple snap' case lid Quality ABS material, dull polish surface, anti-fingerprint Comes with two different lids, changing as you like Included 1x ETH/USB Hub HAT (B) 1x ABS case 1x Rubber feet 4pcs 1x Screws pack 1x Screwdriver Downloads Documentation

Read more less

Features 2.13' capacitive touch e-Paper display, 5-point touch, 250×122 pixels Supports waken up by user-defined gesture No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W Comes with development resources and manual (examples for Raspberry Pi) Included 1x 2.13inch Touch e-Paper HAT 1x ABS case 1x Screwdriver 1x Thermal tape 1x Rubber feet 4pcs 2x Screws Downloads Documentation

Read more less

Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Raspberry Pi with your digits and a RGB LED for notifications. A QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header is also squeezed in so it's a doddle to connect up different kinds of breakouts. It will work with any model of Raspberry Pi with a 40 pin header, but we think it goes with the Raspberry Pi Zero particularly well - we've included a pair of standoffs so you can use to bolt HAT and Raspberry Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT – it's around 5 mm taller than a Raspberry Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will). Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes! Features 2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours) 4x tactile buttons RGB LED Qw/ST (Qwiic/STEMMA QT) connector Breakout Garden / I²C header Pre-soldered socket header for attaching to Raspberry Pi Compatible with all models of Raspberry Pi with a 40-pin header. Fully assembled No soldering required (as long as your RPi has header pins attached). Dimensions: approx 65.5 x 35 x 9 mm (W x H x D, includes header and display). With a Raspberry Pi Zero attached with standoffs, the total depth is 17 mm. Screen usable area: 40.8 x 30.6 mm (L x W) Pinout Schematic Dimensional drawing Display HAT Mini Python library ST7789 Python library Included Display HAT Mini 2x 10 mm standoffs

Read more less

The PoE-ETH-USB-Hub-Box is a Hub kit with PoE/ETH/USB Hub HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small Hub Box and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports. Features Designed for Raspberry Pi Zero, compatible with Zero series boards Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port PoE (Power over Ethernet) feature, 802.3af-compliant Fully isolated SMPS (Switch Mode Power Supply) 3x extended USB ports, compatible with USB 2.0 / 1.1 Angle rounded design, smooth hand feeling, 'simple snap' case lid Quality ABS material, dull polish surface, anti-fingerprint Comes with two different lids, changing as you like Included 1x PoE/ETH/USB Hub HAT kit 1x ABS case 1x Rubber feet 4pcs 1x Screws pack Downloads Documentation

Read more less

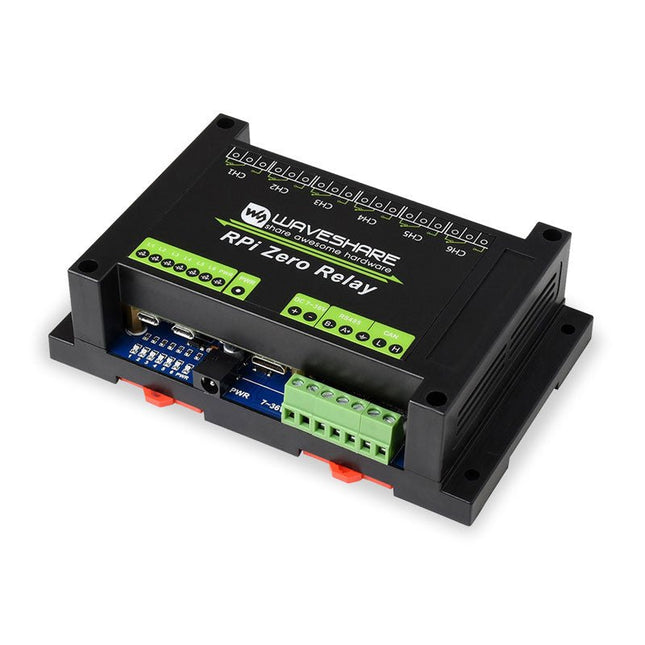

This Industrial 6-Channel Relay Module is suitable for Raspberry Pi Zero with pre-soldered pinheader. It provides RS485/CAN Bus, Power Supply Isolation, and Photocoupler Isolation.Features RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC ABS protection enclosure with rail-mount support, easy to install, safe to use Comes with development resources and manual (wiringPi and python examples) Specifications Operating voltage: 7~36 V (industrial input voltage compatible) Relay channel: 6ch Communication Protocol: RS485, CAN Contact form: 1NO 1NC Included 1x ABS protection enclosure (top and bottom) 1x RPi Zero Relay 1x Screwdriver 1x OPTIONS 12 V, 1 A power adapter 1x Screws pack DownloadsDocumentation

Read more less

The Picon Zero is an add-on for the Raspberry Pi. It has the same size as a Raspberry Pi Zero, making it ideal to function as a pHat. Of course, it can be used on any other Raspberry Pi via a 40-pin GPIO connector.As well as two full H-Bridge motor drivers, the Picon Zero has several Input/Output pins giving you multiple configuration options. That allows you to easily add outputs or analog inputs to your Raspberry Pi without any complicated software or kernel-specific drivers. At the same time, it opens up 5 GPIO pins from the Raspberry Pi, and it provides the interface for an HC-SR04 ultrasonic distance sensor.The Picon Zero comes with all components, including the headers and screw terminals, fully soldered. Soldering isn't required. You can use it right out of the box.Features pHat format PCB: 65 mm x 30 mm Two full H-Bridge motor drivers. Drive up to 1.5 A continuously per channel, at 3 V - 11 V. Each motor output has both a 2-pin male header and a 2-pin screw terminal. The motors can be powered from the Picon Zero's 5 V or an external power source (3 V - 11 V). The Picon Zero's 5 V can be selected to be from the Raspberry Pi's 5 V line, or a USB connector on the Picon Zero. That means that you can effectively have 2 USB battery banks: one to power the servos and motors on the Picon Zero and the other to power the Pi. 4 Inputs that can accept up to 5 V. These inputs can be configured as follows: Digital inputs Analog inputs DS18B20 DHT11 6 Outputs that can drive 5 V and be configured as: Digital Output PWM Output Servo NeoPixel WS2812 All Inputs and Outputs use GVS 3-pin male headers. 4-pin female header that connects directly to an HC-SR04 ultrasonic distance sensor. 8-pin female header for Ground, 3.3 V, 5 V, and 5 GPIO signals allowing you to add their additional features. Hardware ConfigurationPicon Zero has two jumpers for setting the hardware configuration. Ensure that you have placed them in the correct position. JP1 – Board 5 V Selector. This jumper selects where to get the 5 V power from for the Picon Zero Outputs. The options are: Jumper at the top between RPI and 5 V. The 5 V power for the board is taken from the Raspberry Pi pins on the GPIO connector. Because of the low power output devices and the 5 V motors, all devices can be powered with a single 5 V power input. Jumper at the bottom between USB and 5 V. The 5 V power is taken from the microUSB connector on the Picon Zero. Useful for higher power output devices, since you can provide extra power through the micro-USB connector on the board JP2 – Motor Power Selector. This jumper selects where the motors get the power. The two options here are the following: Jumper at the top between MotorPower and Vin. The motors are driven via the 2-pin screw terminal. The voltage can be between 3 V and 11 V. Useful for motors that require a voltage different from 5 V, or that require more current than is available on either of the USB input connectors Jumper at the bottom between 5 V and MotorPower. The motors are driven from the board's 5 V. Raspberry Pi ConfigurationThe Picon Zero is an I²C device. Make sure your Raspberry Pi is set up correctly to use I²C and SMBus: sudo apt-get install python-smbus python3-smbus python-dev python3-dev sudo nano /boot/config.txt Add the following lines at the end of the file dtparam=i2c1=on dtparam=i2c_arm=on Press Ctrl-X and use the default prompts to save sudo reboot Plugin the Picon Zero onto the Pi and run i2cdetect -y 1If everything goes well, you will see the Picon Zero showing up as address 22 as shown below:

Read more less

The Zero-DISP-7A is a 7″ touch display kit for Raspberry Pi Zero with IPS Display Expansion Board featuring 1024x600 pixels and 5-point capacitive touch. Features 7-inch IPS touch display with a hardware resolution of 1024x600. 5-point touch control, toughened glass panel with up to 6H hardness. When working with Raspberry Pi Zero, supports Raspberry Pi OS, Ubuntu, Kali, and Retropie systems. Onboard ETH/USB HUB function, adapting RJ45 and USB port serving as an alii-in-one mini computer. Onboard 4-pin speaker header and 3.5 mm audio jack, support for HDMI audio output. Specifications Zero connectors Mini HDMI port, 2x USB Micro male port (1x HUB, 1x Power supply) Display 7-inch 1024 x 600 pixels, 5-point capacitive touch Networking 100M Ethernet RJ45 port USB 2x USB 2.0 port Audio Headphone jack, 4-pin speaker header Power input USB Type-C Interface, 5V Included 1x Zero-DISP-7A 1x Button board 1x Button board cable (9 cm) 4x White nylon spacer Downloads Wiki

Read more less

The FLIRC Raspberry Pi Zero Case is compatible with Raspberry Pi Zero W and the newer Raspberry Pi Zero 2 W. The design of the FLIRC Zero Case is based on the original FLIRC case. As with the original, the aluminum housing serves as protection and, thanks to the contact point on the processor, as a passive cooler. Ideal for silent operation. In addition to a normal cover that encloses and protects the Raspberry Pi Zero, there is a second cover that allows access to the GPIO pins through a small opening.

Read more less

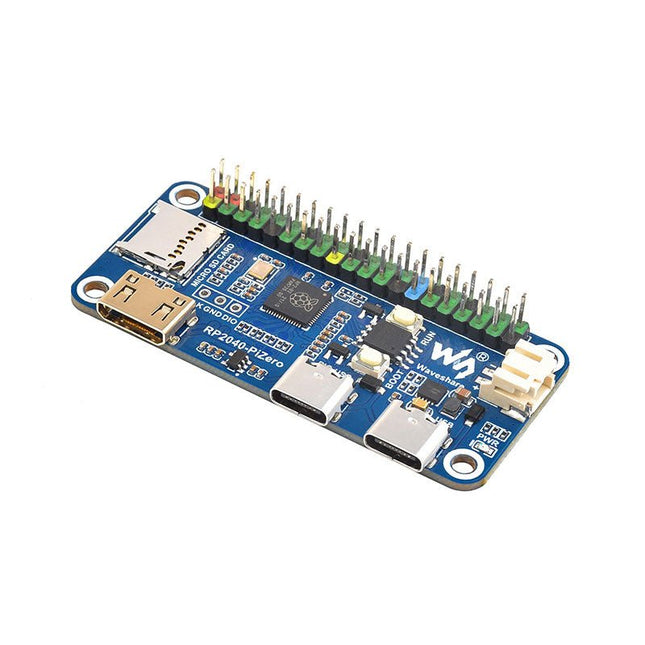

Waveshare RP2040-PiZero is a high-performance and cost-effective microcontroller board with onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40-pin GPIO header, easy to develop and integrate into the products. Features RP2040 microcontroller chip designed by Raspberry Pi Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz 264 KB of SRAM, and 16 MB of onboard Flash memory Onboard DVI interface can drive most HDMI screens (DVI compatibility required) Supports using as a USB host or slave via onboard PIO-USB port Onboard TF card slot for reading and writing TF card Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios USB 1.1 with device and host support Drag-and-drop programming using mass storage over USB Low-power sleep and dormant modes 2x SPI, 2x I²C, 2x UART, 4x 12-bit ADC, 16x controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip Downloads Wiki
