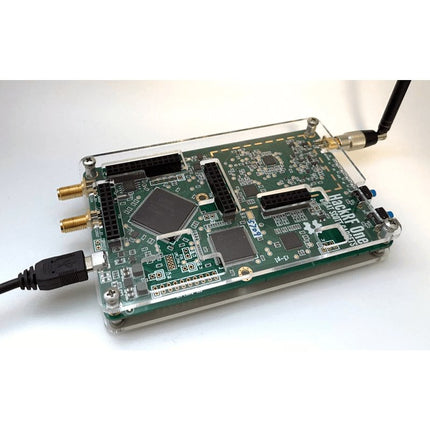

Acrylic Case for HackRF One SDR

  • BrandGreat Scott Gadgets

Description

This clear acrylic case is the official case for the HackRF One board. It can replace the standard black plastic case of the HackRF One.

Assembly Instructions

  • Use a guitar pick or spudger to extract the HackRF One circuit board from the black plastic case.
  • Insert one long screw into each corner of the bottom acrylic panel. Secure each long screw with a short (5 mm) spacer on the opposite side of the panel.
  • Place the HackRF One circuit board (facing up) on top of the bottom panel, fitting the ends of the long screws through the corner mounting holes of the circuit board.
  • Secure the circuit board with one long (6 mm) spacer in each corner.
  • Place the top acrylic panel on top of the circuit board, aligning the cutouts with the circuit board’s expansion headers.
  • Secure each corner with a short screw.
  • Note: Do not overtighten! Hand-tighten only at every step.
Product form

This clear acrylic case is the official case for the HackRF One board. It can replace the standard black plastic case... Read more

€ 17,95 incl. VAT
Members € 16,16

    • Ship today? Order within Nov 21, 2024 17:00:00 +0100

    Details

    SKU: 20573
    EAN: 0636824571220

    Description

    This clear acrylic case is the official case for the HackRF One board. It can replace the standard black plastic case of the HackRF One.

    Assembly Instructions

    • Use a guitar pick or spudger to extract the HackRF One circuit board from the black plastic case.
    • Insert one long screw into each corner of the bottom acrylic panel. Secure each long screw with a short (5 mm) spacer on the opposite side of the panel.
    • Place the HackRF One circuit board (facing up) on top of the bottom panel, fitting the ends of the long screws through the corner mounting holes of the circuit board.
    • Secure the circuit board with one long (6 mm) spacer in each corner.
    • Place the top acrylic panel on top of the circuit board, aligning the cutouts with the circuit board’s expansion headers.
    • Secure each corner with a short screw.
    • Note: Do not overtighten! Hand-tighten only at every step.
