Description

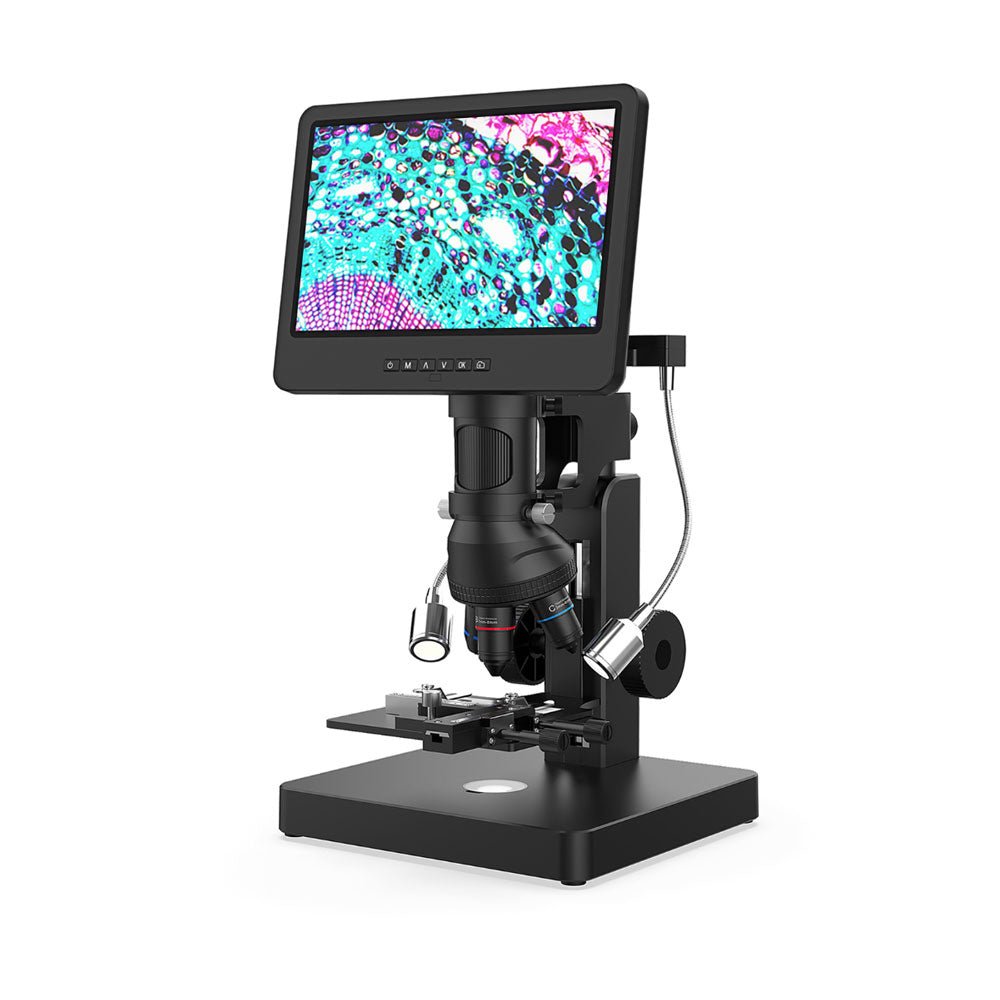

This versatile digital microscope covers a wide magnification range (18-720x, 1560-2040x, 2760-4080x, 3600-5100x, 60-240x) with 5 lenses for hobby, industrial and biologic purposes.

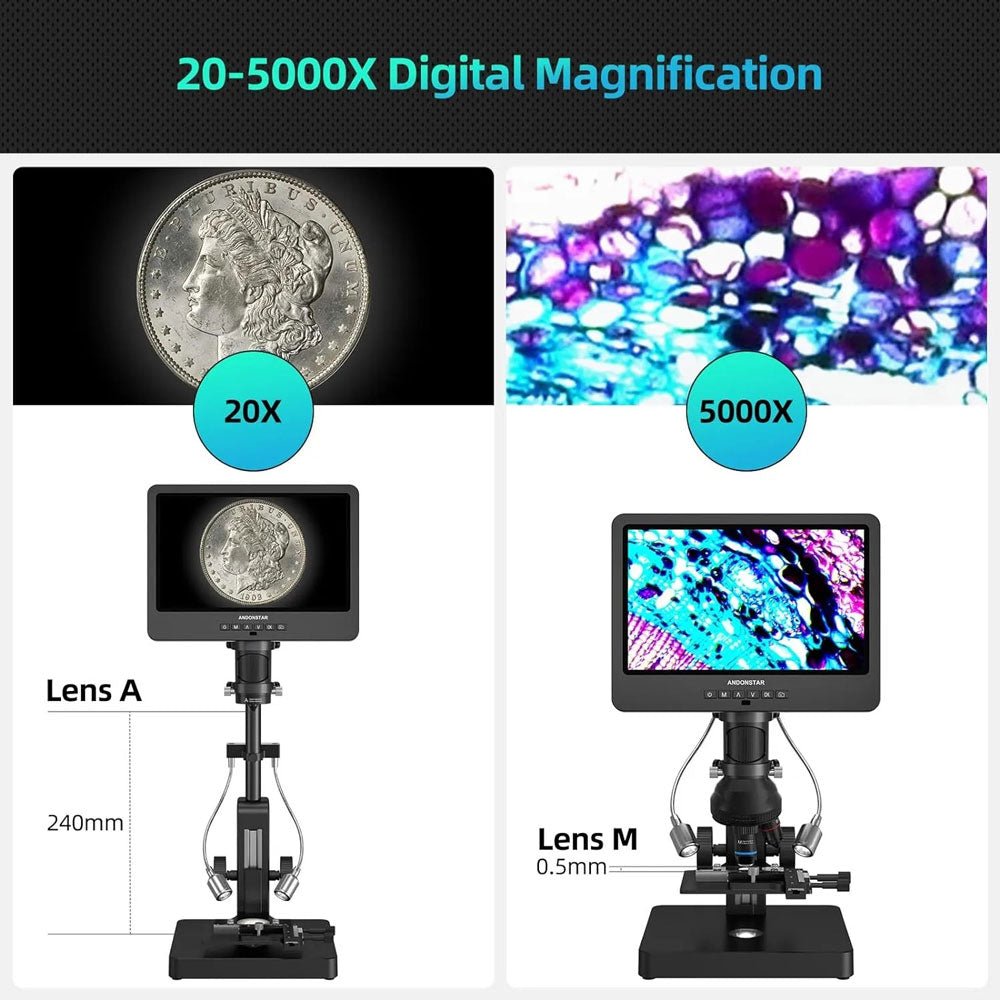

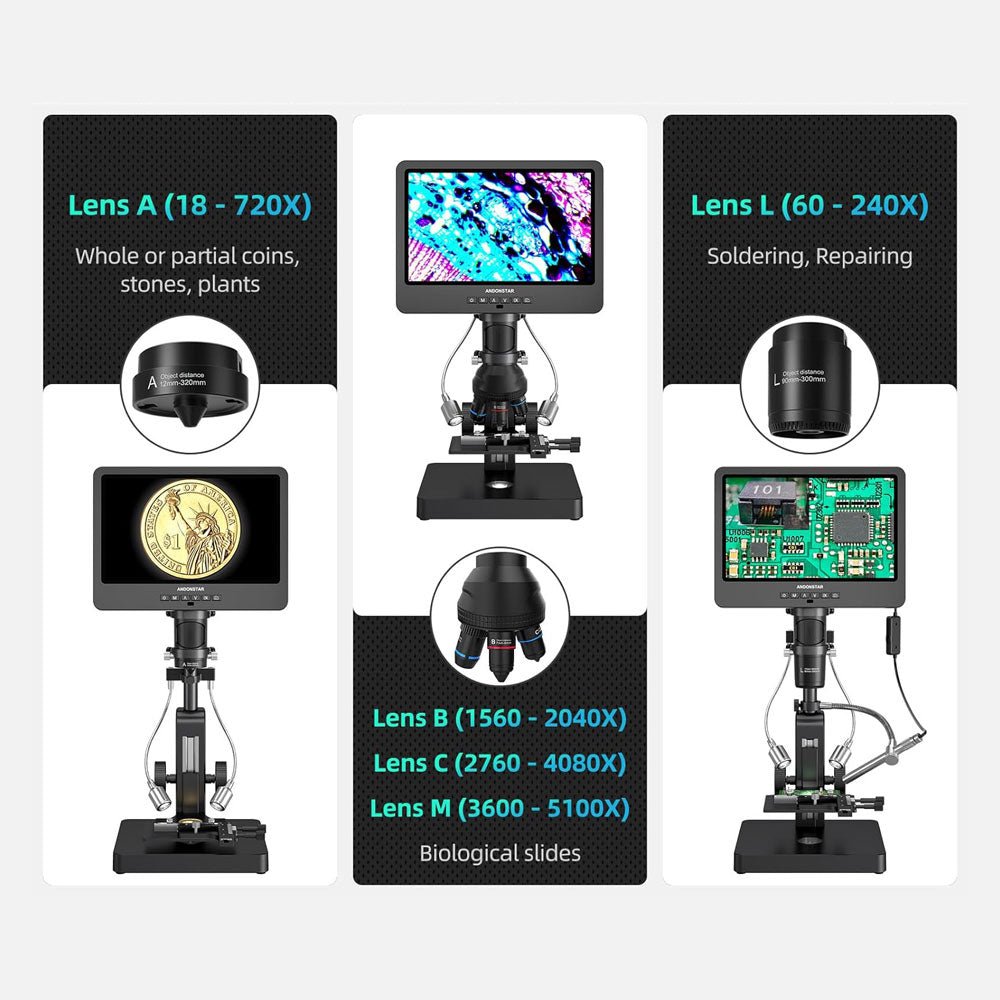

Lens A (18-720x) can be used to observe whole coins or parts, circuit boards, plants, stones, etc. With lens B (1560-2040x), C (2760-4080x) and M (3600-5100x) you can observe biological slides. Lens L is ideal for soldering and repair work.

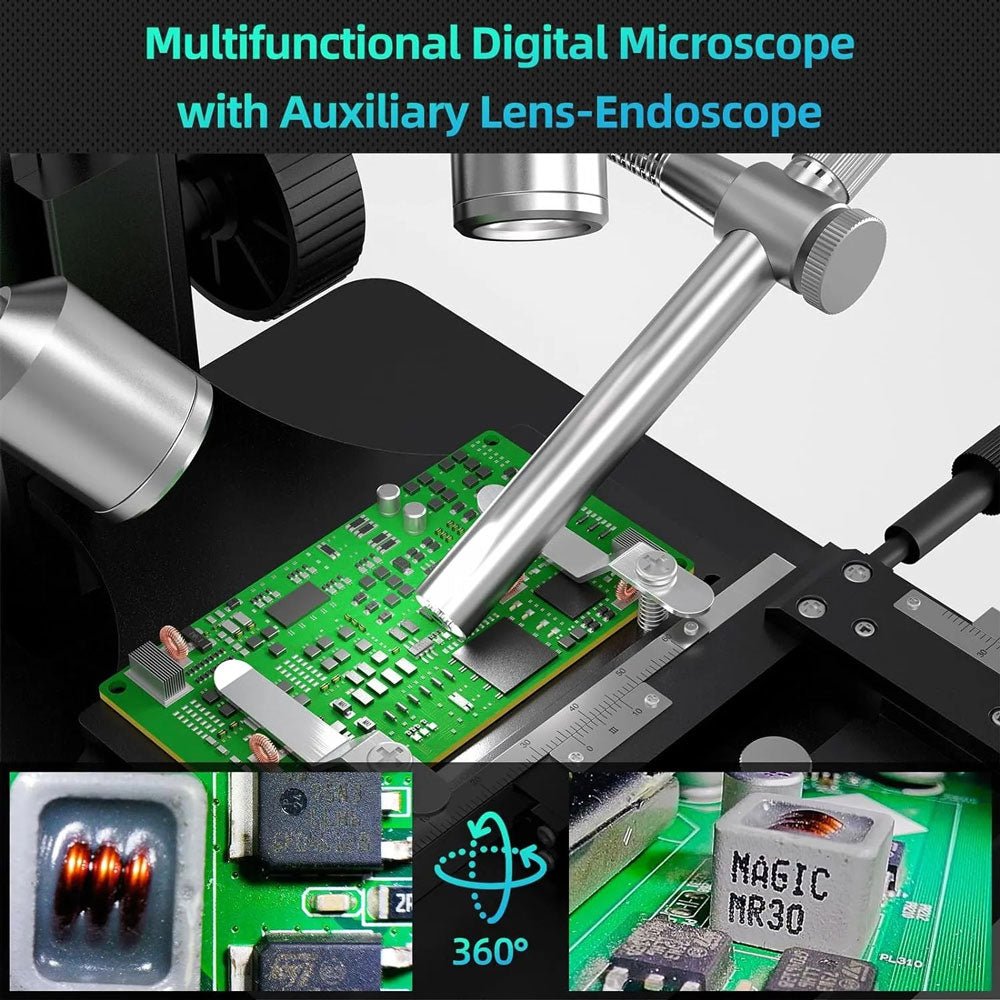

In addition, the microscope has an endoscope for clear observation of the sides of components and inner tubes, allowing 360° viewing without blind spots.
Specifications
| Magnification |
Lens A |
18-720x |
| Lens B |
1560-2040x |
| Lens C |
2760-4080x |
| Lens M |
3600-5100x |
| Lens L |
60-240x |

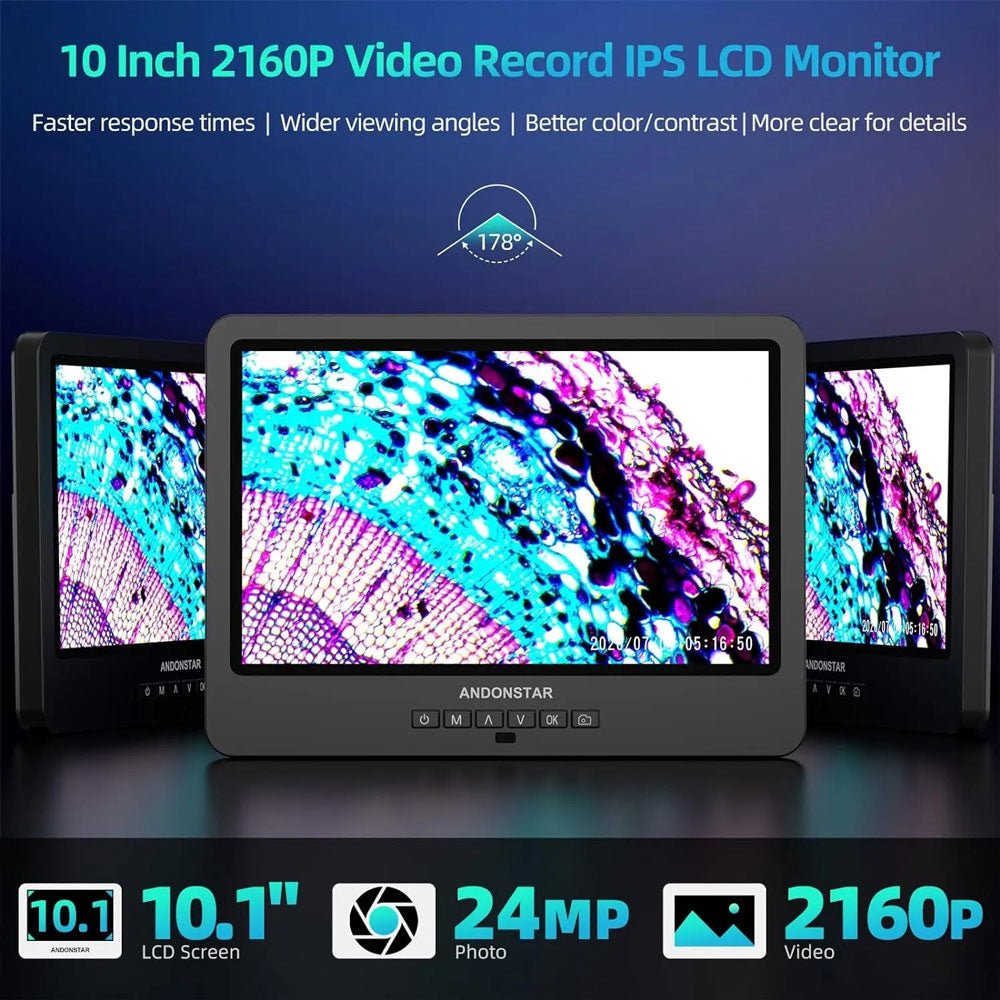

| Screen size |
10 inch (25.7 cm) |
| Video resolution (max.) |
UHD 2880x2160 (24fps) |
| Video format |
MP4 |
| Photo format |
JPG |
| Photo resolution |
5600x2400 (with interpolation) |
| Frame rate |
Max. 120fps |
| HDMI output |
Yes (only HDMI monitor displays) |
| PC output |
Yes |
| Power supply |
USB 5 V DC (not included) |
| Stand material |
Metal |
| Stand size |
20 x 19 x 40 cm |
Included
- 1x Andonstar AD269S Digital Microscope
- 1x Metal stand with 2 LEDs

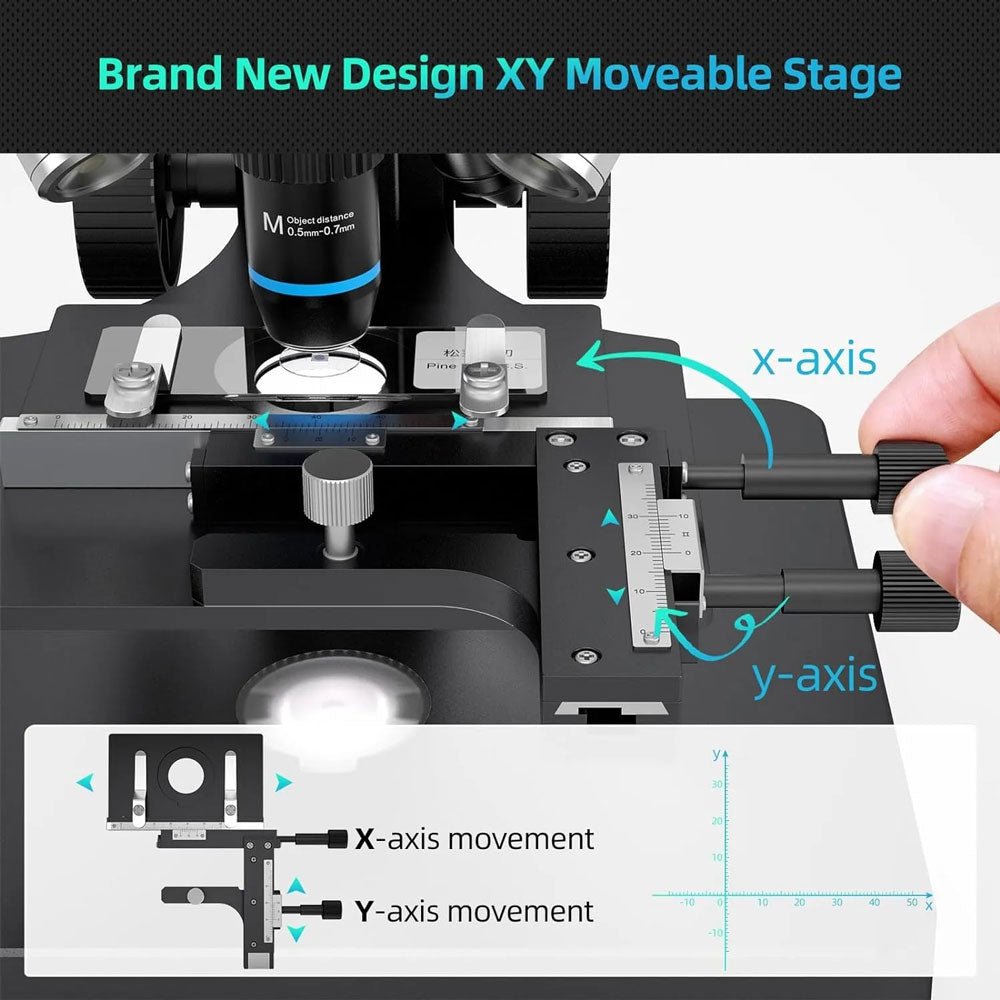

- 1x X-Y Moveable stage
- 1x Lens A
- 1x Lens set (B, C, M)
- 1x Lens L
- 1x Endoscope (+ accessories)
- 1x USB cable
- 1x HDMI cable
- 1x Remote control
- 1x Dimmer cable
- 3x Backdrop board
- 5x Biological slides
- 1x 32 GB microSD card
- 1x Observation box
- 1x Tweezers
- 1x Manual
