Andonstar AD407 7" HDMI Digital Microscope

  • BrandAndonstar

Description

Examine your circuits with high precision and solder even the smallest SMDs and elements without any hassle.

Features

  • Multifunctional HDMI Digital Microscope features Full HD, comfortable headroom, improved ergonomy, multiple output signals with different resolutions.
  • Tilt angle of the wide LCD monitor is adjustable.
  • Comes with remote control.
  • Can be used as stand-alone.

Specifications

Screen size 7 inch (17.8 cm)
Image sensor 4 MP
Video output UHD 2880x2160 (24fps)
FHD 1920x1080 (60fps/30fps)
HD 1280x720 (120fps)
Video format MP4
Magnification Up to 270 times (27 inch HDMI monitor)
Photo resolution Max. 12 MP (4032x3024)
Photo format JPG
Focus range Min. 5 cm
Frame rate Max. 120fps (under 600 Lux Brightness & HDP120)
Video interface HDMI
Storage microSD card (up to 32 GB)
Power source 5 V DC
Light source 2 LEDs with the stand
Stand size 20 x 12 x 19 cm

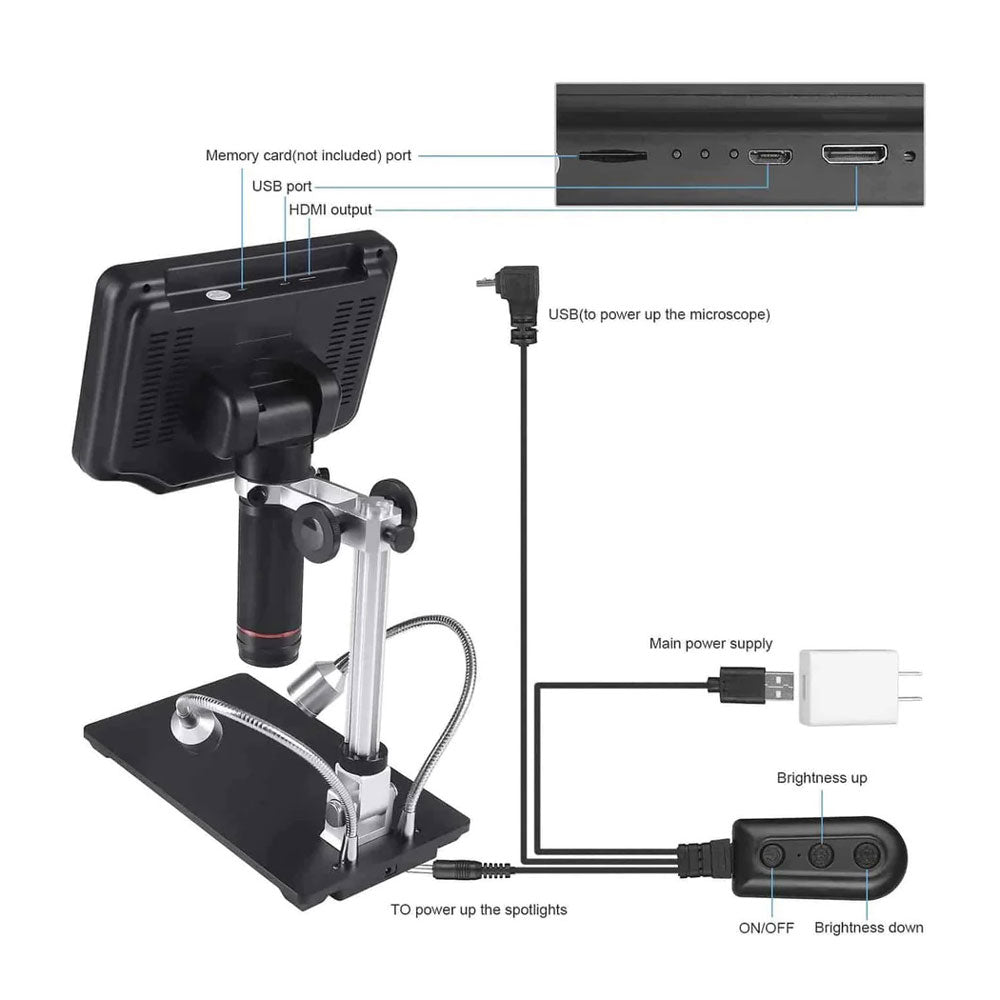

Included

  • 1x Andonstar AD407 Digital Microscope
  • 1x Metal stand with 2 LEDs
  • 1x Optical bracket
  • 1x UV filter
  • 1x IR remote
  • 1x Switch cable
  • 1x Power adapter
  • 1x HDMI cable
  • 2x Screws
  • 1x Screwdriver
  • 1x User manual

Downloads

Model Comparison

AD407 AD407 Pro AD409 AD409 Pro-ES
Screen size 7 inch (17.8 cm) 7 inch (17.8 cm) 10.1 inch (25.7 cm) 10.1 inch (25.7 cm)
Image sensor 4 MP 4 MP 4 MP 4 MP
Video output 2160p 2160p 2160p 2160p
Interfaces HDMI HDMI USB, HDMI, WiFi USB, HDMI, WiFi
Video format MP4 MP4 MP4 MP4
Magnification Up to 270x Up to 270x Up to 300x Up to 300x
Photo resolution Max. 4032x3024 Max. 4032x3024 Max. 4032x3024 Max. 4032x3024
Photo format JPG JPG JPG JPG
Focus distance Min. 5 cm Min. 5 cm Min. 5 cm Min. 5 cm
Frame rate Max. 120f/s Max. 120f/s Max. 120f/s Max. 120f/s
Storage microSD card microSD card microSD card microSD card
PC support No No Windows Windows
Mobile connection No No WiFi + Measurement WiFi + Measurement
Power source 5 V DC 5 V DC 5 V DC 5 V DC
Light source 2 LEDs with the stand 2 LEDs with the stand 2 LEDs with the stand 2 LEDs with the stand
Endoscope No No No Yes
Stand size 20 x 12 x 19 cm 20 x 18 x 32 cm 18 x 20 x 30 cm 18 x 20 x 32 cm
Weight 1.6 kg 2.1 kg 2.2 kg 2.5 kg
Price €259.00
€199.00		 €289.00
€229.00		 €399.00
€279.00		 €449.00
€299.00
