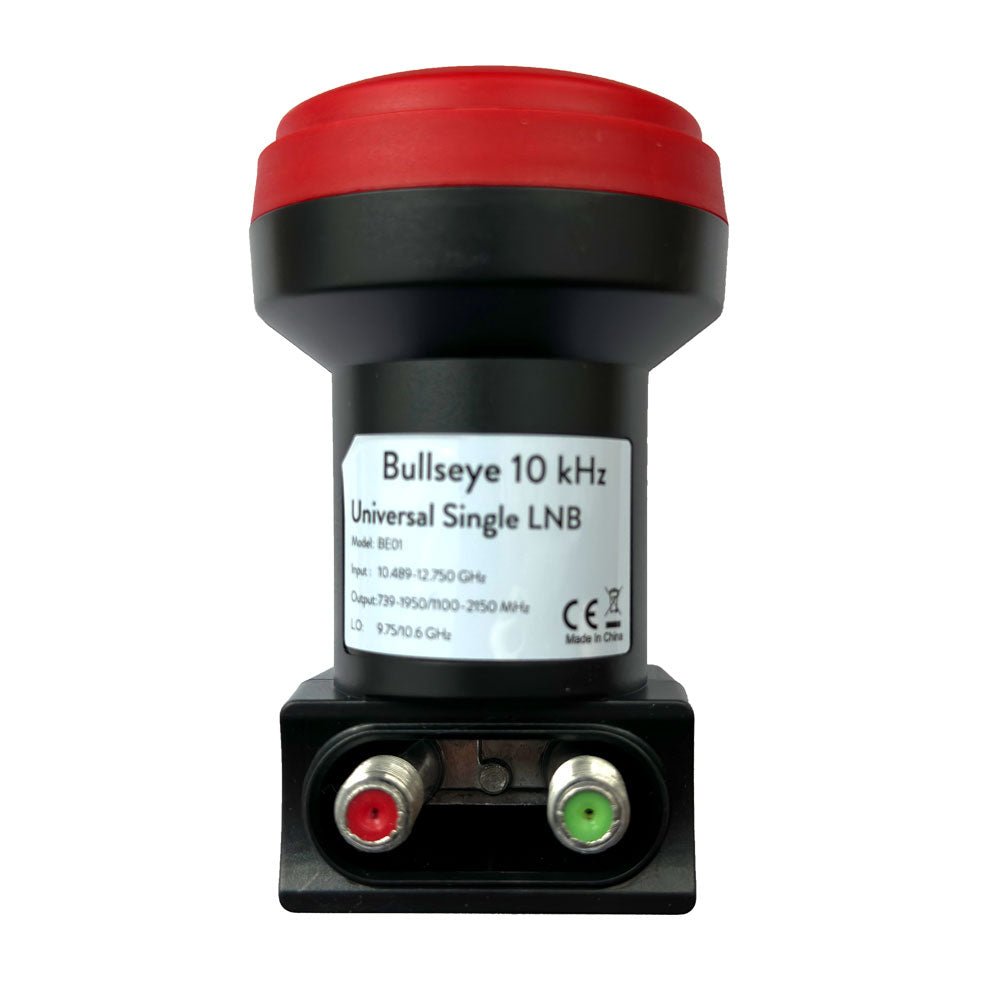

Bullseye 10 kHz TCXO LNB for QO-100

  • BrandRTL-SDR
Description

Description

The Bullseye LNB is the world's most precise and stable DTH/consumer Ku-band down converter. Even a VSAT LNBF costing hundreds of dollars more is no match for the performance of the Bullseye 10K LNB. Each unit is calibrated at the factory to within 1 kHz of absolute precision against a GPS-locked spectrum analyzer. Under outdoor conditions, the stability of the LNB is well within 10 kHz of offset. As a bonus feature, the Bullseye 10K provides access to its internal 25 MHz TCXO through the secondary F-connector. This reference output can be used to directly monitor the performance of the TCXO over time.

Features

  • Bullseye 10 kHz BE01
  • Universal single output LNB
  • Frequency stability within 10 kHz in normal outdoor environment
  • Phase locked loop with 2 PPM TCXO
  • Factory calibration within 1 kHz utilizing GPS-locked spectrum analyzers
  • Ultra high precision PLL employing proprietary frequency control system (patent pending)
  • Digitally controlled carrier offset with optional programmer
  • 25 MHz output reference available on secondary F-connector (red)

Specifications

  • Input frequency: 10489-12750 MHz
  • LO frequency: 9750/10600 MHz
  • LO frequency stability at 23°C: ±10 kHz
  • LO frequency stability at −20-60°C: ±30 kHz
  • Gain: 50-66 dB
  • Output frequency: 739-1950 MHz (low band) and 1100-2150 MHz (high band)
  • Return loss of 8 dB (739-1950 MHz) and 10 dB (1100-2150 MHz)
  • Noise figure: 0.5 dB
Product form

The Bullseye LNB is the world's most precise and stable DTH/consumer Ku-band down converter. Even a VSAT LNBF costing hundreds... Read more

€ 24,95 incl. VAT
Members € 22,46

      Details

      SKU: 20684
      EAN: 850012437017

      Description

      Description

      The Bullseye LNB is the world's most precise and stable DTH/consumer Ku-band down converter. Even a VSAT LNBF costing hundreds of dollars more is no match for the performance of the Bullseye 10K LNB. Each unit is calibrated at the factory to within 1 kHz of absolute precision against a GPS-locked spectrum analyzer. Under outdoor conditions, the stability of the LNB is well within 10 kHz of offset. As a bonus feature, the Bullseye 10K provides access to its internal 25 MHz TCXO through the secondary F-connector. This reference output can be used to directly monitor the performance of the TCXO over time.

      Features

      • Bullseye 10 kHz BE01
      • Universal single output LNB
      • Frequency stability within 10 kHz in normal outdoor environment
      • Phase locked loop with 2 PPM TCXO
      • Factory calibration within 1 kHz utilizing GPS-locked spectrum analyzers
      • Ultra high precision PLL employing proprietary frequency control system (patent pending)
      • Digitally controlled carrier offset with optional programmer
      • 25 MHz output reference available on secondary F-connector (red)

      Specifications

      • Input frequency: 10489-12750 MHz
      • LO frequency: 9750/10600 MHz
      • LO frequency stability at 23°C: ±10 kHz
      • LO frequency stability at −20-60°C: ±30 kHz
      • Gain: 50-66 dB
      • Output frequency: 739-1950 MHz (low band) and 1100-2150 MHz (high band)
      • Return loss of 8 dB (739-1950 MHz) and 10 dB (1100-2150 MHz)
      • Noise figure: 0.5 dB

      Customer Reviews

      Based on 3 reviews
      100%
      (3)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      G
      G.L.
      Bullseye

      Funktioniert wie er soll, Anwendung QO 100
      jederzeit wieder

      D
      DV
      Bullseye

      Fijne LNB en niet te duur. Daarnaast zeer snel ontvangen.

      K
      K.H.
      QO-100

      Funktioniert einwandfrei. sehr stabil, zieht 60-80mA, PSK Bake fast nicht nötig. Sehr empfindlich, auch ohne Sat-Spiegel ist mit dem LNB die Bake im Wasserfall zu erkennen.
