Description
CrowVision 11.6-inch touch screen is designed for all-in-one machines. It features a 1366 x 768 high-resolution screen and IPS panel, providing a superior visual experience. The industrial design-style rear-fixed metal structure is compatible with various single-board computers (SBCs), with a reasonable layout and neat wiring, making it easy to power up and use with simple operations.
The screen uses HDMI-compatible communication and supports capacitive multi-touch. It has reserved interfaces and buttons for speakers and other accessories, making it adaptable to different usage scenarios. It can be used with a variety of commonly available single-board computers such as Raspberry Pi, Jetson Nano, and is plug-and-play, while also being fully compatible with the operating systems of single-board computers (such as Raspbian, Ubuntu, Windows, Android, Mac OS, and Chrome OS, etc.).
This screen can be widely used in automation application control system displays, personal DIY projects, secondary screen/second window displays, single-board computer audio-video display equipment, HDMI communication devices, game console expansion screens, and other scenarios.
Features
- 11.6-inch high-resolution screen with 1366 x 768 resolution, IPS panel, and 178° wide viewing angle provides a better visual experience
- Unique rear fixing structure with sliding fixing pillars, compatible with most single-board computer models, easy to assemble
- Wide compatibility, compatible with multiple operating systems (Raspbian, Ubuntu, Windows, Android, Mac OS, and Chrome OS)
- Supports audio, video, and capacitive touch, plug and play
- Integrates a variety of peripheral interfaces (such as speakers, headphones, keypads, touchscreens) and onboard OSD adjustment keys
- The mainboard is equipped with power conversion function of output 5 V/3 A, not need to separately connect an external power supply for the single-board computer.
Specifications
- Display size: 11.6 inch
- Touch type: 5-point Capacitive Touch
- Resolution: 1366 x 768
- Color depth: 16M
- Viewing angle: 178° wide viewing angle
- Display type: IPS Panel
- Screen type: TFT-LCD
- External power supply: 12 V/2 A
- Digital input: HDMI-compatible interface
- Interfaces: 1x Keypad interface, 1x power supply 5 V output, 1x Mini HD interface, 1x touch interface, 1x speaker interface, 1x headphone socket, 1x power supply 12 V input
- Compatibility system: Raspbian, Ubuntu, Windows, Android, Mac OS, and Chrome OS, etc.
- Active Area: 256.13 x 144 mm
- Dimensions: 290.8 x 184.2 mm

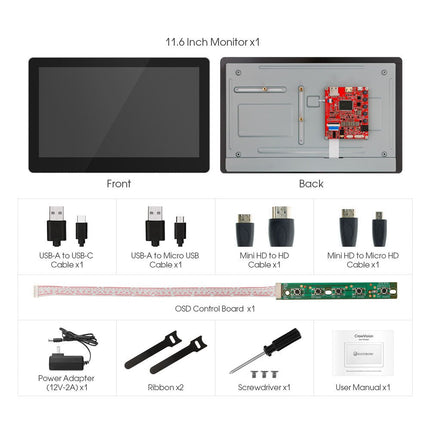

Included
- 1x 11.6-inch capacitive touch ccreen
- 1x USB-A to USB-C cable
- 1x USB-A to micro B cable
- 1x HD to mini HD cable
- 1x Micro HD to mini HD cable
- 1x OSD control board
- 1x Power adapter
- 1x Screwdriver
- 2x Ribbon
- 1x Manual
