Description
The CubeCell series is designed primarily for LoRa/LoRaWAN node applications.
Built on the ASR605x platform (ASR6501, ASR6502), these chips integrate the PSoC 4000 series MCU (ARM Cortex-M0+ Core) with the SX1262 module. The CubeCell series offers seamless Arduino compatibility, stable LoRaWAN protocol operation, and straightforward connectivity with lithium batteries and solar panels.

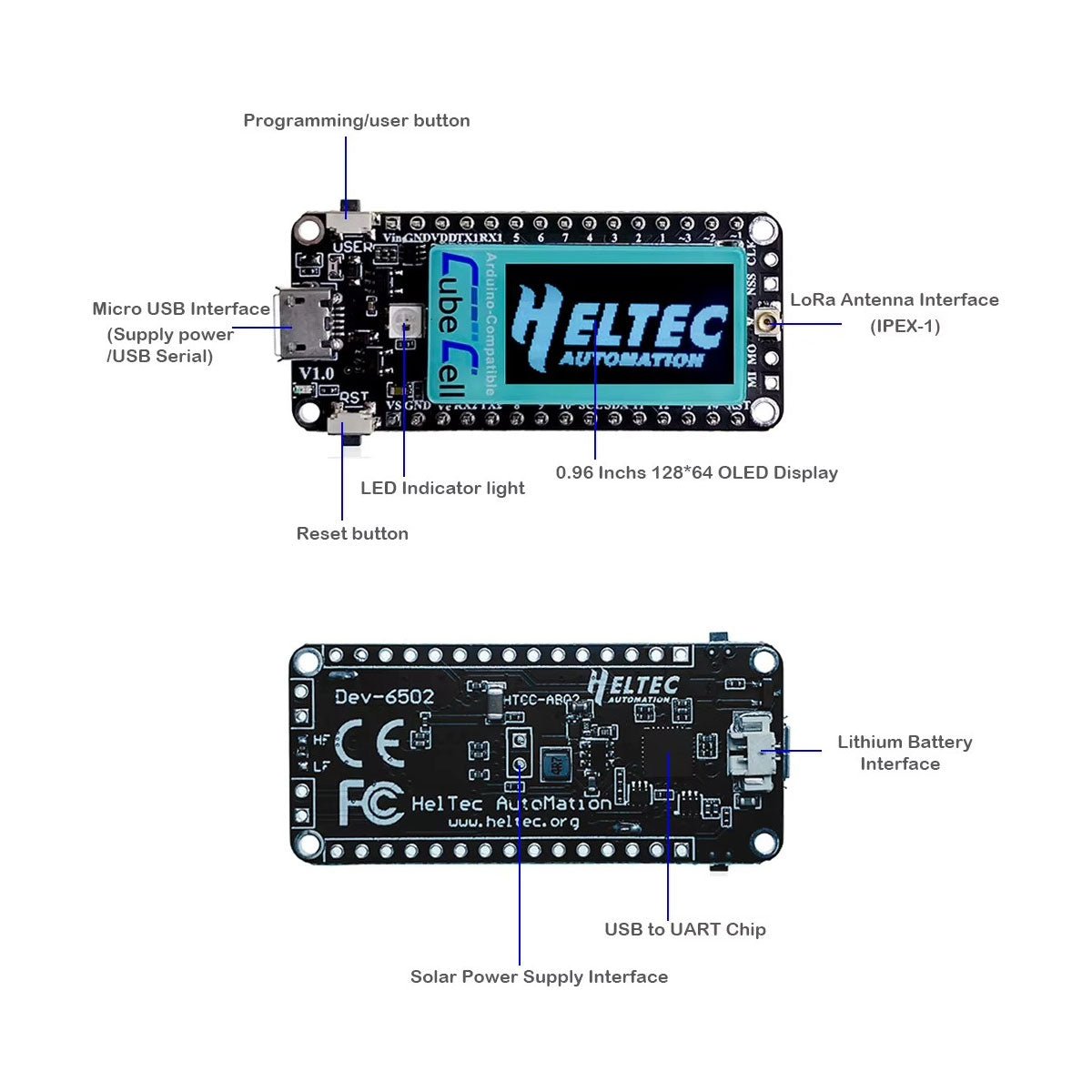

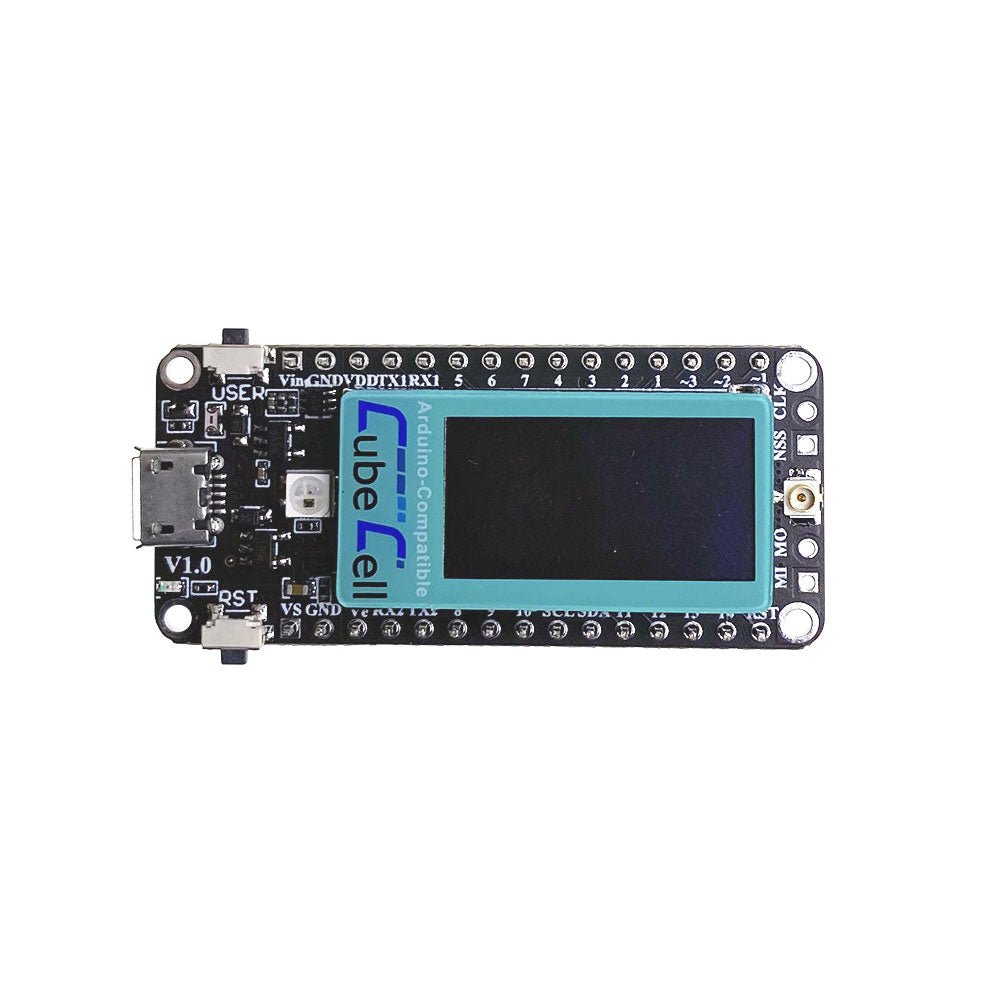

The HTCC-AB02 is a developer-friendly board, ideal for quickly testing and validating communication solutions.
Features
- Arduino compatible
- Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262
- LoRaWAN 1.0.2 support
- Ultra low power design, 3.5 uA in deep sleep
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB/battery power automatic switching)
- Good impendence matching and long communication distance
- Onboard solar energy management system, can directly connect with a 5.5~7 V solar panel
- Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
- Onboard 0.96-inch 128x64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information
Specifications
| Main Chip |
ASR6502 (48 MHz ARM Cortex-M0+ MCU) |
| LoRa Chipset |
SX1262 |
| Frequency |
863~870 MHz |
| Max. TX Power |
22 ±1 dBm |
| Max. Receiving Sensitivity |
−135 dBm |
| Hardware Resource |
2x UART
1x SPI
2x I²C
1x SWD
3x 12-bit ADC input
8-channel DMA engine
16x GPIO |
| Memory |
128 Kb FLASH
16 Kb SRAM |
| Power consumption |
Deep sleep 3.5 uA |
| Interfaces |
1x Micro USB
1x LoRa Antenna (IPEX)
2x (15x 2.54 Pin header) + 3x (2x 2.54 Pin header) |
| Battery |
3.7 V lithium battery (power supply and charging) |
| Solar Energy |
VS pin can be connected to 5.5~7 V solar panel |
| USB to Serial Chip |
CP2102 |
| Display |
0.96" OLED (128 x 64) |
| Operating temperature |
−20~70°C |
| Dimensions |
51.9 x 25 x 8 mm |
Included
- 1x CubeCell HTCC-AB02 Development Board
- 1x Antenna
- 1x 2x SH1.25 battery connector
