DIY Mini Digital Oscilloscope Kit

Description

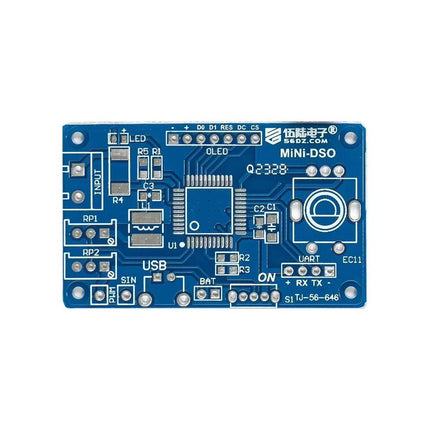

The DIY Mini Digital Oscilloscope Kit (with shell) is an easy-to-build kit for a tiny digital oscilloscope. Besides the power switch, it has only one other control, a rotary encoder with a built-in pushbutton. The kit's microcontroller comes preprogrammed. The 0.96" OLED display has a resolution of 128 x 64 pixels. The oscilloscope features one channel that can measure signals up to 100 kHz. The maximum input voltage is 30 V, the minimum voltage is 0 V.

The kit consists of through-hole components (THT) are surface-mount devices (SMD). Therefore, assembling the kit means soldering SMD parts, which requires some soldering experience.

Specifications

  • Vertical range: 0 to 30 V
  • Horizontal range: 100 µs to 500 ms
  • Trigger type: auto, normal and single
  • Trigger edge: rising and falling
  • Trigger level: 0 to 30 V
  • Run/Stop mode
  • Automatic frequency measurement
  • Power: 5 V micro-USB
  • 10 Hz, 5 V sinewave output
  • 9 kHz, 0 to 4.8 V square wave output
  • Display: 0.96-inch OLED screen
  • Dimensions: 57 x 38 x 26 mm

    Additional information
Product form

The DIY Mini Digital Oscilloscope Kit (with shell) is an easy-to-build kit for a tiny digital oscilloscope. Besides the power... Read more

€ 19,95€ 17,95 incl. VAT
