DIYIC Proto Board Kit

  • BrandEvil Mad Science

Description

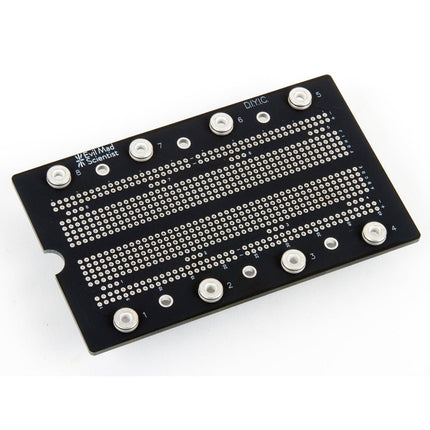

The matte-black circuit board is extra thick and has subtle white markings, including an alphanumeric grid and PIN labels. The wiring pattern — that of classic breadboards — is easy to see by looking at the exposed traces on the bottom of the board.

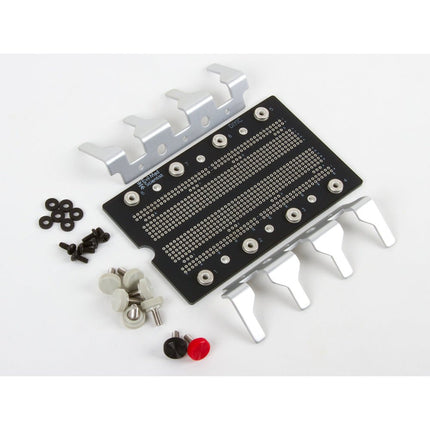

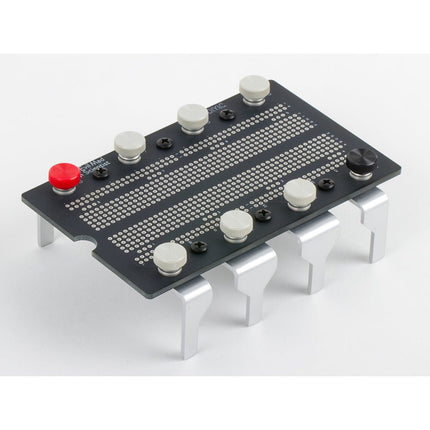

The kit comes complete with the 'Integrated Circuit Leg' stand and 8 colour-coded thumbscrew terminal posts. Using the terminal posts and solder points, you can hook up to your 'IC' with bare wires, lugs, alligator clips, and/or solder joints. Connections to the 8 terminal posts are through the three-position strips on the PCB; each is labelled with the corresponding PIN.

Features

  • Anodized aluminium stand
  • 8-32 size press-fit threaded inserts (8 pieces) pre-installed in the protoboard
  • All materials (including the circuit board and stand) are RoHS compliant (lead-free)
  • Tri lobular thread forming screws (6 pieces, black, 6-32 thread size) and spacers for mounting the stand.
  • Dimensions: 13.25 cm × 8.06 cm x 2.54 mm
  • Dimensions assembled: 13.25 cm × 9.9 cm × 4.3 cm
Product form

The matte-black circuit board is extra thick and has subtle white markings, including an alphanumeric grid and PIN labels. The... Read more

€ 34,95 incl. VAT
Members € 31,46

      Shipping may take longer during the festive season.

    Details

    SKU: 19734
    EAN: 019734

    Description

    The matte-black circuit board is extra thick and has subtle white markings, including an alphanumeric grid and PIN labels. The wiring pattern — that of classic breadboards — is easy to see by looking at the exposed traces on the bottom of the board.

    The kit comes complete with the 'Integrated Circuit Leg' stand and 8 colour-coded thumbscrew terminal posts. Using the terminal posts and solder points, you can hook up to your 'IC' with bare wires, lugs, alligator clips, and/or solder joints. Connections to the 8 terminal posts are through the three-position strips on the PCB; each is labelled with the corresponding PIN.

    Features

    • Anodized aluminium stand
    • 8-32 size press-fit threaded inserts (8 pieces) pre-installed in the protoboard
    • All materials (including the circuit board and stand) are RoHS compliant (lead-free)
    • Tri lobular thread forming screws (6 pieces, black, 6-32 thread size) and spacers for mounting the stand.
    • Dimensions: 13.25 cm × 8.06 cm x 2.54 mm
    • Dimensions assembled: 13.25 cm × 9.9 cm × 4.3 cm
