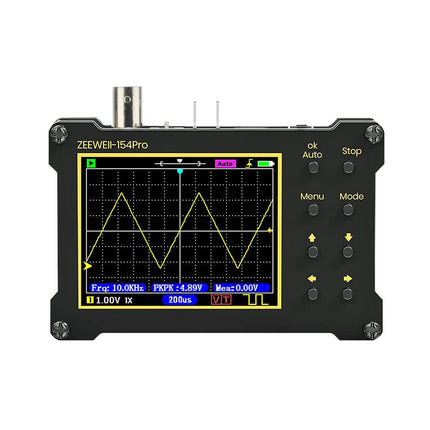

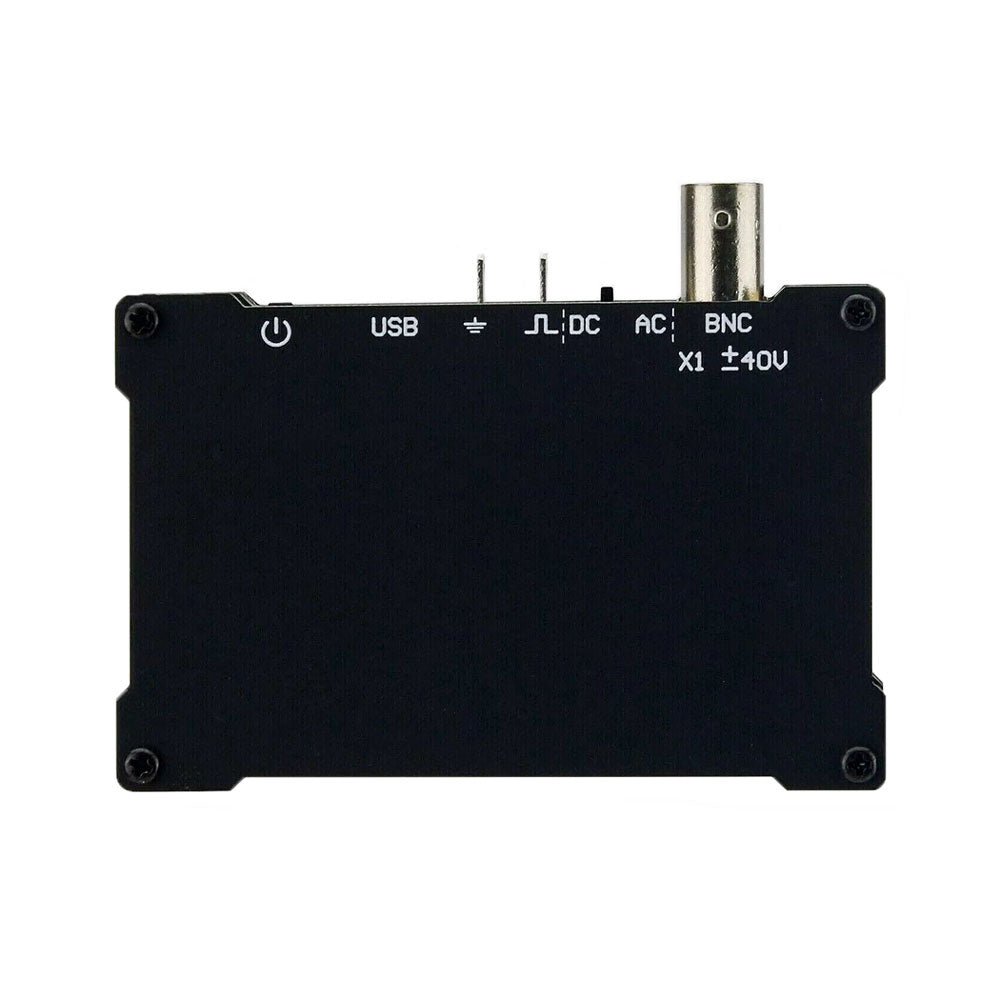

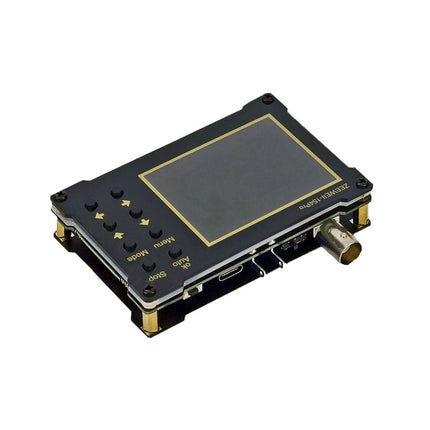

DSO154Pro Oscilloscope (18 MHz) & Signal Generator

  • BrandZEEWEII

Description

The DSO154Pro with advanced ARM+FPGA architecture is a portable oscilloscope with a bandwidth of 18 MHz and a sampling rate of 40 MSa/s.

It has an integrated signal generator that can output adjustable waveforms with an amplitude of 3 V and a frequency range of 0-500 KHz.

Features

  • 18 MHz bandwidth
  • 40 MSa/s sampling rate
  • 500 KHz signal generator
  • 2.4" display
  • 14 measurement parameters
  • Auto adjustment
  • Probe support: X1, X10, X100
  • Auto shutdown

Specifications

Bandwidth 18 MHz
Sampling rate 40 MSa/s
Display 2.4" color TFT (320 x 240)
Measurements 14 types
Vertical precision ±2%
Rise time <3ns
Storage depth 16 Kb
Impedance 1 MΩ
Time base 50ns-10s
Vertical sensitivity 20 mV/div-10 V/div
Max voltage ±40 V (x1)
±400 V (x10)
Trigger mode Auto/Normal/Single
Trigger type Rise/Fall
Trigger level Manual/Auto
Display mode YT/Roll
Persistence None/1s/∞
Waveforms Sinus/Square/Triangle/Noise
Frequency 0-500 KHz
Power supply USB-C (5 V)
Battery 1000 mAh Lithium battery
Dimensions 87 x 58 x 18 mm
Weight 80 g

Included

  • 1x DSO154Pro Oscilloscope
  • 1x P6100 probe
  • 1x USB cable
  • 1x Ring-shaped bracket
  • 1x Manual
Product form

The DSO154Pro with advanced ARM+FPGA architecture is a portable oscilloscope with a bandwidth of 18 MHz and a sampling rate of... Read more

€ 39,95 incl. VAT
Members € 35,96
