Description

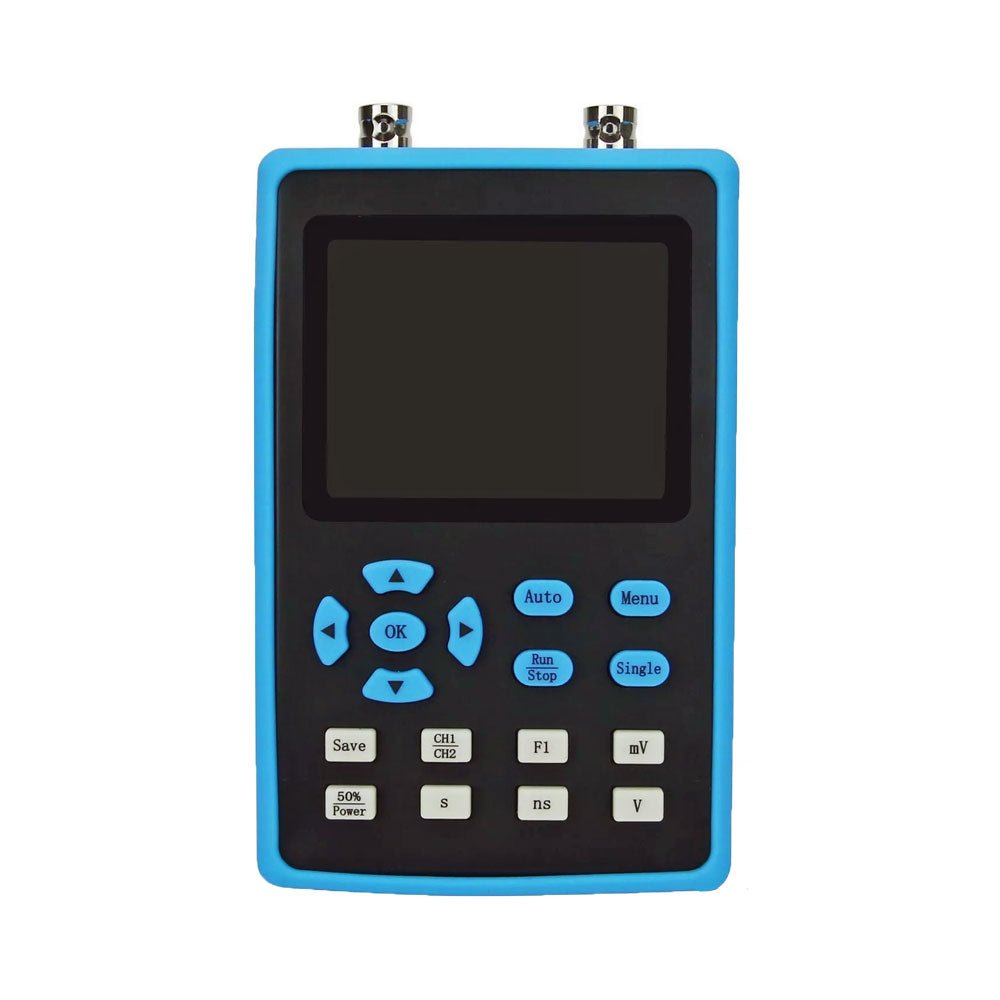

The DSO2512G dual-channel oscilloscope with advanced ARM+FPGA architecture delivers exceptional performance with a 120 MHz bandwidth and 500 MSa/s sampling rate, ensuring precision and stability for professionals and enthusiasts alike.
Its versatility makes it ideal for MCU troubleshooting, vehicle repairs, appliance diagnostics, DIY electronics, power supply testing, and inverter analysis.
The device also features an integrated signal generator, capable of outputting adjustable waveforms with a 2.5 V amplitude, a frequency range of 0-10 MHz (or 0-2 MHz), and an accuracy of 0.1 Hz.
Features
- 120 MHz bandwidth
- 500 MSa/s sampling rate
- 10 MHz signal generator
- 2.8" display
- XY mode
- Video output
- Single trigger
- 10 mV sensitivity
- FFT spectrum
Specifications
| Channels |
2 |
| Bandwidth |
120 MHz |
| Sampling rate |
500 MSa/s |
| Display |
2.8" color TFT (320 x 240) |
| Measurements |
14 types |
| Vertical precision |
±2% |
| Rise time |
<3ns |
| Storage depth |
128 Kb |
| Impedance |
1 MΩ |
| Time base |
5ns-10s |
| Vertical sensitivity |
10 mV/div-10 V/div |
| Max voltage |
±40 V (x1)
±400 V (x10) |
| Trigger mode |
Auto/Normal/Single |
| Trigger type |
Rise/Fall |
| Trigger level |
Manual/Auto |
| Display mode |
YT/Roll |
| Persistence |
None/1s/∞ |
| Waveforms |
Sinus/Square/Triangle/Noise |
| Frequency |
0-10 MHz (sin)
0-2 MHz (other) |
| Power supply |
USB-C (5 V) |
| Battery |
4000 mAh Lithium battery |
| Dimensions |
137 x 82 x 38 mm |
| Weight |
286 g |

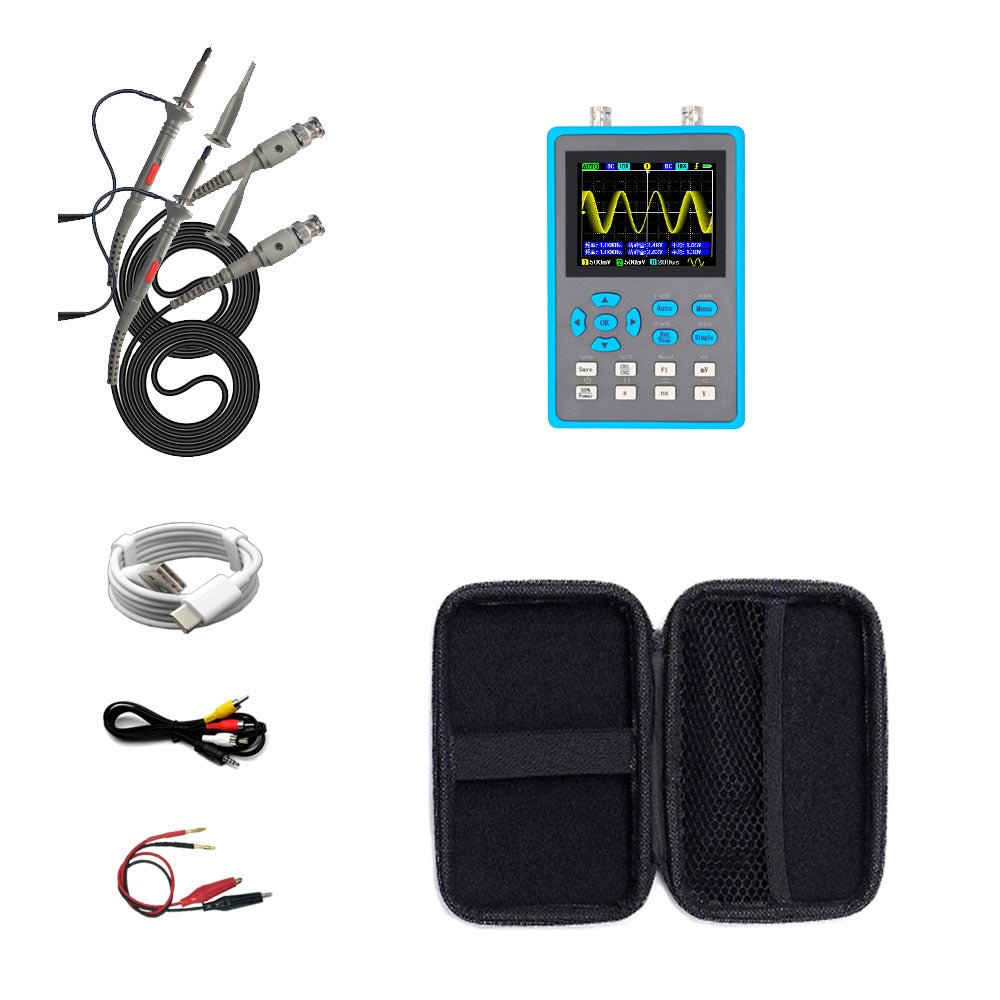

Included
- 1x DSO2512G Oscilloscope
- 2x P6100 probes
- 1x Video cable
- 1x USB cable
- 1x Ring-shaped Stand
- 1x Storage bag
- 1x Manual
