Description

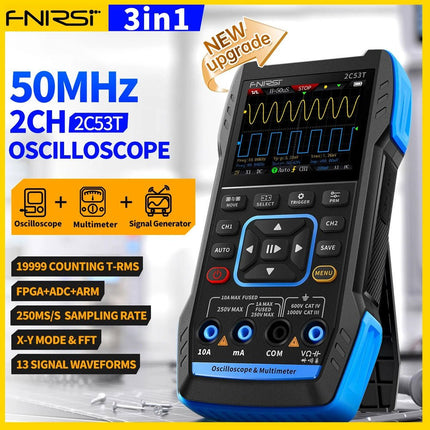

The updated FNIRSI 2C53T, an enhanced version of its 10 MHz predecessor, is a compact and versatile 3-in-1 device. It combines a dual-channel 50 MHz oscilloscope, a 4.5-digit True RMS multimeter, and a signal generator with 13 waveform types, making it an essential tool for maintenance and research professionals.
-
Oscilloscope: Features 50 MHz bandwidth, 250 MS/s sampling rate, ±400 V protection, FPGA + ARM + ADC architecture, and waveform saving for analysis.
-
Multimeter: 4.5-digit True RMS with 19999 counts, supports AC/DC voltage, current, capacitance, resistance, diode, and continuity measurements.
-
Signal Generator: Outputs 13 signal types up to 50 KHz, with adjustable frequency, amplitude, and duty cycle.
With a 2.8-inch LCD, 3000 mAh battery (6-hour runtime), and a portable design, it delivers powerful functionality in a user-friendly package.
Specifications
| Oscilloscope |
| Channels |
2 |
| Analog Bandwidth |
50 MHz |
| Real-time Sampling Rate |
250 MS/s |
| Storage Depth |
1 Kpts |
| Impedance |
1 MΩ |
| Time Base Range |
10ns-20s |
| Vertical Sensitivity |
10 mV/div-10 V/div (x1) |
| Maximum Measured Voltage |
±400 V |
| Trigger Mode |
Auto/Normal/Single |
| Trigger Type |
Rising edge, Falling edge |
| Display Mode |
Y-T/Rolling/X-Y |
| Coupling Method |
AC/DC |
| Persistence |
OFF, 500ms, 1s, ∞ |
| Math |
8 Basic Operations + FFT |
| Supported |
Waveform Screenshot Save, Export Waveform Image, Cursor Measurement, Infinite Afterglow |
| Multimeter |
| DC Voltage |
1.9999V/19.999V/199.99V/1000V |
±(0.5%+3) |
| AC Voltage |
1.9999V/19.999V/199.99V/750.0V |
±(1%+3) |
| DC Current |
19.999mA/199.99mA/1.9999A/9.999A |
±(1.2%+3) |
| AC Current |
19.999mA/199.99mA/1.9999A/9.999A |
±(1.5%+3) |
| Resistance |
19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ |
±(0.5%+3) |
| 1.9999KΩ/199.99Ω |
±(2.0%+3) |
| Capacitance |
999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF |
±(2.0%+5) |
| 9.999mF/99.99mF |
±(5.0%+20) |
| Temperature |
−55~1300°C (−67~2372°F) |
±(2.5%+5) |
| Continuity Test |
Yes |
| Diode |
Yes |
| Signal Generator |
| 13 Signal Waveforms |
Sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave |
| Output Frequency |
0-50 KHz |
| Output Amplitude |
0-3 V |
| Output Duty Cycle |
0-100% |
| General |
| Display |
2.8" HD color screen |
| Resolution |
320 x 240 |
| Charging |
USB-C (5 V/1 A) |
| Battery |
3000 mAh Lithium battery |
| Standby Time |
6 hours |
| Languages |
English, Chinese |
| Dimensions |
167 x 89 x 35 mm |
| Weight |
300 g |
Differences New vs Old Version
| Model |
2C53T Upgrade |
2C53T Predecessor |
| Bandwidth |
50 MHz |
10 MHz |
| Display Mode |
Y-T/Rolling/X-Y |
Y-T/Rolling |
| Math |
8 Basic Operations + FFT |
N/A |
| Cursor Function |
Yes |
N/A |
| XY Lissau Graph |
Yes |
N/A |
| Afterglow Function |
Yes |
N/A |
| Multimeter Accuracy |
19999 Counts |
9999 Counts |
| Signal Generator |
50 KHz |
2 MHz |
Included
- 1x FNIRSI 2C53T Upgrade Oscilloscope (50 MHz)
- 2x P6100 Oscilloscope probes (10X)
- 1x Multimeter probe
- 1x Alligator clip probe
- 1x USB-C charging cable
- 1x Storage bag
- 1x Manual
