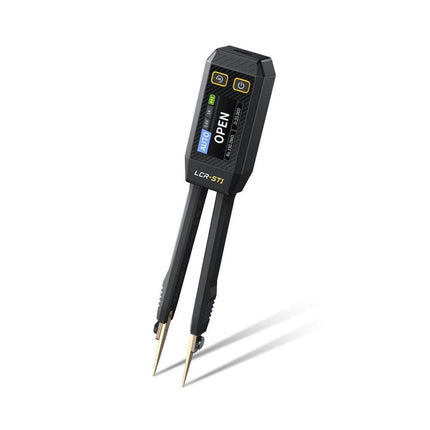

FNIRSI LCR-ST1 Smart SMD Tweezers (LCR/ESR Tester)

Description

The FNIRSI LCR-ST1 is a compact, multifunctional, and smart LCR tester that supports automatic measurements of resistance, capacitance, inductance, diode testing, and continuity.

Its 1.14-inch color display combined with a convenient magnetic adsorption function enhances ease of use, while the built-in 250 mAh lithium battery ensures long-lasting performance. The device supports three frequency ranges (100 Hz, 1 kHz and 10 kHz) and offers 0.3 V and 0.6 V RMS test levels for versatile testing applications.

The unique tweezer-shaped design of the LCR-ST1 is ideal for delicate tasks in confined spaces and enables fast and accurate testing of electronic components. Its light weight and portable design make it an invaluable tool for both field and laboratory use.

Whether you are an experienced engineer or just starting out in electronics, the LCR-ST1 delivers reliable and accurate measurement results, allowing you to complete your tasks with greater efficiency and precision.

Features

  • Offers 3 test frequencies (100 Hz, 1 kHz, 10 kHz) and 2 test voltage levels.
  • Features automatic component identification for faster and more reliable measurements.
  • High-resolution 1.14-inch color display for clear readouts.
  • Supports automatic data recording and storage.
  • The tweezer tips are made from gold-plated brass for enhanced durability and conductivity.

Specifications

Resistance Range 10 mΩ – 10 MΩ
Capacitance Range 1 pF – 22 mF
Inductance Range 1 μh – 10 H
Diode On voltage 0.7 V
Frequency Test 100 Hz, 1k Hz, 10 KHz
Level Test 0.3 V, 0.6 V RMS
Parameter Display ESR, D value, Q value, Z value, X value
Display 1.14" HD color screen
Charging Interface USB-C, 5 V/1 A
Power Supply Built-in 250 mAh lithium battery
Auto Recognition Measurement Yes
Replaceable Tweezer Head Yes
Auto Shutdown Yes
Data Hold Yes
History Record Connect to PC to view and export
Dimensions 28 x 19 x 150 mm
Weight 41 g

Included

  • 1x LCR-ST1 SMD Tweezers

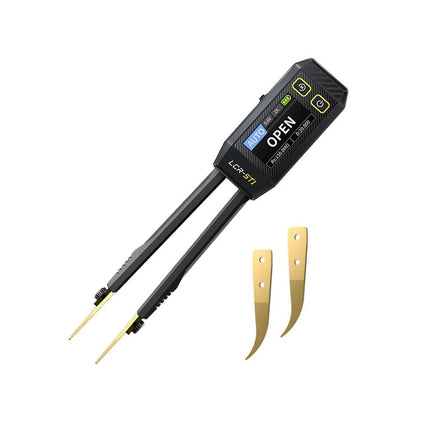

  • 2x Hook Tips
  • 1x Magnetic Patch
  • 1x USB cable
  • 1x Tool bag
  • 1x Manual
Product form

The FNIRSI LCR-ST1 is a compact, multifunctional, and smart LCR tester that supports automatic measurements of resistance, capacitance, inductance, diode... Read more

€ 44,95€ 34,95 incl. VAT
Members identical

      Details

      SKU: 20984
      EAN: 020984

      Description

      The FNIRSI LCR-ST1 is a compact, multifunctional, and smart LCR tester that supports automatic measurements of resistance, capacitance, inductance, diode testing, and continuity.

      Its 1.14-inch color display combined with a convenient magnetic adsorption function enhances ease of use, while the built-in 250 mAh lithium battery ensures long-lasting performance. The device supports three frequency ranges (100 Hz, 1 kHz and 10 kHz) and offers 0.3 V and 0.6 V RMS test levels for versatile testing applications.

      The unique tweezer-shaped design of the LCR-ST1 is ideal for delicate tasks in confined spaces and enables fast and accurate testing of electronic components. Its light weight and portable design make it an invaluable tool for both field and laboratory use.

      Whether you are an experienced engineer or just starting out in electronics, the LCR-ST1 delivers reliable and accurate measurement results, allowing you to complete your tasks with greater efficiency and precision.

      Features

      • Offers 3 test frequencies (100 Hz, 1 kHz, 10 kHz) and 2 test voltage levels.
      • Features automatic component identification for faster and more reliable measurements.
      • High-resolution 1.14-inch color display for clear readouts.
      • Supports automatic data recording and storage.
      • The tweezer tips are made from gold-plated brass for enhanced durability and conductivity.

      Specifications

      Resistance Range 10 mΩ – 10 MΩ
      Capacitance Range 1 pF – 22 mF
      Inductance Range 1 μh – 10 H
      Diode On voltage 0.7 V
      Frequency Test 100 Hz, 1k Hz, 10 KHz
      Level Test 0.3 V, 0.6 V RMS
      Parameter Display ESR, D value, Q value, Z value, X value
      Display 1.14" HD color screen
      Charging Interface USB-C, 5 V/1 A
      Power Supply Built-in 250 mAh lithium battery
      Auto Recognition Measurement Yes
      Replaceable Tweezer Head Yes
      Auto Shutdown Yes
      Data Hold Yes
      History Record Connect to PC to view and export
      Dimensions 28 x 19 x 150 mm
      Weight 41 g

      Included

      • 1x LCR-ST1 SMD Tweezers
      • 2x Hook Tips
      • 1x Magnetic Patch
      • 1x USB cable
      • 1x Tool bag
      • 1x Manual
