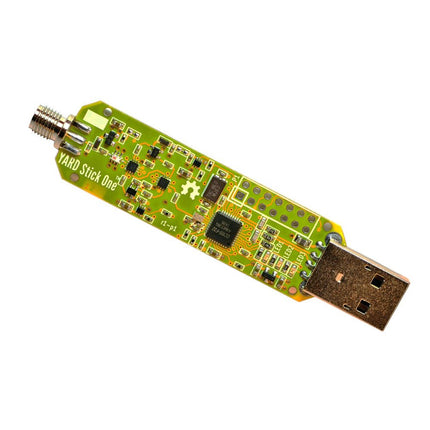

Great Scott Gadgets YARD Stick One – Sub-1 GHz Wireless Test Tool

  • BrandGreat Scott Gadgets

Description

YARD Stick One (Yet Another Radio Dongle) is a sub-1 GHz wireless transceiver IC on a USB dongle. It is based on the Texas Instruments CC1111.

YARD Stick One can transmit or receive digital wireless signals at frequencies below 1 GHz. It uses the same radio circuit as the popular IM-Me. The radio functions that are possible by customizing IM-Me firmware are now at your fingertips when you attach YARD Stick One to a computer via USB.

Features

  • Half-duplex transmit and receive
  • Official operating frequencies: 300-348 MHz, 391-464 MHz, and 782-928 MHz
  • Unofficial operating frequencies: 281-361 MHz, 378-481 MHz, and 749-962 MHz
  • Modulations: ASK, OOK, GFSK, 2-FSK, 4-FSK, MSK
  • Data rates up to 500 kbps
  • Full-Speed USB 2.0
  • SMA female antenna connector (50 ohms)
  • Software-controlled antenna port power (max 50 mA at 3.3 V)
  • Low pass filter for elimination of harmonics when operating in the 800 and 900 MHz bands
  • GoodFET-compatible expansion and programming header
  • GIMME-compatible programming test points
  • Open source

Downloads

Product form

YARD Stick One (Yet Another Radio Dongle) is a sub-1 GHz wireless transceiver IC on a USB dongle. It is... Read more

€ 99,95 incl. VAT
Members € 89,96

    • Ship today? Order within Mar 14, 2025 17:00:00 +0100

    Details

    SKU: 20088
    EAN: 0636824571114

    Description

    YARD Stick One (Yet Another Radio Dongle) is a sub-1 GHz wireless transceiver IC on a USB dongle. It is based on the Texas Instruments CC1111.

    YARD Stick One can transmit or receive digital wireless signals at frequencies below 1 GHz. It uses the same radio circuit as the popular IM-Me. The radio functions that are possible by customizing IM-Me firmware are now at your fingertips when you attach YARD Stick One to a computer via USB.

    Features

    • Half-duplex transmit and receive
    • Official operating frequencies: 300-348 MHz, 391-464 MHz, and 782-928 MHz
    • Unofficial operating frequencies: 281-361 MHz, 378-481 MHz, and 749-962 MHz
    • Modulations: ASK, OOK, GFSK, 2-FSK, 4-FSK, MSK
    • Data rates up to 500 kbps
    • Full-Speed USB 2.0
    • SMA female antenna connector (50 ohms)
    • Software-controlled antenna port power (max 50 mA at 3.3 V)
    • Low pass filter for elimination of harmonics when operating in the 800 and 900 MHz bands
    • GoodFET-compatible expansion and programming header
    • GIMME-compatible programming test points
    • Open source

    Downloads
