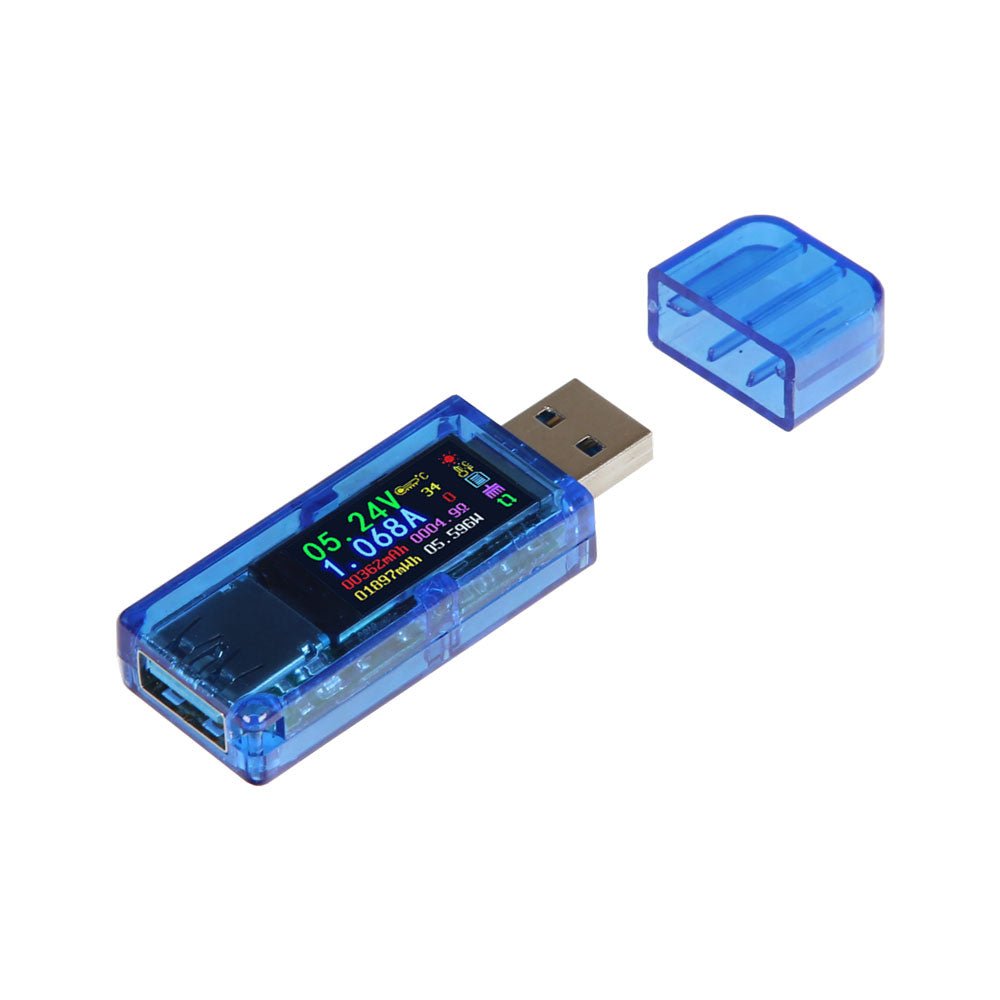

JOY-iT AT34 USB Multimeter

  • BrandJOY-iT

Description

The JOY-iT AT34 is a small but multifunctional USB Multimeter. By supporting current Quick Charge standards it can also easily be used in conjunction with current handheld hardware.

Specifications

Screen 0.96" IPS Display
Refresh Rate 2 Hz
Interface USB 3.0 (2.0 compatible)
Quick Charge Recognition QC2.0, QC3.0, Apple 2.4 A / 2.1 A / 1 A / 0.5 A, Android DCP, Samsung
Voltage Measurement Range 3.7-30 V
Voltage Resolution 0.01 V
Voltage Accuracy ±0,8% (+4 digits)
Current Measurement Range 0-4 A
Current Resolution 0.001 A
Current Accuracy ±1% (+4 digits)
Power Measurement Range 0-120 W
Capacity Accumulation Range 0-99999 mAh
Energy Accumulation Range 0-999,99 Wh
Load Impedance Range 1-9999.9 Ω
Temperature Measurement Range 0-80°C
Operating Temperature Range 0-45°C
Temperature Measurement Error ±3°C
Dimensions 64 x 22 x 12 mm
Weight 28 g

Downloads

Product form

The JOY-iT AT34 is a small but multifunctional USB Multimeter. By supporting current Quick Charge standards it can also easily... Read more

Out of stock

€ 17,50 incl. VAT
Members € 15,75

    Details

    SKU: 19161
    EAN: 4250236818696

    Description

    The JOY-iT AT34 is a small but multifunctional USB Multimeter. By supporting current Quick Charge standards it can also easily be used in conjunction with current handheld hardware.

    Specifications

    Screen 0.96" IPS Display
    Refresh Rate 2 Hz
    Interface USB 3.0 (2.0 compatible)
    Quick Charge Recognition QC2.0, QC3.0, Apple 2.4 A / 2.1 A / 1 A / 0.5 A, Android DCP, Samsung
    Voltage Measurement Range 3.7-30 V
    Voltage Resolution 0.01 V
    Voltage Accuracy ±0,8% (+4 digits)
    Current Measurement Range 0-4 A
    Current Resolution 0.001 A
    Current Accuracy ±1% (+4 digits)
    Power Measurement Range 0-120 W
    Capacity Accumulation Range 0-99999 mAh
    Energy Accumulation Range 0-999,99 Wh
    Load Impedance Range 1-9999.9 Ω
    Temperature Measurement Range 0-80°C
    Operating Temperature Range 0-45°C
    Temperature Measurement Error ±3°C
    Dimensions 64 x 22 x 12 mm
    Weight 28 g
