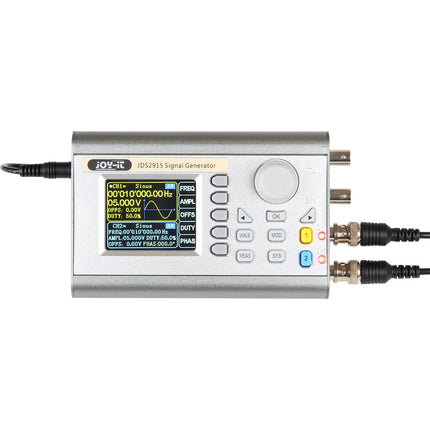

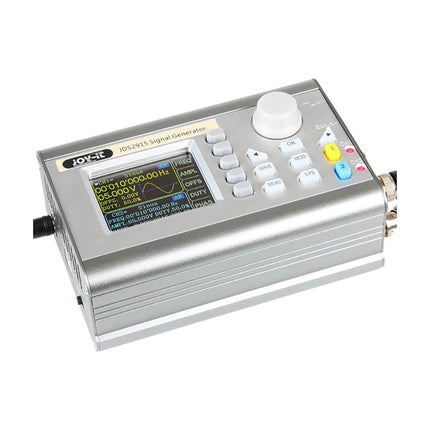

JOY-iT JDS2915 2-ch Signal Generator (15 MHz)

  • BrandJOY-iT

Description

The JOY-iT JDS2915 is a powerful 2-channel signal generator capable of producing frequencies up to 15 MHz. It offers a wide range of waveforms to cater to diverse re quirements. With its compact de sign, it's perfect for on-the-go applications, and the ability to power it via a power bank ensures you're not confined to a single location.

Additionally, the device comes with an integrated 1-channel frequency counter, enhancing the precision and versatility of your measure ments and experiments.

Specifications

Channels 2-channel Signal generator
1-channel Frequency meter
Frequency Range

Sine: 0-15 MHz
Square, triangle: 0-15 MHz
TTL, pulse: 0-6 MHz
Signal Forms Sine, square, triangle, pulse, half / solid wave, exponential rise/ fall
Measuring Range Frequency Counter 1 MHz - 100 MHz
Frequency Accuracy ± 20 ppm
Frequency Stability ± 1 Ppm/3h
Sampling Rate 266 MSa/s
Display 2.4" TFT color LCD
Vertical Shaft Resolution 14 bits
Amplitude Range <10 MHz : 0-20 Vpp
>10 MHz : 0-10 Vpp
Amplitude Resolution 1 mV
Amplitude Stability ± 5%/5h
Amplitude Flatness <10 MHz: ±5%
>10 MHz: ±10%
Impedance of Output 50 Ω ±10%
Dimensions 145 x 95 x 55 mm
Weight 680 g

Included

  • 1x JOY-iT JDS2915 Signal Generator
  • 1x Power supply unit
  • 2x BNC crocodile clip cables

Downloads

Product form

The JOY-iT JDS2915 is a powerful 2-channel signal generator capable of producing frequencies up to 15 MHz. It offers a wide... Read more

1 in stock

€ 109,95 incl. VAT
Members € 98,96

    • Ship today? Order within Mar 12, 2025 17:00:00 +0100

    Details

    SKU: 19169
    EAN: 4250236817071

    Description

    The JOY-iT JDS2915 is a powerful 2-channel signal generator capable of producing frequencies up to 15 MHz. It offers a wide range of waveforms to cater to diverse re quirements. With its compact de sign, it's perfect for on-the-go applications, and the ability to power it via a power bank ensures you're not confined to a single location.

    Additionally, the device comes with an integrated 1-channel frequency counter, enhancing the precision and versatility of your measure ments and experiments.

    Specifications

    Channels 2-channel Signal generator
    1-channel Frequency meter
    Frequency Range

    Sine: 0-15 MHz
    Square, triangle: 0-15 MHz
    TTL, pulse: 0-6 MHz
    Signal Forms Sine, square, triangle, pulse, half / solid wave, exponential rise/ fall
    Measuring Range Frequency Counter 1 MHz - 100 MHz
    Frequency Accuracy ± 20 ppm
    Frequency Stability ± 1 Ppm/3h
    Sampling Rate 266 MSa/s
    Display 2.4" TFT color LCD
    Vertical Shaft Resolution 14 bits
    Amplitude Range <10 MHz : 0-20 Vpp
    >10 MHz : 0-10 Vpp
    Amplitude Resolution 1 mV
    Amplitude Stability ± 5%/5h
    Amplitude Flatness <10 MHz: ±5%
    >10 MHz: ±10%
    Impedance of Output 50 Ω ±10%
    Dimensions 145 x 95 x 55 mm
    Weight 680 g

    Included

    • 1x JOY-iT JDS2915 Signal Generator
    • 1x Power supply unit
    • 2x BNC crocodile clip cables

    Downloads

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    K
    Klaas H.
    Prima signaalgenerator

    De JDS2915 werd snel geleverd en werkt uitstekend. Eenvoudig te bedienen en stabiel. Ik gebruik deze signaalgenerator als Rife machine en dat werk uitstekend. Heb een aantal programmas vastgelegd. Ook de sweep functie werkt prima. Ben erg content met het apparaat ????????????????.
