JOY-iT Nano V3

  • BrandJOY-iT

Description

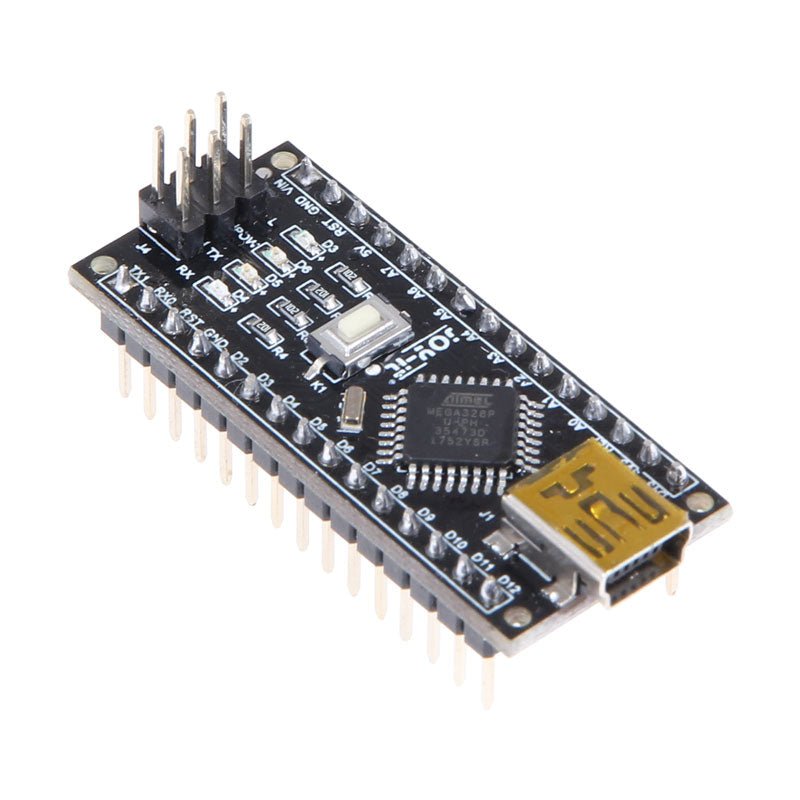

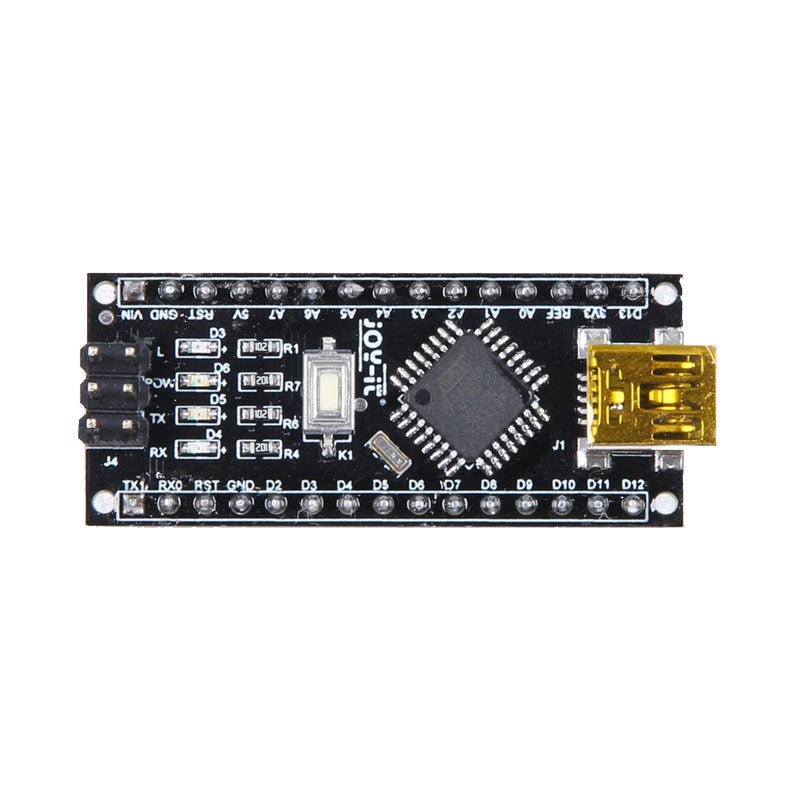

The Arduino Nano is a complete Arduino-compatible single board computer that can be plugged directly into a 32-pin socket, a breadboard or a corresponding carrier board. It offers the complete Arduino functionality in very compact dimensions.

Via the micro-USB socket, you can supply the board and circuit with power as well as conveniently transfer new programs to the controller.

Technical details

  • Pin headers for direct use on the pinboard
  • Ideal for prototyping
  • Programmable via free Arduino IDE
  • Connection via mini USB socket
  • Chipset CH340G
  • Interfaces: I²C, UART, SPI
  • Size: 45 x 18 mm
Microcontroller ATmega328P-AU
Operating Voltage 5 V
Flash Memory 32 KB (2 KB used for Bootloader)
SRAM 2 KB
EEPROM 1 KB
Digital Pins 22 (6 with PWM)
Analog Pins 8
DC Current per I/O Pin 40 mA
Input Voltage 7-12 V

Downloads

Product form

The Arduino Nano is a complete Arduino-compatible single board computer that can be plugged directly into a 32-pin socket, a... Read more

€ 11,95 incl. VAT
Members € 10,76

    • Ship today? Order within Nov 25, 2024 17:00:00 +0100

    Details

    SKU: 18615
    EAN: 4250236816111

    Description

    The Arduino Nano is a complete Arduino-compatible single board computer that can be plugged directly into a 32-pin socket, a breadboard or a corresponding carrier board. It offers the complete Arduino functionality in very compact dimensions.

    Via the micro-USB socket, you can supply the board and circuit with power as well as conveniently transfer new programs to the controller.

    Technical details

    • Pin headers for direct use on the pinboard
    • Ideal for prototyping
    • Programmable via free Arduino IDE
    • Connection via mini USB socket
    • Chipset CH340G
    • Interfaces: I²C, UART, SPI
    • Size: 45 x 18 mm
    Microcontroller ATmega328P-AU
    Operating Voltage 5 V
    Flash Memory 32 KB (2 KB used for Bootloader)
    SRAM 2 KB
    EEPROM 1 KB
    Digital Pins 22 (6 with PWM)
    Analog Pins 8
    DC Current per I/O Pin 40 mA
    Input Voltage 7-12 V
