Description

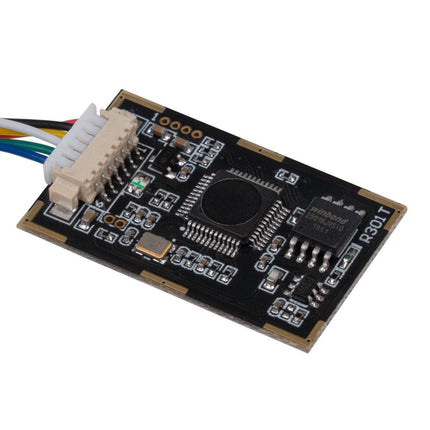

The R301T fingerprint sensor module is capable of image collection and algorithm calculation due to this integrated chip. Another remarkable function of the sensor is, that it can recognize the fingerprint in different conditions, for example humidity, light texture or changes of the skin. This offers a very wide range of possible applications to secure locks and doors among others. The chip can send data via UART, TTL serial and USB to the connected controller.
Specifications
| Model | JP2000 sensor |
| Chip | 32 Bit ARM Cortex-M3 |
| Chip storage | 96 kB RAM, 1 MB Flash |
| Power supply | 4.2 - 6.0 V |
| Working current | Typical: 40 mA
Peak: 50 mA |
| Logic level | 3,3 / 5 V TTL Logic |
| Fingerprint storage capacity | 3000 Prints |
| Matching mode | 1:N Identification
1:1 Verification |
| Adjustable security level | 1 - 5 levels
(default security level: 3) |
| False acceptance rate | < 0.001%
(on security level 3) |
| False acceptance rate | < 0.1%
(on security level 3) |
| Response time | Pre-treatment: < 0.45 s
Match: < 1.5 s |
| Baud rate support | 9600 - 921600 |
| UART communication | No parity, Stop Bit: 1 |
| Dimensions | 42 x 19 x 8 mm |
Included
- 1x Fingerprint sensor COM-FP-R301T
- 1x Cable
