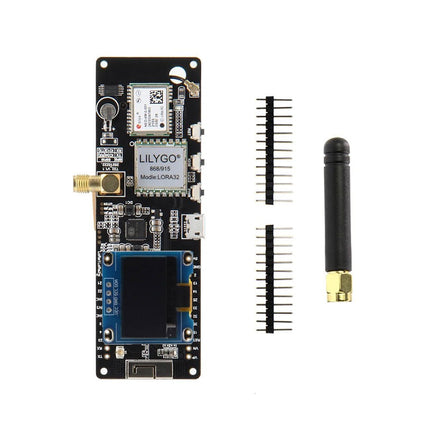

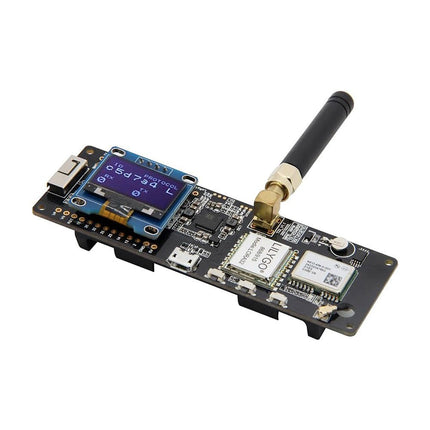

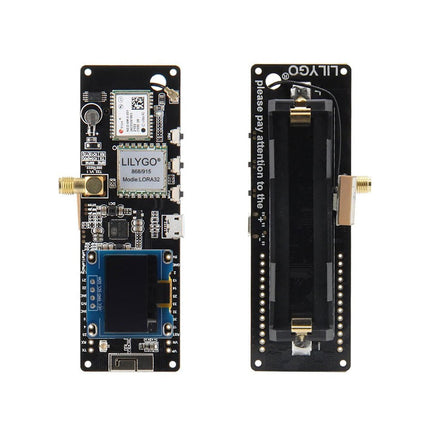

LILYGO T-Beam V1.2 ESP32 LoRa Development Board with 0.96" Display (EU868)

  • BrandLILYGO

Description

This LILYGO T-Beam V1.2 ESP32 LoRa Development Board comes with pre-installed Meshtastic and soldered 0.96' display. The board has a built-in Semtech SX1262 LoRa transceiver and is equipped with a NEO-6M GPS receiver.

GPS

  • NEO-6M GPS module: Support GPS protocol
  • Onboard RTC crystal: Support interrupt/wakeup

LoRa

  • Long Range Low Power LoRa Transceiver
  • High sensitivity: -i48 dBm
  • Transceive rate: 300 kbps
  • Version: SX1276 (868 MHz)
  • Firmware: Meshtastic

Display

  • OLED: 0.96 inch
  • Driver: SSD1306

Specifications

Microcontroller ESP32
Flash 4 MB
PSRAM 8 MB
Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
PMU AXP2101
Onboard functions 3 buttons (Power + IO38 + Reset)
Power supply Micro USB, 18650 battery
Antenna
  • 3D WiFi Antenna
  • LoRa antenna
  • GPS ceramic antenna

Included

  • 1x LILYGO T-Beam V1.2 CH9102
  • 1x 868 MHz Antenna
  • 1x Soldered 0.96' LCD (128x64)
  • 2x Pin headers

Downloads

Product form

This LILYGO T-Beam V1.2 ESP32 LoRa Development Board comes with pre-installed Meshtastic and soldered 0.96' display. The board has a built-in... Read more

€ 49,95 incl. VAT
Members € 44,96

    • Ship today? Order within Nov 17, 2024 17:00:00 +0100

    Details

    SKU: 20590
    EAN: 020590

    Description

    This LILYGO T-Beam V1.2 ESP32 LoRa Development Board comes with pre-installed Meshtastic and soldered 0.96' display. The board has a built-in Semtech SX1262 LoRa transceiver and is equipped with a NEO-6M GPS receiver.

    GPS

    • NEO-6M GPS module: Support GPS protocol
    • Onboard RTC crystal: Support interrupt/wakeup

    LoRa

    • Long Range Low Power LoRa Transceiver
    • High sensitivity: -i48 dBm
    • Transceive rate: 300 kbps
    • Version: SX1276 (868 MHz)
    • Firmware: Meshtastic

    Display

    • OLED: 0.96 inch
    • Driver: SSD1306

    Specifications

    Microcontroller ESP32
    Flash 4 MB
    PSRAM 8 MB
    Serial Chip CH9102
    Wireless protocol Wi-Fi + Bluetooth 4.2
    PMU AXP2101
    Onboard functions 3 buttons (Power + IO38 + Reset)
    Power supply Micro USB, 18650 battery
    Antenna
    • 3D WiFi Antenna
    • LoRa antenna
    • GPS ceramic antenna

    Included

    • 1x LILYGO T-Beam V1.2 CH9102
    • 1x 868 MHz Antenna
    • 1x Soldered 0.96' LCD (128x64)
    • 2x Pin headers

    Downloads
