Description

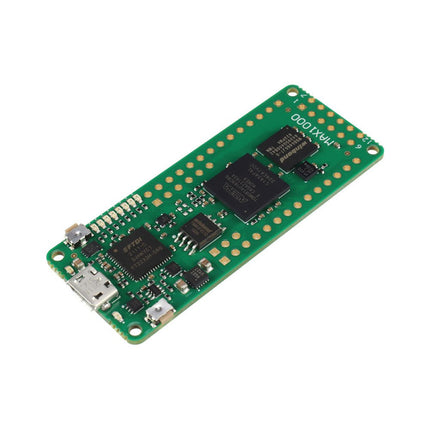

The MAX1000 is a customizable IoT/Maker Board ready for evaluation, development and/or use in a product. It is built around the Intel MAX10 FPGA, which is the industry’s first single chip, non-volatile programmable logic device (PLDs) to integrate the optimal set of system components.
Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power FPGA system. Providing internally stored dual images with self-configuration, comprehensive design protection features, integrated ADCs and hardware to implement the Nios II 32-bit microcontroller IP, MAX10 devices are ideal solution for system management, protocol bridging, communication control planes, industrial, automotive and consumer applications.
The MAX1000 is equipped with an Arrow USB Programmer2, SDRAM, flash memory, accelerometer sensor and PMOD/Arduino MKR connectors making it a fully featured plug and play solution without any additional costs.
Specifications
| MAX 10 |
8 kLE |
| • Flash |
Dual inside |
| • ADC |
8x 12 Bit |
| • Temperature Range |
0~85°C |
| • Supply |
USB/pins |
| SDRAM |
8 MB |
| 3-axis MEMS |
LIS3DH |
| USB Programmer |
On board |
| MEMS Oscillator |
12 MHz |
| Switch/LED |
2x / 8x |
