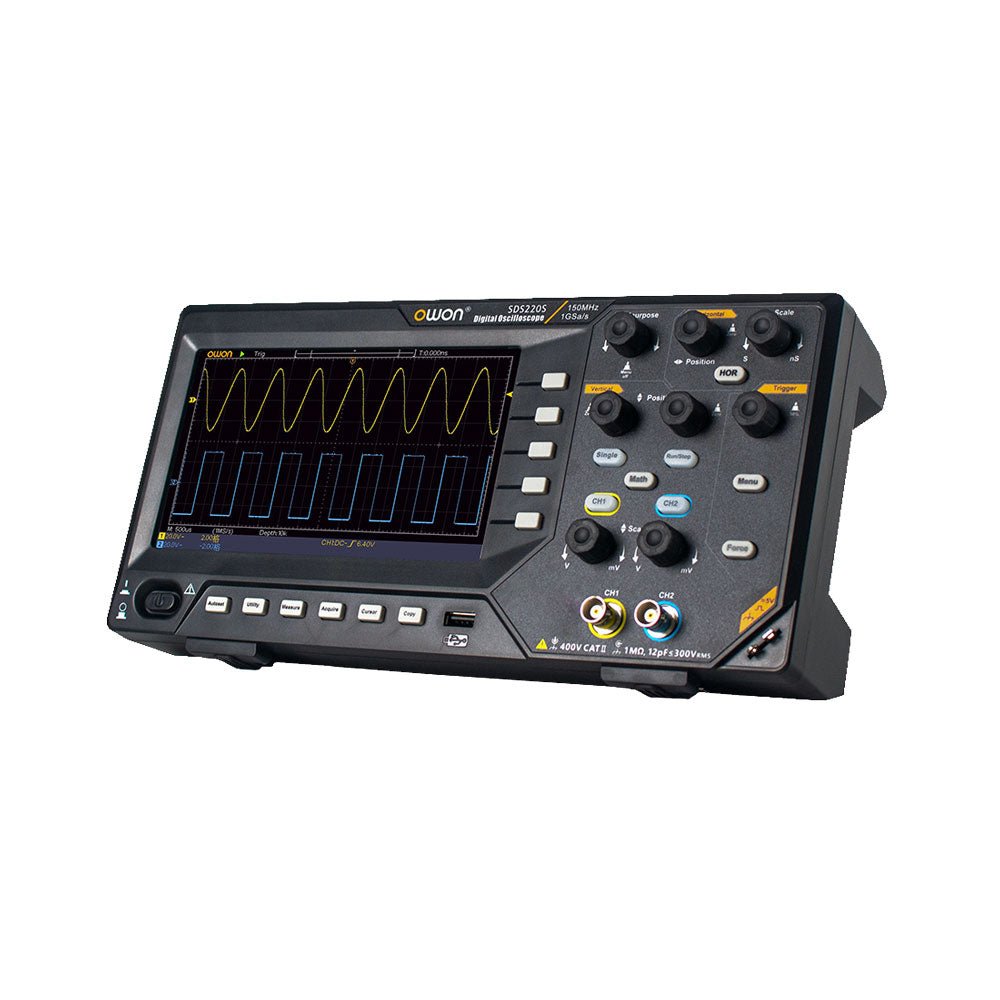

OWON SDS220S 2-ch Oscilloscope (200 MHz) & Signal Generator

  • BrandOWON

Description

The OWON SDS220S is a dual-channel digital oscilloscope with an integrated 25 MHz signal generator, offering a wide 200 MHz bandwidth and high-speed 1 GS/s real-time sampling rate.

Features

  • Digital Storage Oscilloscope (DSO)
  • Dual-channel operation (two independent input channels)
  • Built-in 25 MHz signal generator
  • Bandwidth: 200 MHz
  • Real-time sampling rate: 1 GS/s per channel
  • Memory depth: 20M points
  • Automatic measurements: Supports 30 automatic waveform measurements
  • Built-in frequency counter: 6-digit, high-precision
  • FFT Spectrum Analysis (Fast Fourier Transform)
  • PC connectivity: Communicates with PC via USB interface
  • Remote control & programming: Supports SCPI commands and LabVIEW integration
  • Software included: Free PC software and programming development examples available for remote control and secondary development.
  • 7-inch TFT LCD color display

Oscilloscope Specifications

Bandwidth 200 MHz
Channels Dual
Sample Rate Max 1 GS/s
Acquisition Mode Normal, Peak detect, Averaging
Input Coupling DC, AC, Ground
Input Impedance 1 MΩ ±2%, in parallel with 20pF ±5pF
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Record length 20M
Horizontal Scale (s/div) 2 ns/div～1000 s/div, step by 1–2–5
Vertical Sensitivity 2 mV/div～10 V/div
Automatic Measurement Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
Waveform Math ＋, －, ×, ÷, FFT
Waveform Storage 16 waveforms
Trigger Type Edge, Video
Communication Interface USB Host and Device
Frequency Counter Yes

Signal Generator Specifications

Standard Waveforms Sine wave, square wave, ramp wave, pulse wave, arbitrary wave
Arbitrary Waveforms Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds
Max Frequency Output 25 MHz
Arbitrary Waveform 0.1 Hz～5 MHz
Sample rate 125 MSa/s
Amplitude (50 Ω) 0.005 Vpp～3 Vpp
DC Offset Range ±3 V (high resistance)
Channel 1
Waveform Length 8k
Vertical Resolution 14 bit
Load Impedance 50 Ω

General Specifications

Display 7 inch LCD (800 x 480)
Dimensions (L x H x D) 301 x 152 x 70 mm
Weight 1.1 kg

Included

  • OWON SDS220S Oscilloscope & Signal Generator
  • Power Cord
  • BNC Cable
  • USB Cable
  • Probe
  • Probe Adjust
  • Manual

Downloads

Product form

The OWON SDS220S is a dual-channel digital oscilloscope with an integrated 25 MHz signal generator, offering a wide 200 MHz bandwidth and... Read more

€ 299,00 incl. VAT
Members € 269,10

      Details

      SKU: 21012
      EAN: 021012

      Description

      The OWON SDS220S is a dual-channel digital oscilloscope with an integrated 25 MHz signal generator, offering a wide 200 MHz bandwidth and high-speed 1 GS/s real-time sampling rate.

      Features

      • Digital Storage Oscilloscope (DSO)
      • Dual-channel operation (two independent input channels)
      • Built-in 25 MHz signal generator
      • Bandwidth: 200 MHz
      • Real-time sampling rate: 1 GS/s per channel
      • Memory depth: 20M points
      • Automatic measurements: Supports 30 automatic waveform measurements
      • Built-in frequency counter: 6-digit, high-precision
      • FFT Spectrum Analysis (Fast Fourier Transform)
      • PC connectivity: Communicates with PC via USB interface
      • Remote control & programming: Supports SCPI commands and LabVIEW integration
      • Software included: Free PC software and programming development examples available for remote control and secondary development.
      • 7-inch TFT LCD color display

      Oscilloscope Specifications

      Bandwidth 200 MHz
      Channels Dual
      Sample Rate Max 1 GS/s
      Acquisition Mode Normal, Peak detect, Averaging
      Input Coupling DC, AC, Ground
      Input Impedance 1 MΩ ±2%, in parallel with 20pF ±5pF
      Probe Attenuation Factor 1X, 10X, 100X, 1000X
      Record length 20M
      Horizontal Scale (s/div) 2 ns/div～1000 s/div, step by 1–2–5
      Vertical Sensitivity 2 mV/div～10 V/div
      Automatic Measurement Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
      Waveform Math ＋, －, ×, ÷, FFT
      Waveform Storage 16 waveforms
      Trigger Type Edge, Video
      Communication Interface USB Host and Device
      Frequency Counter Yes

      Signal Generator Specifications

      Standard Waveforms Sine wave, square wave, ramp wave, pulse wave, arbitrary wave
      Arbitrary Waveforms Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds
      Max Frequency Output 25 MHz
      Arbitrary Waveform 0.1 Hz～5 MHz
      Sample rate 125 MSa/s
      Amplitude (50 Ω) 0.005 Vpp～3 Vpp
      DC Offset Range ±3 V (high resistance)
      Channel 1
      Waveform Length 8k
      Vertical Resolution 14 bit
      Load Impedance 50 Ω

      General Specifications

      Display 7 inch LCD (800 x 480)
      Dimensions (L x H x D) 301 x 152 x 70 mm
      Weight 1.1 kg

      Included

      • OWON SDS220S Oscilloscope & Signal Generator
      • Power Cord
      • BNC Cable
      • USB Cable
      • Probe
      • Probe Adjust
      • Manual

      Downloads
