OWON XDM1141 True RMS Multimeter

  • BrandOWON

Description

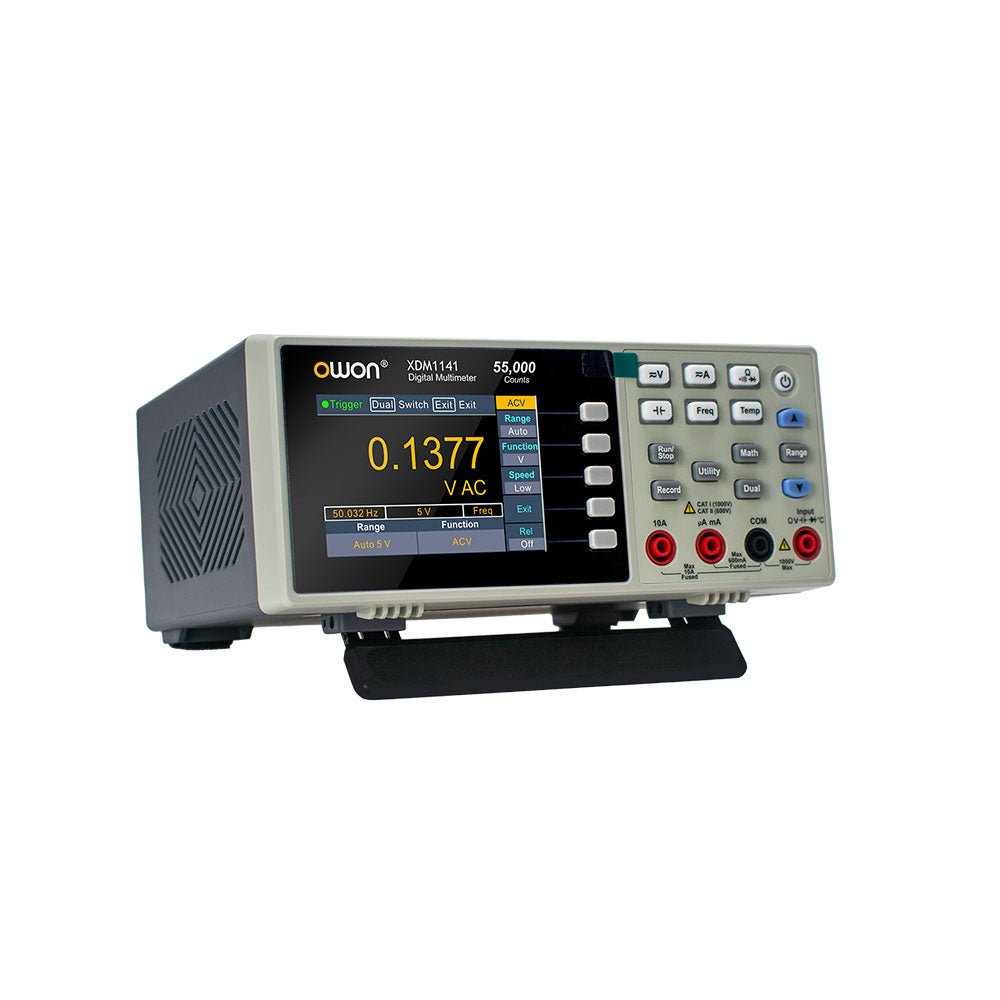

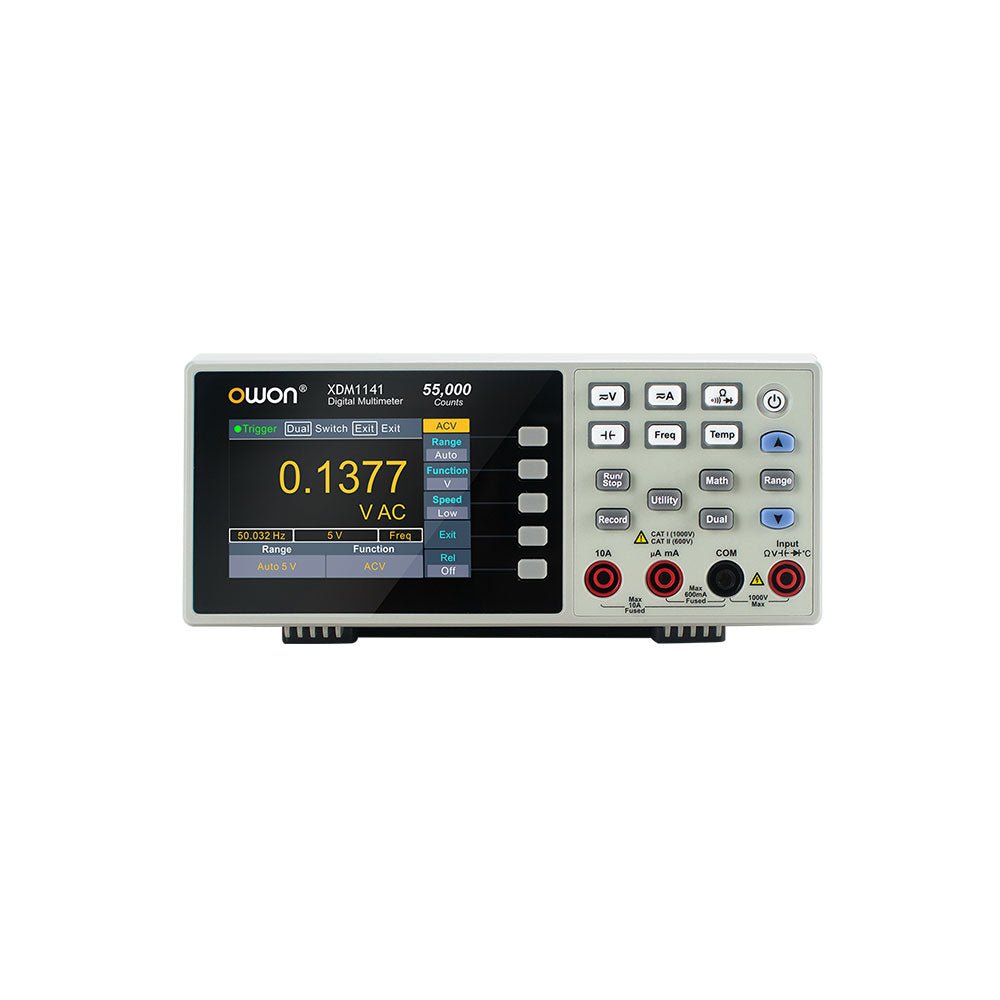

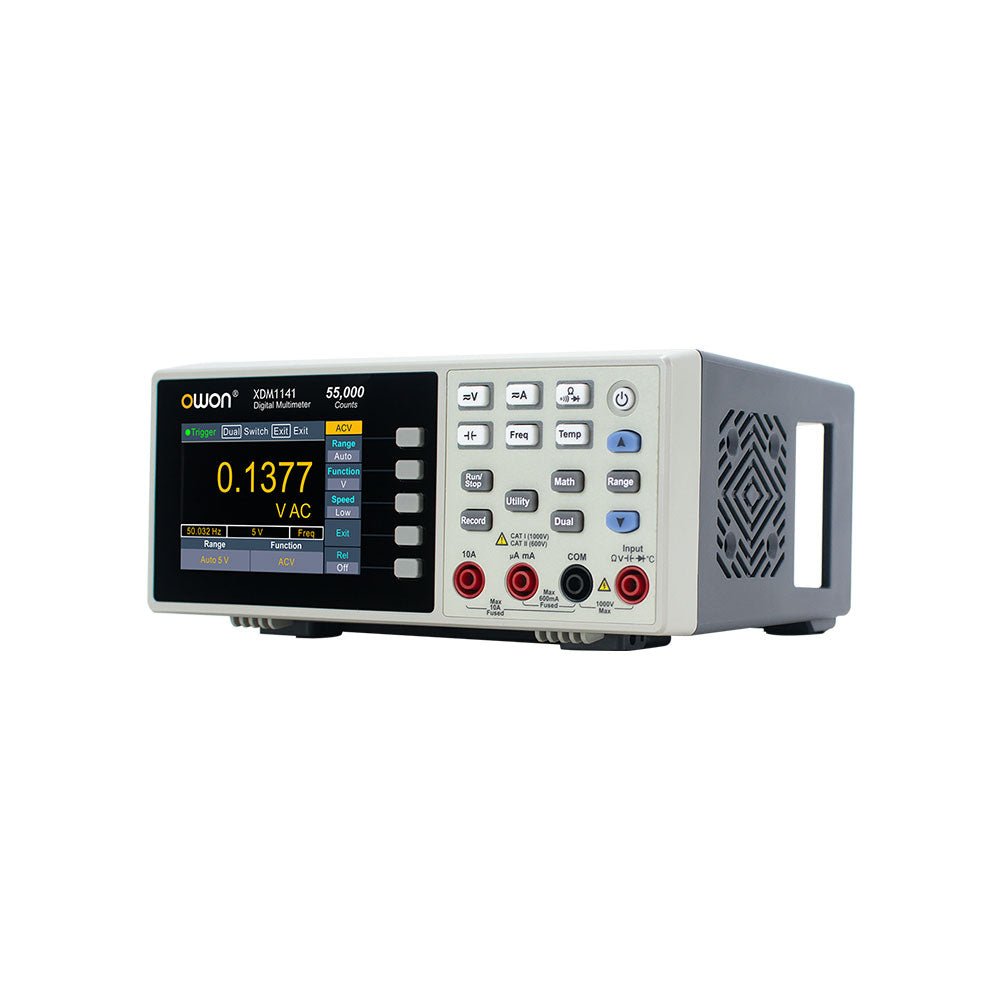

The OWON XDM1141 is a fast. high-precision digital True RMS benchtop multimeter with a high-resolution 3.5-inch LCD and 50.000 counts. Its DC voltage accuracy is up to 0.05% and it can measure up to 65 values per second.

Features

  • 3.5" high-resolution LCD (480x320 pixels)
  • 55000 counts. DC voltage accuracy up to 0.05%
  • Up to 65 readings per second
  • Dual line display supported
  • Trend analysis accessible in chart mode
  • AC True RMS measurements (bandwidth: 20 Hz ? 1 kHz)
  • SCPI support: Remote control the multimeter through PC software via USB port
  • Data record function. you can record the measured data into internal memory. and then read and process the recorded data with your computer.

Specifications

Measurement Range Resolution Accuracy
DC Voltage 50.000 mV 0.001 mV 0.1% +10
500.00 mV 0.01 mV 0.05% +5
5.0000 V 0.0001 V 0.05% +5
50.000 V 0.001 V 0.05% +5
500.00 V 0.01 V 0.1% +5
1000.0 V 0.1 V 0.1% +10
AC Voltage 500 mV?750 V 20 Hz?45 Hz 1% +30
45 Hz?65 Hz 0.5% +30
65 Hz?1 KHz 0.7% +30
DC Current 500 uA 0.01 uA 0.15% +20
5000 uA 0.1 uA 0.15% +10
50 mA 0.001 mA 0.15% +20
500 mA 0.01 mA 0.15% +10
5 A 0.0001 A 0.5% +10
10 A 0.001 A 0.5% +10
AC Current 500 uA?500 mA 20 Hz?1 KHz 0.5% +20
5 A-10 A 1.5% +20
Resistance 500 ? 0.01 ? 0.15% +10
5 K? 0.0001 K? 0.15% +5
50 K? 0.001 K? 0.15% +5
500 K? 0.01 K? 0.15% +5
5 M? 0.0001 M? 0.3% +5
50 M? 0.001 M? 1% +10
Frequency 10.000 Hz?60 MHz / ±(0.2% +10)
Capacitance 50 nF?500 uF / 2.5% +10
5 mF?50 mF 5% +10
Diode 3.0000 V 0.0001 V /
Continuity 1000 ? 0.1 ? Adjustable threshold
Temperature K type. PT100
Max Display 55.000 counts
Data-logging Function
Logging Duration 15ms?9999.999s
Logging Length 1.000 points
Display 3.5' TFT LCD (480x320 pixels)
Dimensions 200 x 88 x 150 mm
Weight approx. 0.5 kg

Included

  • 1x OWON XDM1141 Multimeter
  • 1x Power cord
  • 2x Test leads
  • 1x Fuse
  • 1x USB cable
  • 1x Manual
