Description
The PeakTech 5620 is a professional thermal imaging camera with a high thermal resolution of 384x288 thermal image points and a variety of excellent features for work in building thermography or industrial use.
In addition to the pure thermal image display, this new development also offers a PIP (picture-in-picture) display, a real image camera or a fusion function in which the contours of the real image recording are combined with the thermal image in order to ensure an even better display.
All of the image modes mentioned can also be used for video recording, which also enables audio recordings for the respective video.
The many functions are controlled via push buttons on the device, but also via the touch screen function of the color TFT display.
All thermal images can be opened and evaluated using the enclosed software, with subsequent changes, e.g. can be done on the pallet selection.
- Professional thermal imaging technology
- 3.5 “touchscreen and graphic menu navigation
- Thermal image resolution of 384 x 288 pixels
- High temperature measuring range up to + 550 °C
- High quality thermal image sensor with high temperature sensitivity
- Fast thermal imaging with 25 Hz
- Seven color palettes (Iron, Rainbow, White, Black ...)
- Photo and video recordings with audio commentary
- WiFi, USB and Bluetooth interfaces
- IP 54 protected against dust and splash water

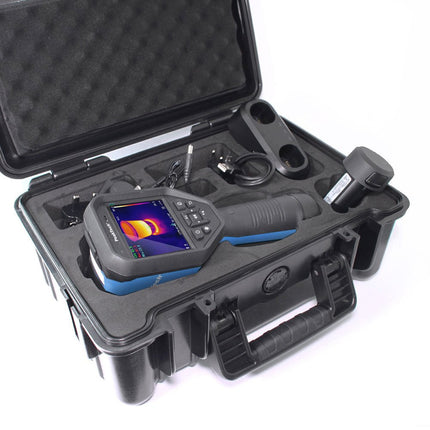

- Accessories: Hard case, 2 x Li-Po battery, charger, carrying strap, connection cable, software and instructions
| Thermal Resolution |
384 x 288 Pixel |
| Temperature Range |
-20°C … 550°C / -4°F … 1022°F; 0,1° Auflösung |
| Accuracy |
+/- 2% +/- 2°C |
| Display |
3.5“ Touchscreen TFT |
| Thermal Sensivity |
< 40 mK |
| Field of View (FOV) |
37,2°x 28,5° |
| Pixel Pitch |
17 µm |
| IFOV |
1.7 mrad |
| Wave Length |
8 ... 14 µm |
| Emissivity |
0.01 ~ 1.0 |
| Image Frequency |
25 Hz |
| Storage |
Micro SD (64 GB) |
| Data Interface |
USB, WiFI, Bluetooth |
| Operation voltage |
5000 mAh / 3.7V Li-Ion |
| Dimensions (WxHxD) |
100 x 244 x 104 mm |
| Weight |
approx. 660 g |
