Description
An all-in-one, Pico W powered industrial/automation controller with 2.46 GHz wireless connectivity, relays and a plethora of inputs and outputs. Compatible with 6 V to 40 V systems.

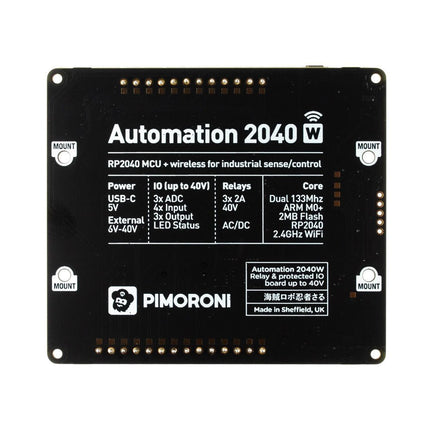

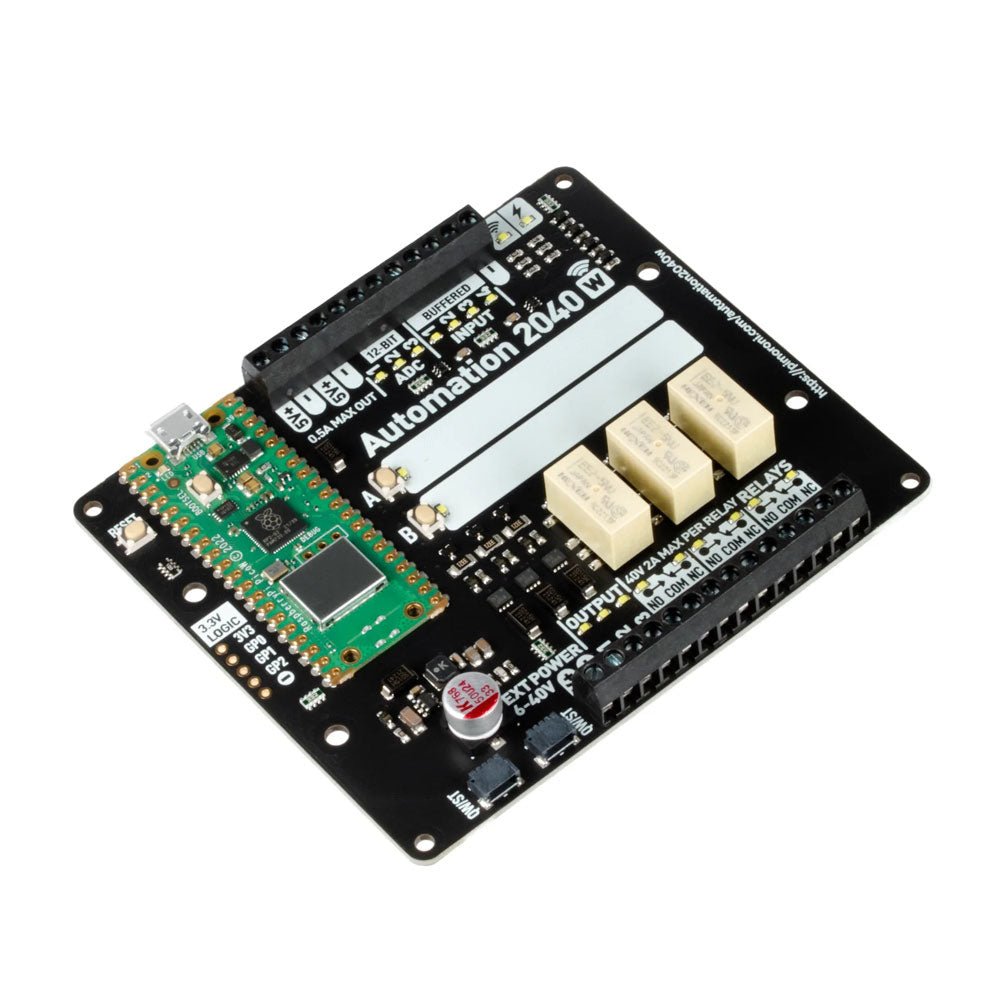

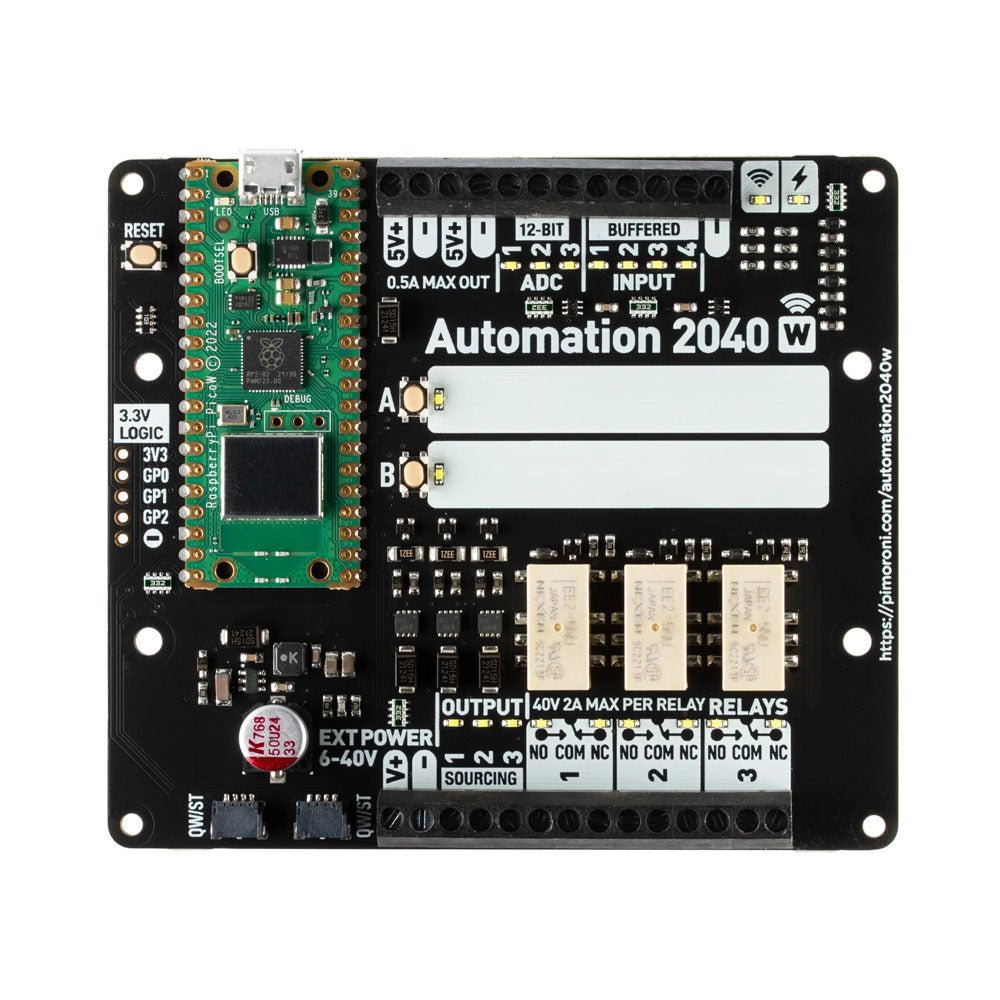

Automation 2040 W is a Pico W / RP2040 powered monitoring and automation board. It contains all the great features from the Automation HAT (relays, analog channels, powered outputs and buffered inputs) but now in a single compact board and with an extended voltage range so you can use it with more devices. Great for controlling fans, pumps, solenoids, chunky motors, electronic locks or static LED lighting (up to 40 V).
All the channels (and the buttons) have an associated indicator LED so you can see at a glance what's happening with your setup, or test your programs without having hardware connected.
Features
- Raspberry Pi Pico W Aboard
- Dual Arm Cortex M0+ running at up to 133 Mhz with 264 kB of SRAM
- 2 MB of QSPI flash supporting XiP
- Powered and programmable by USB micro-B
- 2.4 GHz wireless
- 3x 12-bit ADC inputs up to 40 V
- 4x digital inputs up to 40 V
- 3x digital sourcing outputs at V+ (supply voltage)
- 4 A max continuous current
- 2 A max current at 500 Hz PWM
- 3x relays (NC and NO terminals)
- 2 A up to 24 V
- 1 A up to 40 V
- 3.5 mm screw terminals for connecting inputs, outputs and external power
- 2x tactile buttons with LED indicators
- Reset button
- 2x Qw/ST connectors for attaching breakouts
- M2.5 mounting holes
- Fully assembled
- No soldering required.
- C/C++ and MicroPython libraries
- Schematic
- Dimensional drawing
Power
- Board is compatible with 12 V, 24 V and 36 V systems
- Requires supply 6-40 V
- Can provide 5 V up to 0.5 A for lower voltage applications
