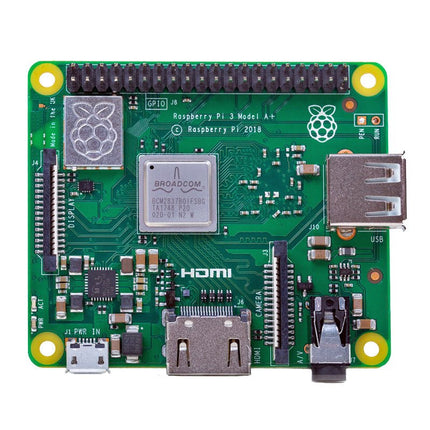

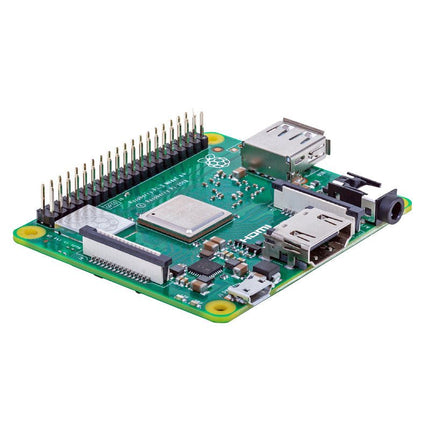

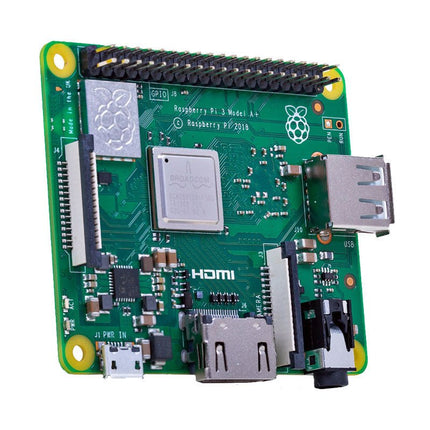

Raspberry Pi 3 A+

  • BrandRaspberry Pi Foundation

Description

Like the Raspberry Pi 3 B+, the Raspberry Pi 3 A+ boasts a 64-bit quad-core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 A+ has the same mechanical footprint as the Raspberry Pi 1 A+.

Specifications

Processor Broadcom BCM2837B0, Cortex-A53
64-bit SoC @ 1.4 GHz
Memory 512 MB LPDDR2 SDRAM
Connectivity 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN
Bluetooth 4.2/BLE
Video & Sound 1x full size HDMI
MIPI DSI display port
MIPI CSI camera port
4 pole stereo output and composite video port
Multimedia H.264, MPEG-4 decode (1080p30)
H.264 encode (1080p30)
OpenGL ES 1.1, 2.0 graphics
SD Card support Micro SD format for loading operating system and data storage
Input Power 5 V/2.5 A DC via micro-USB connector
5 V DC via GPIO header
Environment Operating temperature, 0-50°C
Dimensions 65 x 56.5 mm

Product form

Like the Raspberry Pi 3 B+, the Raspberry Pi 3 A+ boasts a 64-bit quad-core processor running at 1.4 GHz,... Read more

€ 29,95 incl. VAT
Members identical

      Details

      SKU: 18751
      EAN: 0652508442181

      Description

      Like the Raspberry Pi 3 B+, the Raspberry Pi 3 A+ boasts a 64-bit quad-core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 A+ has the same mechanical footprint as the Raspberry Pi 1 A+.

      Specifications

      Processor Broadcom BCM2837B0, Cortex-A53
      64-bit SoC @ 1.4 GHz
      Memory 512 MB LPDDR2 SDRAM
      Connectivity 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN
      Bluetooth 4.2/BLE
      Video & Sound 1x full size HDMI
      MIPI DSI display port
      MIPI CSI camera port
      4 pole stereo output and composite video port
      Multimedia H.264, MPEG-4 decode (1080p30)
      H.264 encode (1080p30)
      OpenGL ES 1.1, 2.0 graphics
      SD Card support Micro SD format for loading operating system and data storage
      Input Power 5 V/2.5 A DC via micro-USB connector
      5 V DC via GPIO header
      Environment Operating temperature, 0-50°C
      Dimensions 65 x 56.5 mm
