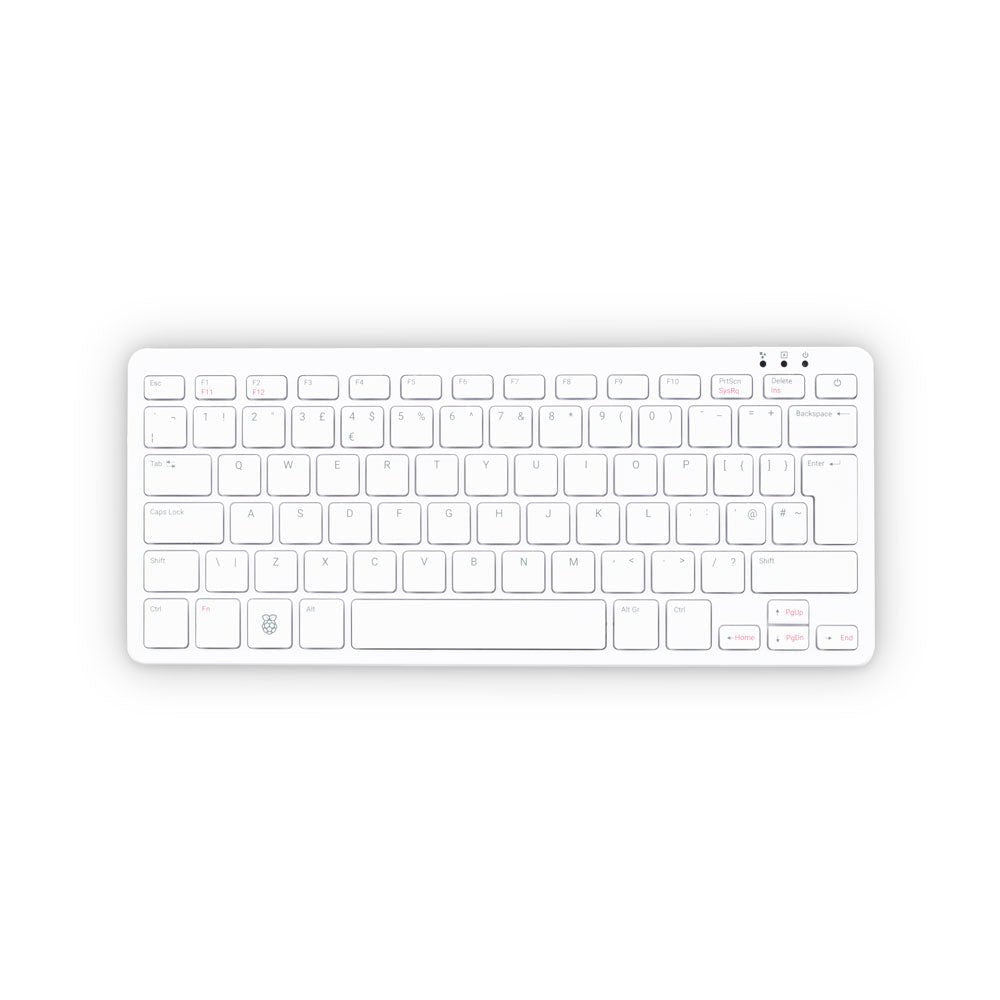

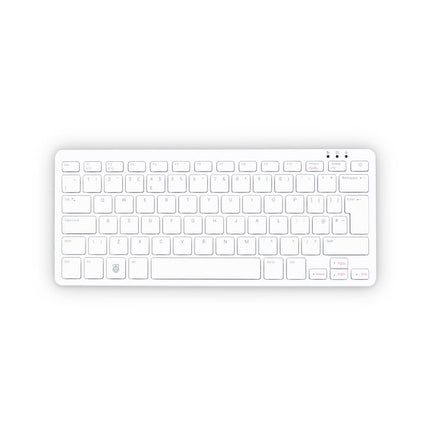

The Raspberry Pi 500 (based on the Raspberry Pi 5) features a quad-core 64-bit Arm processor, RP1 I/O controller, 8 GB RAM, wireless networking, dual-display output, 4K video playback, and a 40-pin GPIO header. It's a powerful, compact all-in-one computer built into a portable keyboard.

The built-in aluminum heatsink provides improved thermal performance, allowing the Raspberry Pi 500 to run quickly and smoothly even under heavy load.

Specifications

SoC	Broadcom BCM2712
CPU	ARM Cortex-A76 (ARM v8) 64-bit
Clock rate	4x 2.4 GHz
GPU	VideoCore VII (800 MHz)
RAM	8 GB LPDDR4X (4267 MHz)
WiFi	IEEE 802.11b/g/n/ac (2.4 GHz/5 GHz)
Bluetooth	Bluetooth 5.0, BLE
Ethernet	Gigabit Ethernet (with PoE+ support)
USB	2x USB-A 3.0 (5 GBit/s) 1x USB-A 2.0 1x USB-C (for power supply)
PCI Express	1x PCIe 2.0
GPIO	Standard 40-pin GPIO header
Video	2x micro-HDMI ports (4K60)
Multimedia	H.265 (4K60 decode) OpenGL ES 3.1, Vulkan 1.2
SD card	microSD
Power supply	5 V DC (via USB-C)
Keyboard layout	US (QWERTY)
Dimensions	286 x 122 x 23 mm

Included

Raspberry Pi 500 (US keyboard layout, QWERTY)
Official 27 W Power Supply for Raspberry Pi (EU, white)
Official Raspberry Pi Mouse (white)
Official Raspberry Pi HDMI Cable (white, 2 m)
32 GB microSD Card with pre-installed Raspberry Pi OS
The Official Raspberry Pi Beginner's Guide (5th Edition)
