Raspberry Pi Compute Module 5 Development Kit

  • BrandRaspberry Pi Foundation
Description

Description

The Raspberry Pi Compute Module 5 Development Kit provides an ideal platform for prototyping embedded solutions. This all-in-one kit contains the Compute Module 5, the Compute Module 5 IO Board and all necessary accessories to start your product design.

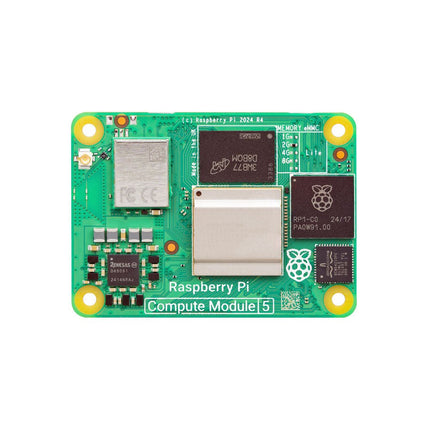

Compute Module 5 (CM5104032)

  • 2.4 GHz quad-core 64-bit Arm Cortex-A76 CPU
  • VideoCore VII GPU, supporting OpenGL ES 3.1 and Vulkan 1.3
  • 4 GB LPDDR4X-4267 SDRAM
  • 32 GB MLC eMMC memory
  • 1x Dual 4Kp60 HDMI display output
  • 1x 4Kp60 HEVC decoder
  • 1x Dual-band 802.11ac Wi-Fi and Bluetooth 5.0
  • 2x USB 3.0 interfaces, supporting simultaneous 5 Gbps operation
  • 1x Gigabit Ethernet, with IEEE 1588 support
  • 2x 4-lane MIPI camera/display transceivers
  • 1x PCIe 2.0 interface for fast peripherals
  • 30 GPIOs, supporting 1.8 V or 3.3 V operation
  • Peripherals: UART, SPI, I²C, I²S, SDIO, and PWM

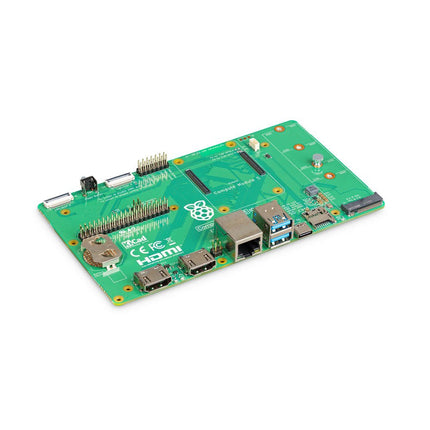

Compute Module 5 IO Board

  • 1x Standard 40-pin GPIO
  • 2x Full-size HDMI 2.0
  • 2x 4-lane MIPI DSI/CSI-2 FPC (22-pin, 0.5 mm pitch cable)
  • 2x USB 3.0
  • 1x Gigabit Ethernet jack with PoE+ support (requires a separate Raspberry Pi PoE+ HAT+)
  • 1x M.2 M-key PCIe socket (for 2230, 2242, 2260 and 2280 modules)
  • 1x microSD card socket (for use with Lite modules)
  • 1x RTC battery socket
  • 1x 4-pin fan connector

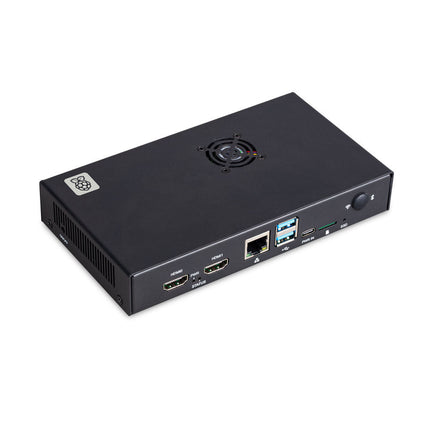

Compute Module 5 IO Case

The metal case transforms the IO Board into a fully enclosed, industrial-grade computer. Designed specifically for the Raspberry Pi Compute Module 5, the IO Case features a built-in fan that connects to the IO Board's 4-pin fan connector, ensuring enhanced thermal performance.

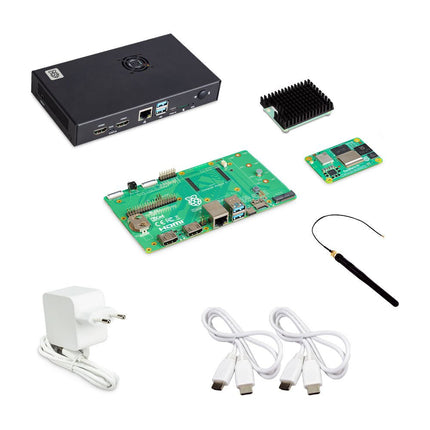

Included

  • 1x Raspberry Pi Compute Module 5 (Wireless, 4 GB RAM, 32 GB eMMC)
  • 1x Raspberry Pi Compute Module 5 IO Board (supplied pre-fitted inside the IO Case)
  • 1x Raspberry Pi Compute Module 5 IO Case

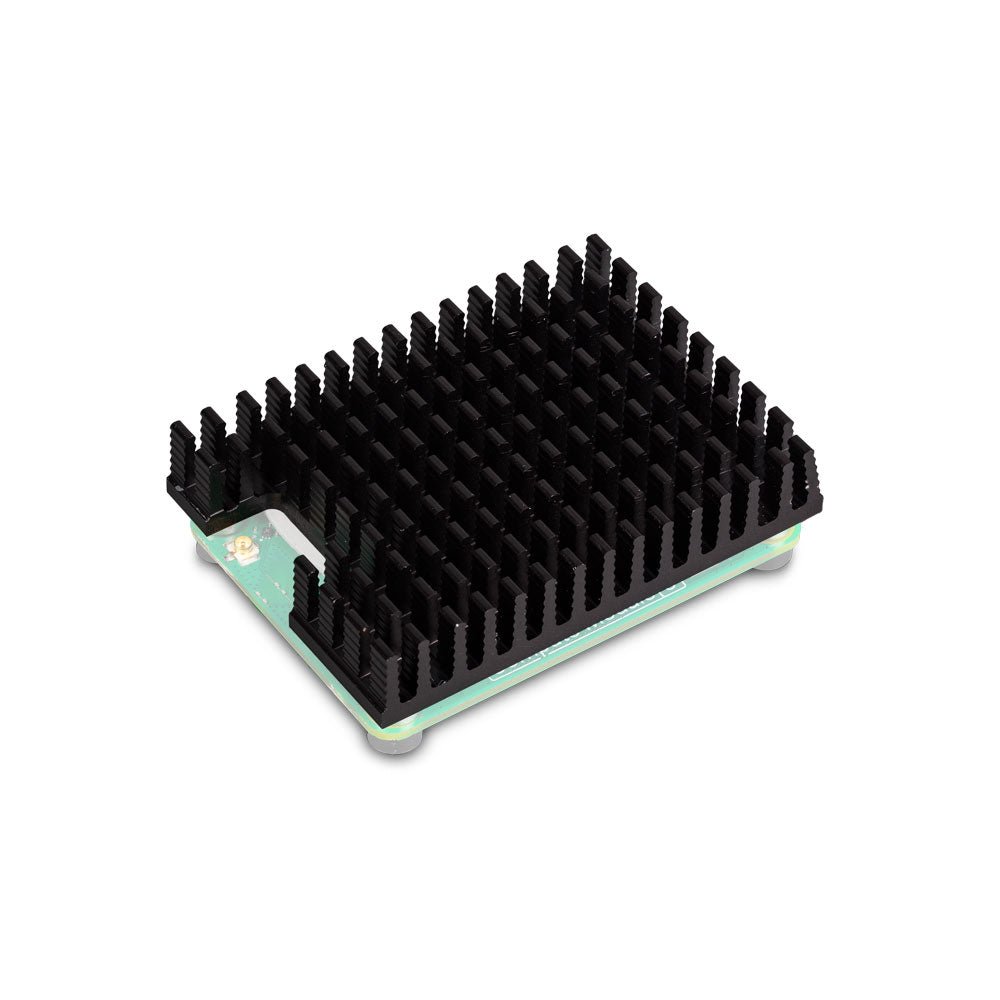

  • 1x Raspberry Pi Compute Module 5 Cooler
  • 1x Raspberry Pi Antenna Kit
  • 1x Raspberry Pi 27 W USB-C PD Power Supply (EU)
  • 2x Raspberry Pi HDMI to HDMI cables
  • 1x Raspberry Pi USB-A to USB-C cable

Downloads

Product form

The Raspberry Pi Compute Module 5 Development Kit provides an ideal platform for prototyping embedded solutions. This all-in-one kit contains... Read more

€ 149,95 incl. VAT
Members identical

      Details

      SKU: 21081
      EAN: 5056561805641

      Description

      Description

      The Raspberry Pi Compute Module 5 Development Kit provides an ideal platform for prototyping embedded solutions. This all-in-one kit contains the Compute Module 5, the Compute Module 5 IO Board and all necessary accessories to start your product design.

      Compute Module 5 (CM5104032)

      • 2.4 GHz quad-core 64-bit Arm Cortex-A76 CPU
      • VideoCore VII GPU, supporting OpenGL ES 3.1 and Vulkan 1.3
      • 4 GB LPDDR4X-4267 SDRAM
      • 32 GB MLC eMMC memory
      • 1x Dual 4Kp60 HDMI display output
      • 1x 4Kp60 HEVC decoder
      • 1x Dual-band 802.11ac Wi-Fi and Bluetooth 5.0
      • 2x USB 3.0 interfaces, supporting simultaneous 5 Gbps operation
      • 1x Gigabit Ethernet, with IEEE 1588 support
      • 2x 4-lane MIPI camera/display transceivers
      • 1x PCIe 2.0 interface for fast peripherals
      • 30 GPIOs, supporting 1.8 V or 3.3 V operation
      • Peripherals: UART, SPI, I²C, I²S, SDIO, and PWM

      Compute Module 5 IO Board

      • 1x Standard 40-pin GPIO
      • 2x Full-size HDMI 2.0
      • 2x 4-lane MIPI DSI/CSI-2 FPC (22-pin, 0.5 mm pitch cable)
      • 2x USB 3.0
      • 1x Gigabit Ethernet jack with PoE+ support (requires a separate Raspberry Pi PoE+ HAT+)
      • 1x M.2 M-key PCIe socket (for 2230, 2242, 2260 and 2280 modules)
      • 1x microSD card socket (for use with Lite modules)
      • 1x RTC battery socket
      • 1x 4-pin fan connector

      Compute Module 5 IO Case

      The metal case transforms the IO Board into a fully enclosed, industrial-grade computer. Designed specifically for the Raspberry Pi Compute Module 5, the IO Case features a built-in fan that connects to the IO Board's 4-pin fan connector, ensuring enhanced thermal performance.

      Included

      • 1x Raspberry Pi Compute Module 5 (Wireless, 4 GB RAM, 32 GB eMMC)
      • 1x Raspberry Pi Compute Module 5 IO Board (supplied pre-fitted inside the IO Case)
      • 1x Raspberry Pi Compute Module 5 IO Case
      • 1x Raspberry Pi Compute Module 5 Cooler
      • 1x Raspberry Pi Antenna Kit
      • 1x Raspberry Pi 27 W USB-C PD Power Supply (EU)
      • 2x Raspberry Pi HDMI to HDMI cables
      • 1x Raspberry Pi USB-A to USB-C cable

      Downloads

      Customer Reviews

      Based on 1 review
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      100%
      (1)
      D
      D.F.
      Mangelhaft

      Der mitgelieferte Kühlkörper sitzt nur ganz knapp auf der CPU. Wenn man die Schrauben nur leicht anzieht, kann man zwischen Wärmeleitpad und CPU durchschauen. Erst wenn man die Schrauben fest anzieht und etwas drückt, dann hat beides kontakt. Gut ist das nicht...
      Weiterhin ist das Gehäuse nicht mehr montierbar, wenn der Kühlkörper auf dem CM5 sitzt. Die Schrauben des Lüfters stoßen an. Man muss sich entscheiden: Lüfter oder Kühlkörper...
