Description

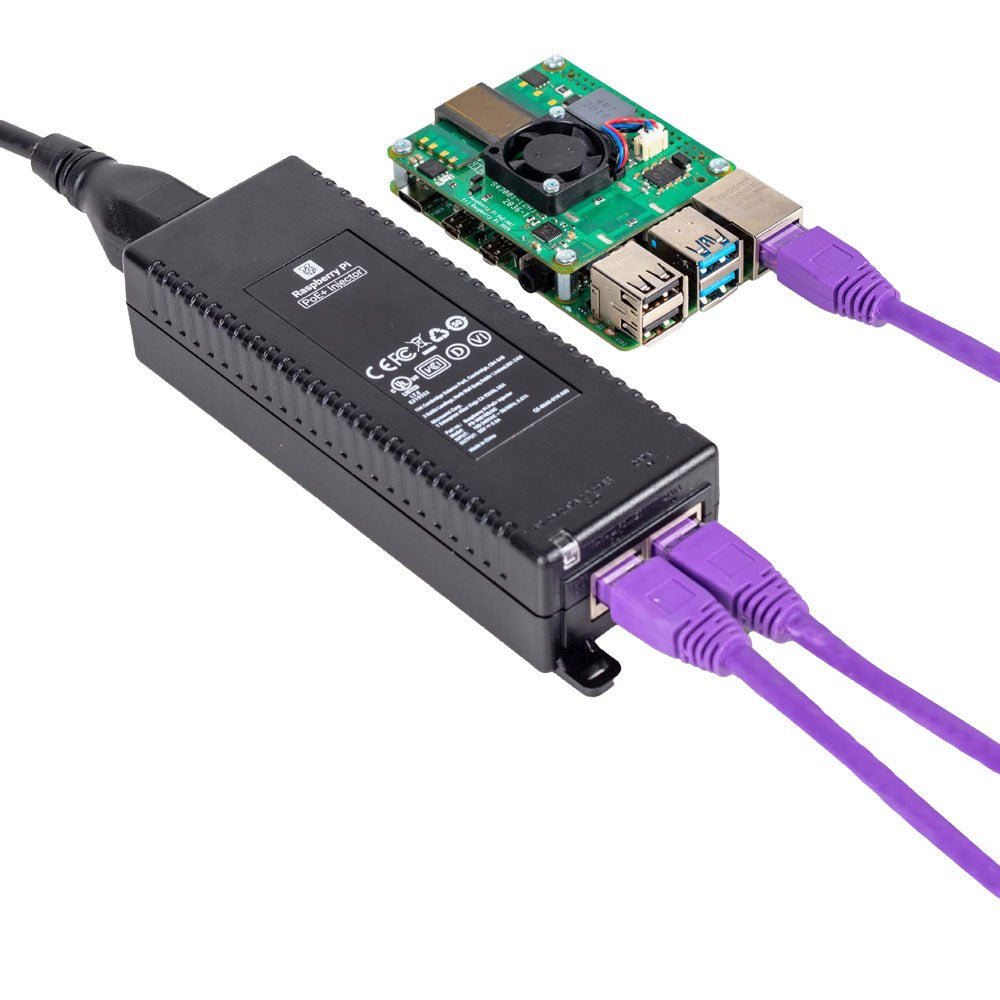

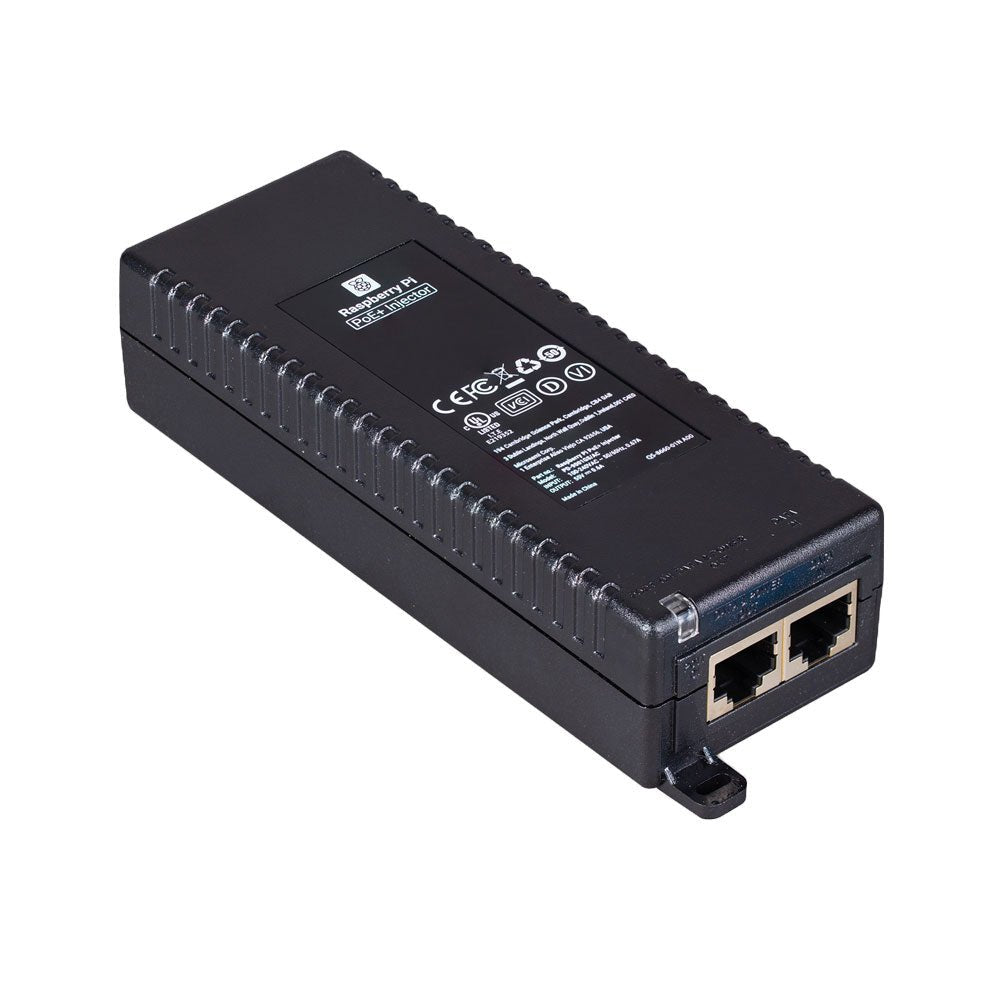

The Raspberry Pi PoE+ Injector adds Power-over-Ethernet (PoE) functionality to a single port of a non-PoE Ethernet switch, delivering both power and data through one Ethernet cable. It provides a plug-and-play, cost-effective solution for incrementally introducing PoE capability into existing Ethernet networks.
The PoE+ Injector is a single-port, 30 W device suitable for powering equipment compliant with IEEE 802.3af and 802.3at standards, including all generations of Raspberry Pi PoE HATs. It supports network pass-through speeds of 10/100/1000 Mbps.
Note: A separate IEC mains cable is required for operation (not included).
Specifications
| Data rate |
10/100/1000 Mbps |
| Input voltage |
100 to 240 V AC |
| Output power |
30 W |
| Power output on pins |
4/5 (+), 7/8 (–) |
| Nominal output voltage |
55 V DC |
| Data connectors |
Shielded RJ-45, EIA 568A and 568B |
| Power connector |
IEC c13 mains power input (not included) |
| Storage humidity |
Maximum 95%, non-condensing |
| Operating altitude |
–300 m to 3000 m |
| Operating ambient temperature |
10°C to +50°C |
| Dimensions |
159 x 51.8 x 33.5 mm |
