Description

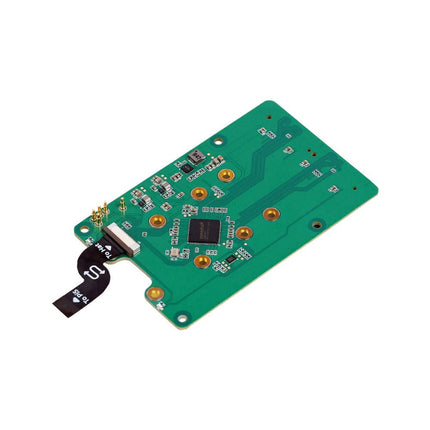

This PCIe 3.0 to dual M.2 HAT enables the Raspberry Pi 5 to access two NVMe SSDs, Hailo-8/8L (M.2 key B+M only), and Google Coral AI accelerators at PCIe 3.0 speeds.
Features
-
Dual M.2 Slots with PCIe 3.0 Speed: Utilizes the ASMedia ASM2806 PCIe 3.0 switch chip to ensure optimal performance, overcoming the limitations of PCIe 2.0.
-
Stable Power Supply: Additional pogo pins provide extra power to ensure a stable high-speed connection.
-
Multiple Size Support: Compatible with M.2 standard sizes 2230, 2242, 2260, and 2280.
-
Back-mounted Design: Keeps the 40-pin GPIO free for use, allowing compatibility with other Raspberry Pi HATs.
-
User-friendly Design: The S-shaped FPC cable does not obstruct the microSD card slot.
-
Open Source Case: Seeed’s M.2 HATs are not compatible with the official Raspberry Pi case, but an adapted 3D-printable case (STP file) is provided.
Applications
- Simultaneously supports AI acceleration and high-speed SSD storage
- Connects dual NVMe SSDs for large storage capacity
- Booting a Raspberry Pi from the SSD
Specifications
| M.2 Slots |
2 |
| Max. PCIe Speed |
PCIe Gen3.0 |
| PCIe Switch Chip |
ASM2806 |
| M.2 Size Support |
2280/2260/2242/2230 |
| Max. Power Supply |
5 V/3 A (max 3A: Pogo pin 2A + PCIe connector 1A) |
| Cable |
FPC |
| Assembly Method |
Back installation |
| Dimensions |
87 x 55 x 10 mm |
Included
- 1x Seeed Studio PCIe 3.0 to Dual M.2 HAT for Raspberry Pi 5
- 2x FPC cables (50 mm)
- 1x Screws & stud pack
