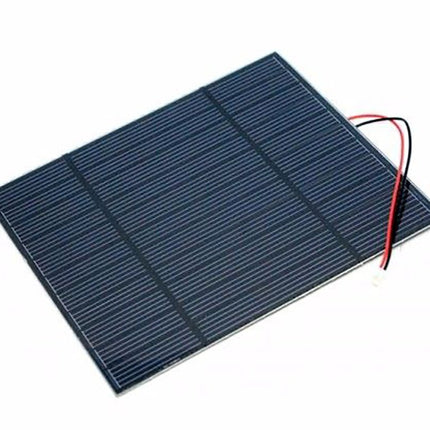

Seeed Studio Solar Panel for Outdoor Environments (3 W)

  • BrandSeeed Studio

Description

This solar panel is made of single-crystal material that transforms solar energy at an efficiency rate of 17%. Its resin surface and sturdy back make it suitable for outdoor environments. A 2 mm JST connector is attached to the penal, which makes it perfect for teaming up with most boards that support the use of solar power supply.

The typical open circuit voltage is around 5 V, depending on light intensity. In bright summer days with a clear sky, the peak open-circuit voltage can rush up to 10 V. To prevent any damage to a connected board that accepts a narrow range of input voltage; you should check whether the open-circuit voltage is safe before any connection.

Features

  • Dimensions: 160 x 138 x 2.5 mm
  • Typical voltage: 5.5 V
  • Typical current: 540 mA
  • Open-circuit voltage: 8.2 V
  • Maximum load voltage: 6.4 V
Product form

This solar panel is made of single-crystal material that transforms solar energy at an efficiency rate of 17%. Its resin... Read more

€ 19,95 incl. VAT
Members € 17,96

    • Ship today? Order within Nov 21, 2024 17:00:00 +0100

    Details

    SKU: 19131
    EAN: 313070001

    Description

    This solar panel is made of single-crystal material that transforms solar energy at an efficiency rate of 17%. Its resin surface and sturdy back make it suitable for outdoor environments. A 2 mm JST connector is attached to the penal, which makes it perfect for teaming up with most boards that support the use of solar power supply.

    The typical open circuit voltage is around 5 V, depending on light intensity. In bright summer days with a clear sky, the peak open-circuit voltage can rush up to 10 V. To prevent any damage to a connected board that accepts a narrow range of input voltage; you should check whether the open-circuit voltage is safe before any connection.

    Features

    • Dimensions: 160 x 138 x 2.5 mm
    • Typical voltage: 5.5 V
    • Typical current: 540 mA
    • Open-circuit voltage: 8.2 V
    • Maximum load voltage: 6.4 V
