Description

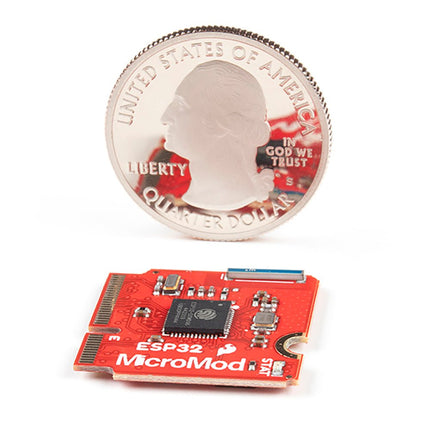

With the M.2 MicroMod connector, connecting your ESP32 Processor is a breeze. Match up the key on your processor's bevelled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). If you need to swap out your processor for a strong wireless option, make sure to check out the MicroMod ESP32!
The ESP32 includes a laundry list of functionality, including the dual-core Tensilica LX6 microprocessor, 240MHz clock frequency, 520kB internal SRAM, integrated WiFi transceiver, integrated dual-mode Bluetooth, and hardware-accelerated encryption (AES, SHA2, ECC, RSA-4096). With this MicroMod processor board, you have access to 8 general use IO pins, dedicated analogue, digital, and PWM pins, as well as all the fan favourites - SPI, I²C, UART, and SDIO. Add to that 16MB flash storage and sleep current of around 500µA, and you've got a perfect storm of versatility.
Features
- Dual-core Tensilica LX6 microprocessor
- Up to 240 MHz clock frequency
- 520 kB internal SRAM
- 128 mbit / 16 MB flash storage
- Integrated 802.11 BGN WiFi transceiver
- Integrated dual-mode Bluetooth (classic and BLE)
- 2.7-3.6 V operating range
- 500µA sleep current under hibernation
- 10-electrode capacitive touch support
- Hardware-accelerated encryption (AES, SHA2, ECC, RSA-4096)
- 1x USB dedicated for programming and debugging
- 1x UART
- 2x I²C
- 1x SPI
- 7x GPIO
- 2x Digital Pins
- 2x Analog Pins
- 2x PWM
- Status LED
- VIN Level ADC
