Description

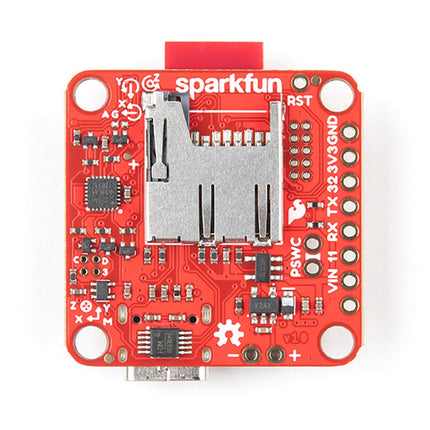

Included on every OpenLog Artemis is an IMU for built-in logging of triple-axis accelerometer, gyro, and magnetometer. The OpenLog Artemis uses the latest ICM-20948 from InvenSense capable of nearly 250Hz logging of all nine axes. Simply power up the OpenLog Artemis and all incoming serial data is automatically recorded to a log file with baud rates up to 500000bps, supported! The OLA also has four ADC channels available on the edge of the board. Voltages up to 2 V can be logged with 14-bit precision up to 1900 Hz for one channel and 1000Hz logging all four channels. Additionally, based on feedback from users we've added an on-board RTC so that all data can be time stamped.
The OpenLog Artemis is highly configurable over an easy to use the serial interface. Simply plug in a USB-C cable and open a terminal at 115200 bps. The logging output is automatically streamed to both the terminal and the microSD. Pressing any key will open the configuration menu.
The OpenLog Artemis automatically scans, detects, configures, and logs various Qwiic sensors plugged into the board (No soldering! No programming!).
This OpenLog uses common microSD cards to record clear text, comma-separated files. You probably already have a microSD card laying around but if you need any additional units to see the related items below. The OpenLog Artemis supports microSD cards formatted as FAT32 as well as the older FAT16 formats up to 32GB. Currently, the OpenLog Artemis does not support microSD cards formatted with exFAT.
Very low power logging is supported. OpenLog Artemis can be configured to take readings at 500 times a second, or as slow as 1 reading every 24 hours. You choose! When there is more than 2 seconds between readings OLA will automatically power down itself and the sensors on the bus resulting in a sleep current of approximately 18uA. This means a normal 2Ah battery will enable logging for more than 4,000 days! OpenLog Artemis has built-in LiPo charging set at 450 mA/hr.
New features are constantly being added so SparkFun has released an easy to use firmware upgrade tool. No need to install Arduino or a bunch of libraries, simply open the Artemis Firmware Upload GUI, load the latest OLA firmware, and add features to OpenLog Artemis as they come out!
Features
- Artemis Module (Cortex-M4F based Apollo3 microcontroller)
- Configurable via CH340E and Artemis Firmware Upload GUI
- Operating voltage range
- 3.3 V to 6.5 V (via VIN with optional external power switch)
- 5 V with USB (via 5 V or USB type C)
- 3.6 V to 4.2 V with LiPo battery (via VBATT or 2-pin JST)
- Built-in MCP73831 single cell LiPo charger
- Minimum 450mA charge rate
- 3.3 V (via 3V3)
- Current consumption
- ~20 mA (Run)
- ~80 µA (Sleep)
- ~18 µA (Deep Sleep - regulator shut down)
- Ports
- 1 x USB type C
- 1 x LiPo battery enabled
- 1 x Qwiic enabled I²C with power control
- 1 x SWD 2x5 header
- 4 x Analog-to-digital
- 14-bit, up to 1900 Hz, 2 V max (3.3 V compatible)
- Serial
- Logging speeds up to 500000bps
- 1 x microSD socket
- Support for FAT32 and older FAT16 formats up to 32GB with power control
- RTC with 1mAhr battery backup
- 9-axis IMU logging up to 250 Hz
- ICM-20948 via SPI interface
- LEDs
- Power
- LiPo charge indicator
- Serial Tx and Rx
- Status
