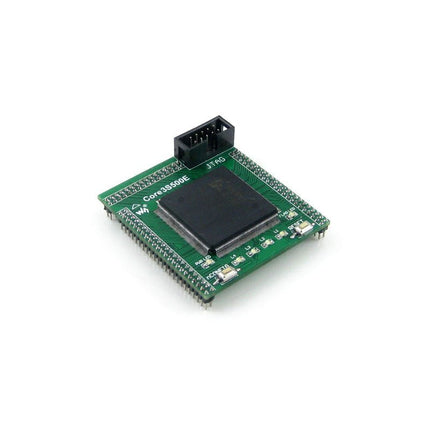

Waveshare Core3S500E (XILINX Core Board)

  • BrandWaveshare

Description

Waveshare Core3S500E is an FPGA core board that features an XC3S500E device onboard supporting further expansion.

Features

  • Onboard 1x XCF04S
  • Integrated FPGA basic circuit, such as clock circuit
  • Onboard nCONFIG button, RESET button, 4x LEDs
  • All the I/O ports are accessible on the pin headers
  • Onboard JTAG debugging/programming interface
  • 2.0 mm header pitch design, suitable for being plugged-in your application system

Downloads

Product form

Waveshare Core3S500E is an FPGA core board that features an XC3S500E device onboard supporting further expansion. Features Onboard 1x XCF04S... Read more

2 in stock

€ 94,95 incl. VAT
Members € 85,46

      Details

      SKU: 20660
      EAN: 6692

      Description

      Waveshare Core3S500E is an FPGA core board that features an XC3S500E device onboard supporting further expansion.

      Features

      • Onboard 1x XCF04S
      • Integrated FPGA basic circuit, such as clock circuit
      • Onboard nCONFIG button, RESET button, 4x LEDs
      • All the I/O ports are accessible on the pin headers
      • Onboard JTAG debugging/programming interface
      • 2.0 mm header pitch design, suitable for being plugged-in your application system

      Downloads
