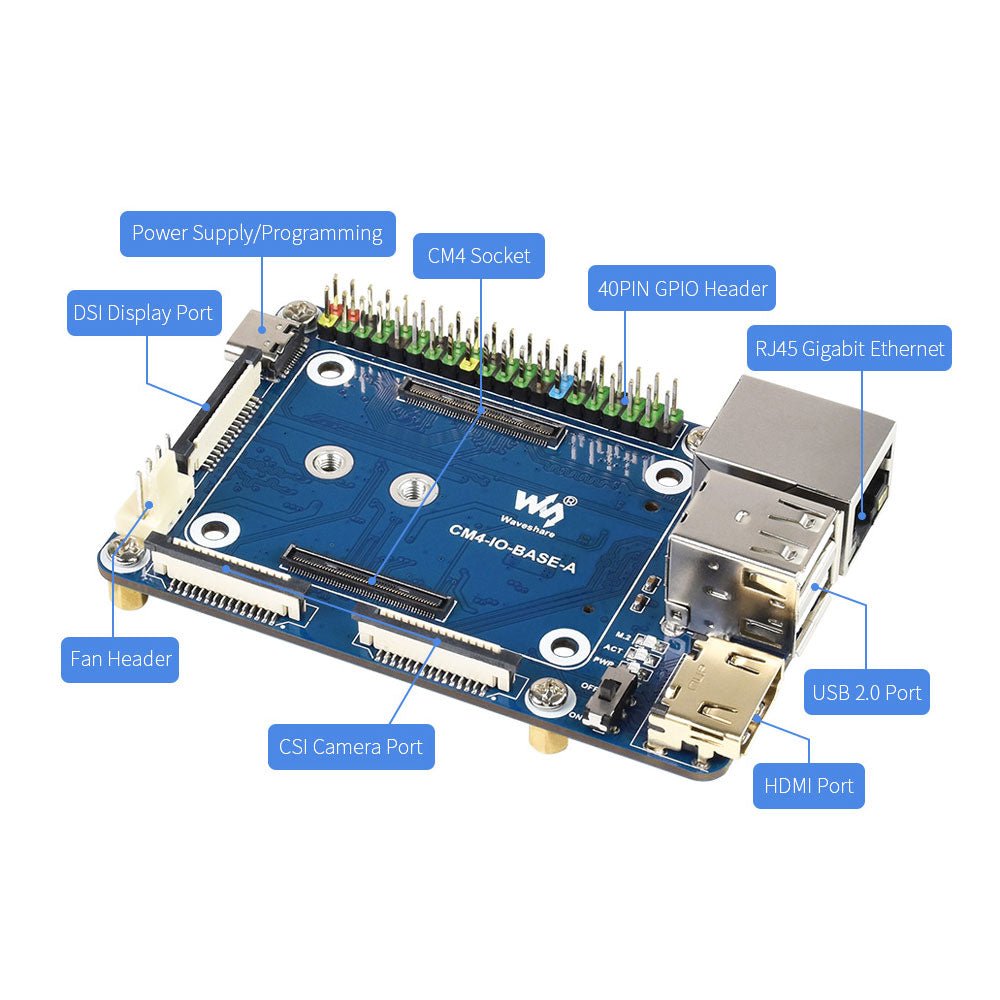

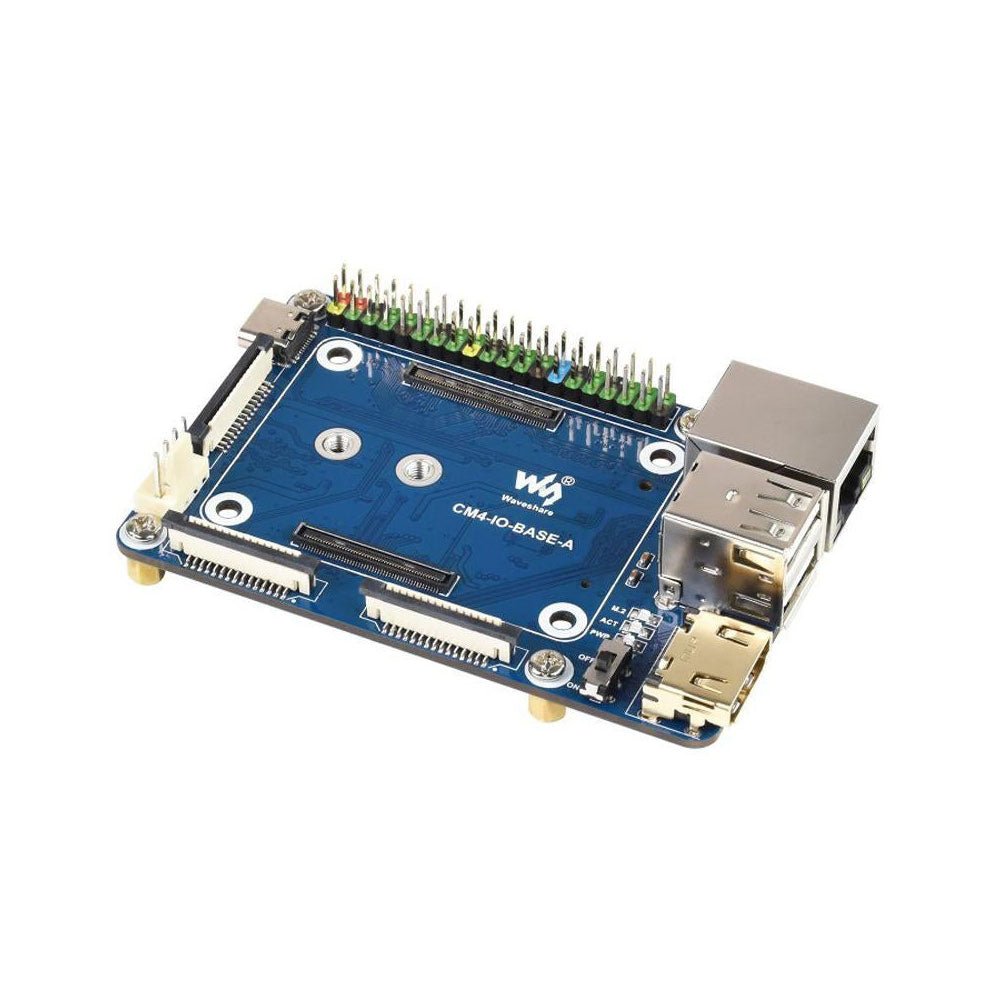

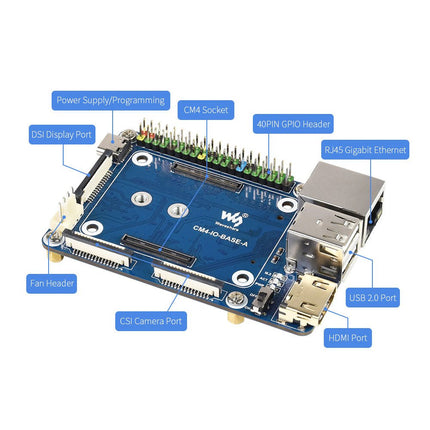

Waveshare Mini Base Board (A) for Raspberry Pi Compute Module 4

  • BrandWaveshare

Description

Specifications

CM4 socket Suitable for all variants of Compute Module 4
Networking Gigabit Ethernet RJ45 connector
M.2 M KEY, supports communication modules or NVME SSD
Connector Raspberry Pi 40-PIN GPIO header
USB 2x USB 2.0 Type A
2x USB 2.0 via FFC connector
Display MIPI DSI display port (15-pin 1.0 mm FPC connector)
Camera 2x MIPI CSI-2 camera port (15-pin 1.0 mm FPC connector)
Video 2x HDMI port (including one port via FFC connector), supports 4K 30fps output
RTC N/A
Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header No fan control, 5 V
Power input 5 V
Dimensions 85 x 56 mm

Included

  • 1x CM4-IO-BASE-A
  • 1x SSD mounting screw

Downloads

Product form

Specifications CM4 socket Suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connectorM.2 M KEY, supports communication... Read more

€ 24,95€ 19,95 incl. VAT
Members identical

      Details

      SKU: 20037
      EAN: 19887

      Description

      Specifications

      CM4 socket Suitable for all variants of Compute Module 4
      Networking Gigabit Ethernet RJ45 connector
      M.2 M KEY, supports communication modules or NVME SSD
      Connector Raspberry Pi 40-PIN GPIO header
      USB 2x USB 2.0 Type A
      2x USB 2.0 via FFC connector
      Display MIPI DSI display port (15-pin 1.0 mm FPC connector)
      Camera 2x MIPI CSI-2 camera port (15-pin 1.0 mm FPC connector)
      Video 2x HDMI port (including one port via FFC connector), supports 4K 30fps output
      RTC N/A
      Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
      Fan header No fan control, 5 V
      Power input 5 V
      Dimensions 85 x 56 mm

      Included

      • 1x CM4-IO-BASE-A
      • 1x SSD mounting screw

      Downloads
