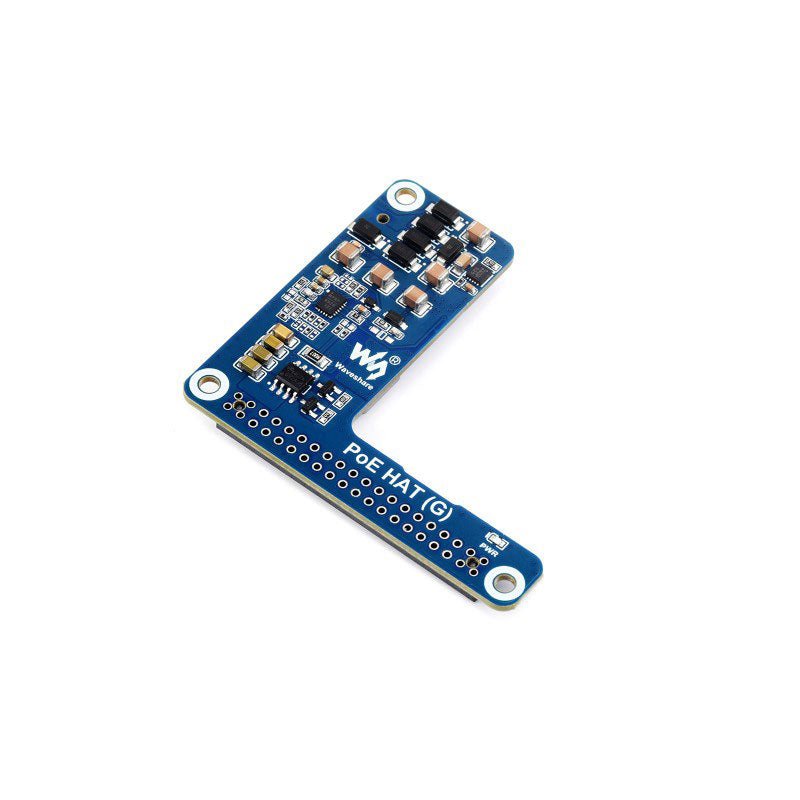

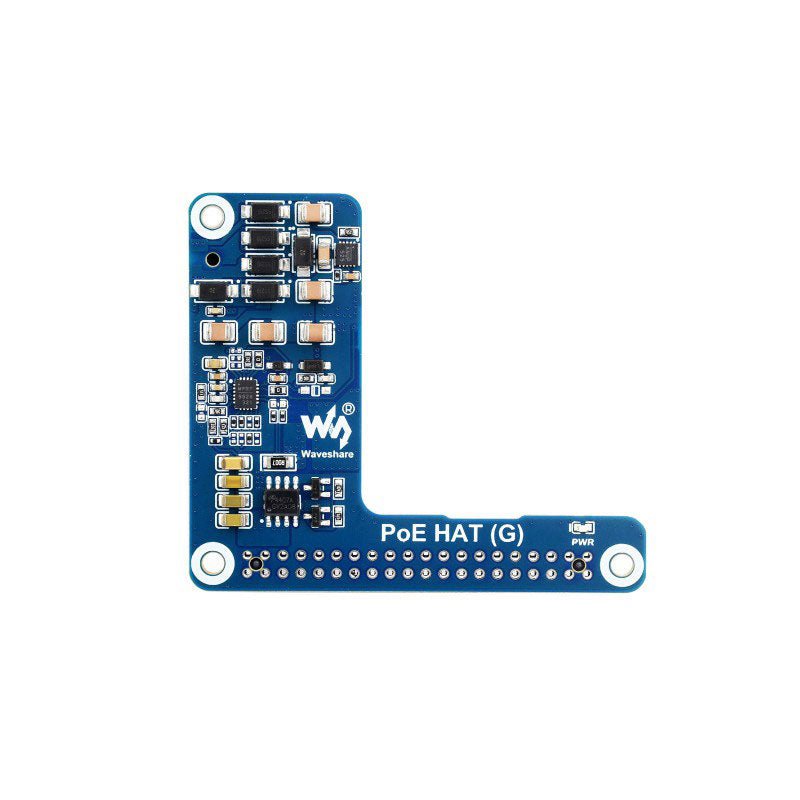

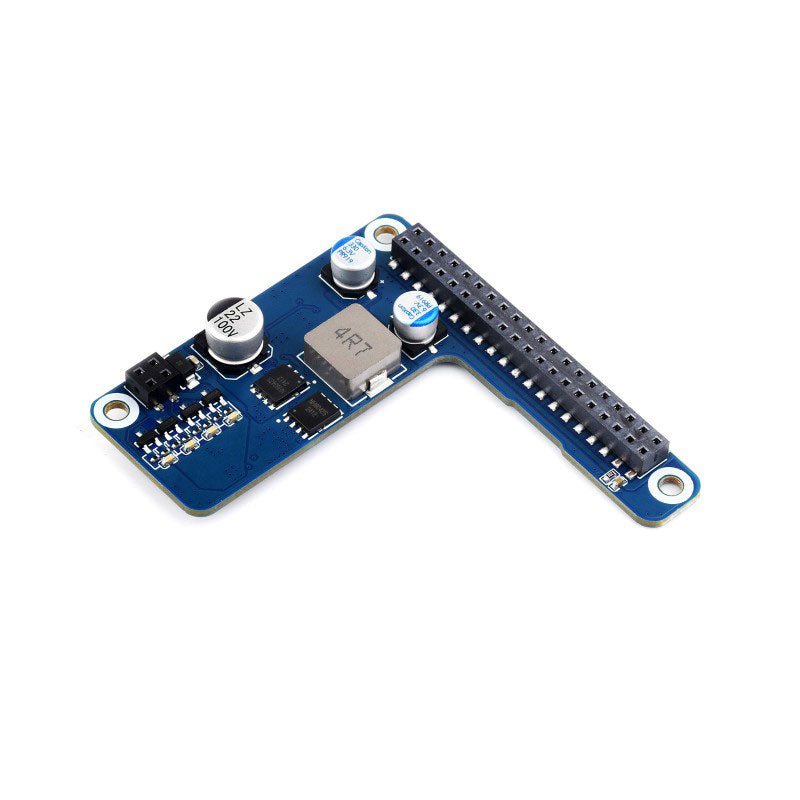

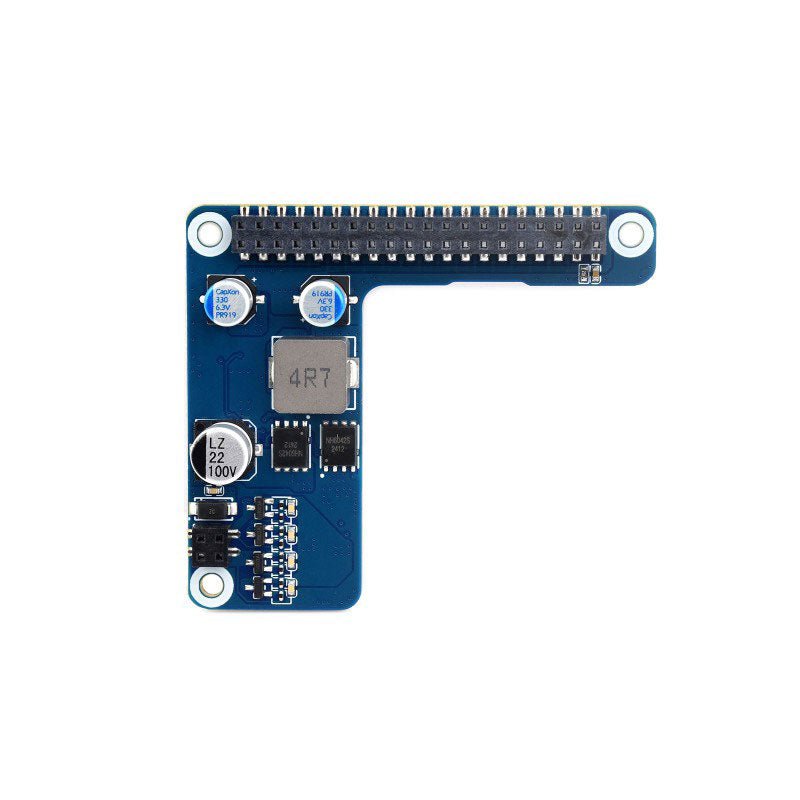

Waveshare PoE HAT (G) for Raspberry Pi 5

  • BrandWaveshare

Description

The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Features

  • Standard Raspberry Pi 40-pin GPIO header
  • PoE capability, IEEE 802.3af/at-compliant
  • Onboard original IC solution for more stable PoE power performance
  • Adopts non-isolated switched-mode power supply (SMPS)

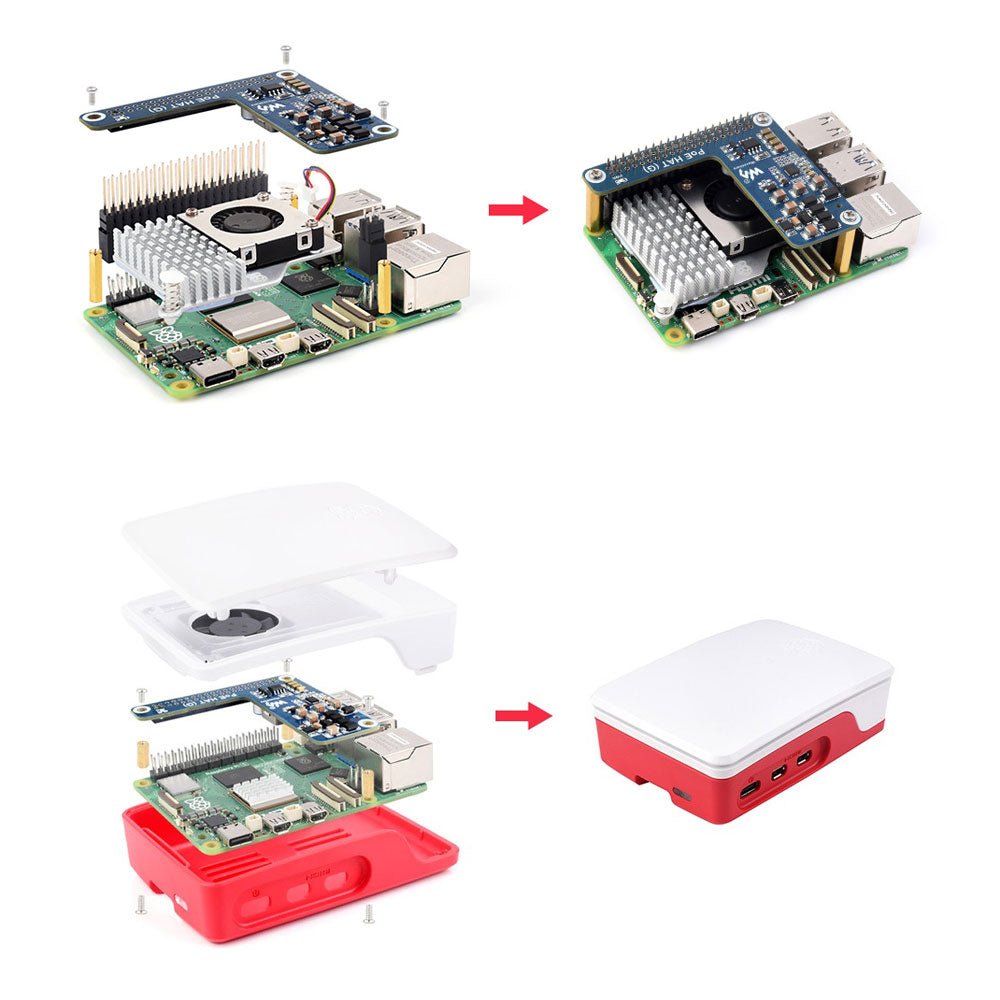

  • Compact and easy to assemble

Specifications

PoE power input 38~57 V DC in
Power output GPIO header: 5 V/5 A (max)
Network standard IEEE 802.3af/at PoE
Dimensions 56.5 x 64.98 mm

Included

  • 1x PoE HAT (G)
  • 1x 2x2 header
  • 1x 2x20 header
  • 1x Standoffs pack

Downloads

Product form

The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5. By using with a PoE... Read more

€ 24,95 incl. VAT
Members € 22,46

    • Ship today? Order within Dec 12, 2024 17:00:00 +0100

    Details

    SKU: 20999
    EAN: 27670

    Description

    The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

    Features

    • Standard Raspberry Pi 40-pin GPIO header
    • PoE capability, IEEE 802.3af/at-compliant
    • Onboard original IC solution for more stable PoE power performance
    • Adopts non-isolated switched-mode power supply (SMPS)
    • Compact and easy to assemble

    Specifications

    PoE power input 38~57 V DC in
    Power output GPIO header: 5 V/5 A (max)
    Network standard IEEE 802.3af/at PoE
    Dimensions 56.5 x 64.98 mm

    Included

    • 1x PoE HAT (G)
    • 1x 2x2 header
    • 1x 2x20 header
    • 1x Standoffs pack

    Downloads
