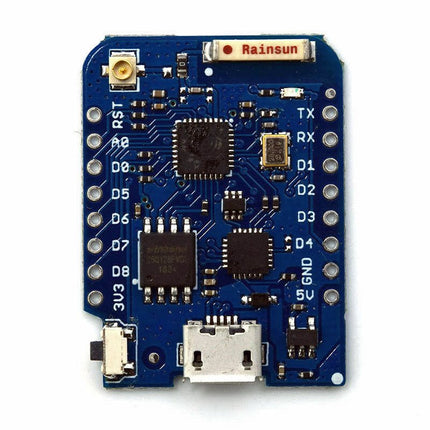

WeMos D1 mini Pro - ESP8266 based WiFi Module

Description

This mini WiFi board has 16 MB flash, external antenna connector and built-in ceramic antenna based on ESP8266EX.

Features

  • 11 digital input/output pins
  • Interrupt/pwm/I²C/one-wire
  • 1 analog input (3.2 V max input)
  • 16 MB Flash
  • External antenna connector
  • Built-in ceramic antenna
  • CP2104 USB-TO-UART IC

Specifications

Operating Voltage 3.3 V
Digital I/O Pins 11
Analog Input Pins 1 (3.2 V max)
Clock Speed 80/160 MHz
Flash 16 MB
Size 34.2 x 25.6 mm
Weight 3 g

Pin Configuration

Pin Function ESP8266 Pin
RX RXD RXD
A0 Analog input, max 3.2 V A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO, 10k Pull-up GPIO0
D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO, 10k Pull-down, SS GPIO15
G Ground GND
5V 5 V -
3V3 3.3 V 3.3 V
RST Reset RST

Included

  • 1x WeMos D1 mini Pro (based on ESP8266EX)
  • 2x Pin header (short)
  • 2x Female connector strip (short)
  • 2x Female connector strip (long)
Product form

This mini WiFi board has 16 MB flash, external antenna connector and built-in ceramic antenna based on ESP8266EX. Features 11... Read more

€ 14,95 incl. VAT
Members € 13,46

    • Ship today? Order within Nov 16, 2024 17:00:00 +0100

    Details

    SKU: 19185
    EAN: 019185

    Description

    This mini WiFi board has 16 MB flash, external antenna connector and built-in ceramic antenna based on ESP8266EX.

    Features

    • 11 digital input/output pins
    • Interrupt/pwm/I²C/one-wire
    • 1 analog input (3.2 V max input)
    • 16 MB Flash
    • External antenna connector
    • Built-in ceramic antenna
    • CP2104 USB-TO-UART IC

    Specifications

    Operating Voltage 3.3 V
    Digital I/O Pins 11
    Analog Input Pins 1 (3.2 V max)
    Clock Speed 80/160 MHz
    Flash 16 MB
    Size 34.2 x 25.6 mm
    Weight 3 g

    Pin Configuration

    Pin Function ESP8266 Pin
    RX RXD RXD
    A0 Analog input, max 3.2 V A0
    D0 IO GPIO16
    D1 IO, SCL GPIO5
    D2 IO, SDA GPIO4
    D3 IO, 10k Pull-up GPIO0
    D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
    D5 IO, SCK GPIO14
    D6 IO, MISO GPIO12
    D7 IO, MOSI GPIO13
    D8 IO, 10k Pull-down, SS GPIO15
    G Ground GND
    5V 5 V -
    3V3 3.3 V 3.3 V
    RST Reset RST

    Included

    • 1x WeMos D1 mini Pro (based on ESP8266EX)
    • 2x Pin header (short)
    • 2x Female connector strip (short)
    • 2x Female connector strip (long)
